SS314MAH Series

Catalog

SLIDE SWITCH, SPDT, ON-OFF-ON, SURFACE MOUNT, 100 MA, 28 V

Part	Switch Travel	Electrical Life	Mechanical Life	Actuator Material	Contact Timing	Voltage Rating - DC	Switch Function	Actuator Type	Current Rating (Amps)	Voltage Rating - AC	Termination Style	Actuator Length [x]	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Circuit	Contact Finish

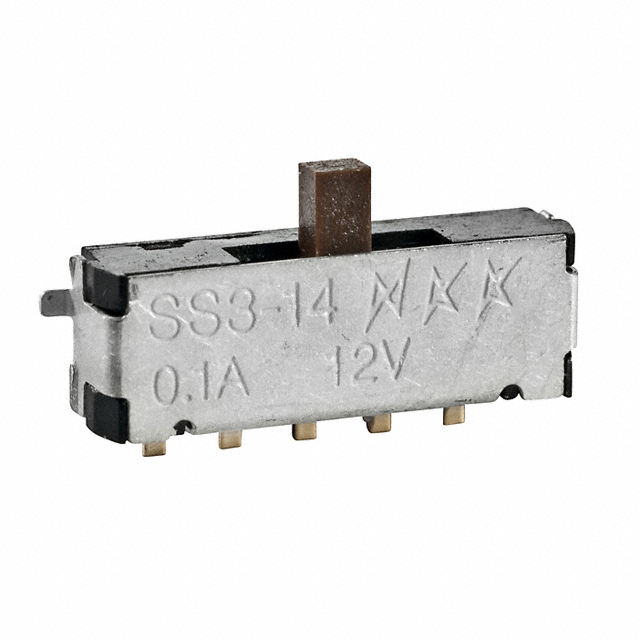

NKK Switches SS314MAH4	2 mm	10000 Cycles	10000 Steps	Polyphenylene Sulfide (PPS)	Non-Shorting (BBM)	28 V	On-Off-On On-On-On	Standard	0.4 VA	28 V	Gull Wing	2 mm	Phosphor Bronze	85 °C	-25 °C	Right Angle Surface Mount	SPDT	Gold
NKK Switches SS314MAH4-R	2 mm	10000 Cycles	10000 Steps	Polyphenylene Sulfide (PPS)	Non-Shorting (BBM)	28 V	On-Off-On On-On-On	Standard	0.4 VA	28 V	Gull Wing	2 mm	Phosphor Bronze	85 °C	-25 °C	Right Angle Surface Mount	SPDT	Gold
