OPA564-Q1 Series

Automotive 1.5A, 24V, 17MHz, Power Operational Amplifier

Catalog

Automotive 1.5A, 24V, 17MHz, Power Operational Amplifier

Part	Current - Supply	Number of Circuits	Mounting Type	Supplier Device Package	Voltage - Supply Span (Min) [Min]	Current - Input Bias	Gain Bandwidth Product	Amplifier Type	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Slew Rate	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	Package / Case [diameter]	Package / Case	Grade	Qualification

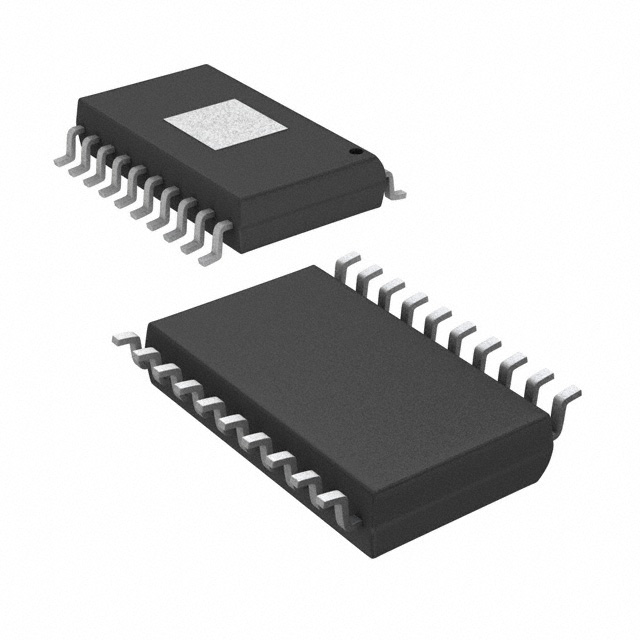

Texas Instruments OPA564AIDWDR	39 mA	1	Surface Mount	20-HSOP	7 V	10 pA	17 MHz	General Purpose	1.5 A	85 °C	-40 °C	40 V/çs	2 mV	24 V	7.5 mm	20-SOIC
Texas Instruments OPA564AIDWD	39 mA	1	Surface Mount	20-HSOP	7 V	10 pA	17 MHz	General Purpose	1.5 A	85 °C	-40 °C	40 V/çs	2 mV	24 V	7.5 mm	20-SOIC
Texas Instruments OPA564AIDWPR	39 mA	1	Surface Mount	20-HSOIC	7 V	10 pA	17 MHz	General Purpose	1.5 A	85 °C	-40 °C	40 V/çs	2 mV	24 V	7.5 mm	20-SOIC
Texas Instruments OPA564AQDWPRQ1	39 mA	1	Surface Mount	20-HSOIC	7 V	10 pA	17 MHz	General Purpose	1.5 A	125 °C	-40 °C	40 V/çs	2 mV	24 V	7.5 mm	20-SOIC	Automotive	AEC-Q100
Texas Instruments OPA564AIDWP	39 mA	1	Surface Mount	20-HSOIC	7 V	10 pA	17 MHz	General Purpose	1.5 A	85 °C	-40 °C	40 V/çs	2 mV	24 V	7.5 mm	20-SOIC

Catalog

Automotive 1.5A, 24V, 17MHz, Power Operational Amplifier

Key Features

• HIGH OUTPUT CURRENT: 1.5AWIDE POWER-SUPPLY RANGE:Single Supply: +7V to +24VDual Supply: ±3.5V to ±12VLARGE OUTPUT SWING: 20VPPat 1.5AFULLY PROTECTED:THERMAL SHUTDOWNADJUSTABLE CURRENT LIMITDIAGNOSTIC FLAGS:OVER-CURRENTTHERMAL SHUTDOWNOUTPUT ENABLE/SHUTDOWNCONTROLHIGH SPEED:GAIN-BANDWIDTH PRODUCT: 17MHzFULL-POWER BANDWIDTH AT 10VPP: 1.3MHzSLEW RATE: 40V/µsDIODE FOR JUNCTION TEMPERATURE MONITORINGHSOP-20 PowerPAD PACKAGE(Bottom- and Top-Side Thermal Pad Versions)APPLICATIONSPOWERLINE COMMUNICATIONSVALVE, ACTUATOR DRIVERVCOMDRIVERMOTOR DRIVERAUDIO POWER AMPLIFIERPOWER-SUPPLY OUTPUT AMPLIFIERTEST EQUIPMENT AMPLIFIERTRANSDUCER EXCITATIONLASER DIODE DRIVERGENERAL-PURPOSE LINEAR POWER BOOSTERPowerPAD is a trademark of Texas Instruments, Inc.All other trademarks are the property of their respective owners.HIGH OUTPUT CURRENT: 1.5AWIDE POWER-SUPPLY RANGE:Single Supply: +7V to +24VDual Supply: ±3.5V to ±12VLARGE OUTPUT SWING: 20VPPat 1.5AFULLY PROTECTED:THERMAL SHUTDOWNADJUSTABLE CURRENT LIMITDIAGNOSTIC FLAGS:OVER-CURRENTTHERMAL SHUTDOWNOUTPUT ENABLE/SHUTDOWNCONTROLHIGH SPEED:GAIN-BANDWIDTH PRODUCT: 17MHzFULL-POWER BANDWIDTH AT 10VPP: 1.3MHzSLEW RATE: 40V/µsDIODE FOR JUNCTION TEMPERATURE MONITORINGHSOP-20 PowerPAD PACKAGE(Bottom- and Top-Side Thermal Pad Versions)APPLICATIONSPOWERLINE COMMUNICATIONSVALVE, ACTUATOR DRIVERVCOMDRIVERMOTOR DRIVERAUDIO POWER AMPLIFIERPOWER-SUPPLY OUTPUT AMPLIFIERTEST EQUIPMENT AMPLIFIERTRANSDUCER EXCITATIONLASER DIODE DRIVERGENERAL-PURPOSE LINEAR POWER BOOSTERPowerPAD is a trademark of Texas Instruments, Inc.All other trademarks are the property of their respective owners.

Description

The OPA564 is a low-cost, high-current operational amplifier that is ideal for driving up to 1.5A into reactive loads. The high slew rate provides 1.3MHz full-power bandwidth and excellent linearity. These monolithic integrated circuits provide high reliability in demanding powerline communications and motor control applications. The OPA564 operates from a single supply of 7V to 24V, or dual power supplies of ±3.5V to ±12V. In single-supply operation, the input common-mode range extends to the negative supply. At maximum output current, a wide output swing provides a 20VPP(IOUT= 1.5A) capability with a nominal 24V supply. The OPA564 is internally protected against over-temperature conditions and current overloads. It is designed to provide an accurate, user-selected current limit. Two flag outputs are provided; one indicates current limit and the second shows a thermal over-temperature condition. It also has an Enable/Shutdownpin that can be forced low to shut down the output, effectively disconnecting the load. The OPA564 is housed in a thermally-enhanced, surface-mount PowerPAD™ package (HSOP-20) with the choice of the thermal pad on either the top side or the bottom side of the package. Operation for both versions is specified over the industrial temperature range, –40°C to +85°C. The OPA564 is a low-cost, high-current operational amplifier that is ideal for driving up to 1.5A into reactive loads. The high slew rate provides 1.3MHz full-power bandwidth and excellent linearity. These monolithic integrated circuits provide high reliability in demanding powerline communications and motor control applications. The OPA564 operates from a single supply of 7V to 24V, or dual power supplies of ±3.5V to ±12V. In single-supply operation, the input common-mode range extends to the negative supply. At maximum output current, a wide output swing provides a 20VPP(IOUT= 1.5A) capability with a nominal 24V supply. The OPA564 is internally protected against over-temperature conditions and current overloads. It is designed to provide an accurate, user-selected current limit. Two flag outputs are provided; one indicates current limit and the second shows a thermal over-temperature condition. It also has an Enable/Shutdownpin that can be forced low to shut down the output, effectively disconnecting the load. The OPA564 is housed in a thermally-enhanced, surface-mount PowerPAD™ package (HSOP-20) with the choice of the thermal pad on either the top side or the bottom side of the package. Operation for both versions is specified over the industrial temperature range, –40°C to +85°C.
