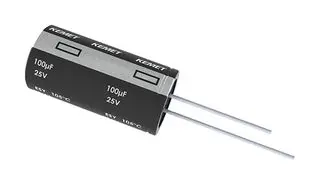

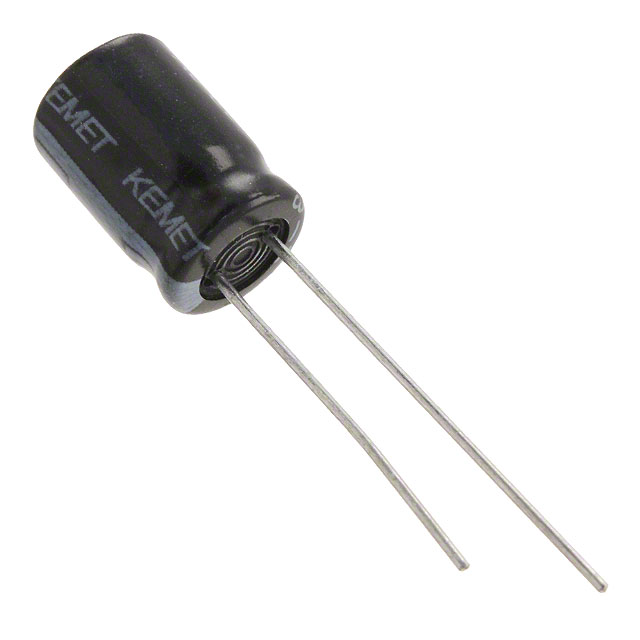

ESY107M Series
Manufacturer: KEMET
Beta
⌘K
ELEC CAP, 100UF, 35V, RADIAL LEADED ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Ripple Current @ Low Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Applications | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Package / Case | Capacitance | Polarization | Mounting Type | Voltage - Rated | Impedance | Lead Spacing | Lead Spacing | Tolerance | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | -40 C | 105 ░C | 434 mA | 0.315 in | 8 mm | 0.492 in | 12.5 mm | General Purpose | 105 mOhm | 3000 Hrs | Can Radial | 100 µF | Polar | Through Hole | 35 V | 105 mOhms | 0.138 in | 3.5 mm | 20 % | 620 mA |
 KEMET | -40 C | 105 ░C | 511 mA | 0.315 in | 8 mm | 0.492 in | 12.5 mm | General Purpose | 74 mOhm | 3000 Hrs | Can Radial | 100 µF | Polar | Through Hole | 50 VDC | 74 mOhms | 0.138 in | 3.5 mm | 20 % | 730 mA |
