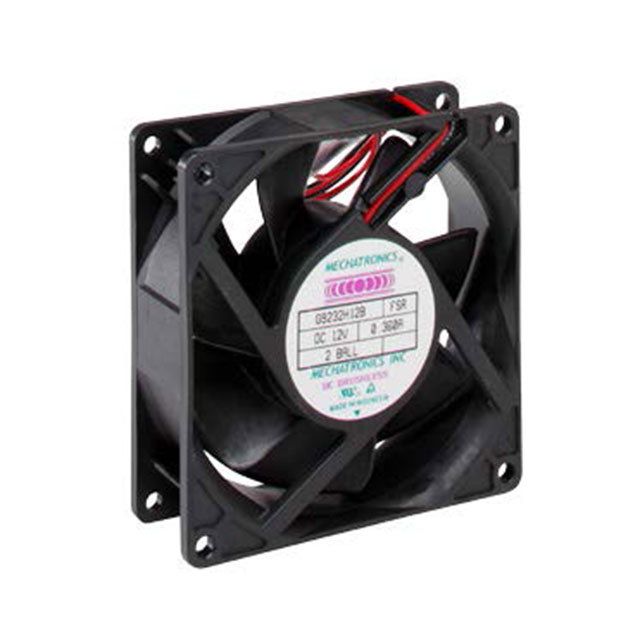

G9232X Series

Catalog

FAN AXIAL 92X32MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Voltage - Rated	Air Flow	Air Flow	Width [y]	Static Pressure	Static Pressure	Bearing Type	RPM	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Features	Approval Agency	Fan Type	Termination	Noise	Ingress Protection
Mechatronics Fan Group G9232X12B2-FSR	0.68 A	Polybutylene Terephthalate (PBT)	12 VDC	1.9 m³/min	68 CFM	32 mm	0.33 in H2O	82.2 Pa	Ball	4000 RPM	92 mm	92 mm	151.95 g	0.335 lb	Locked Rotor Sensor Thermal Overload Protector (TOP)	CE cUL TUV UL	Tubeaxial	3 Wire Leads	44 dB(A)

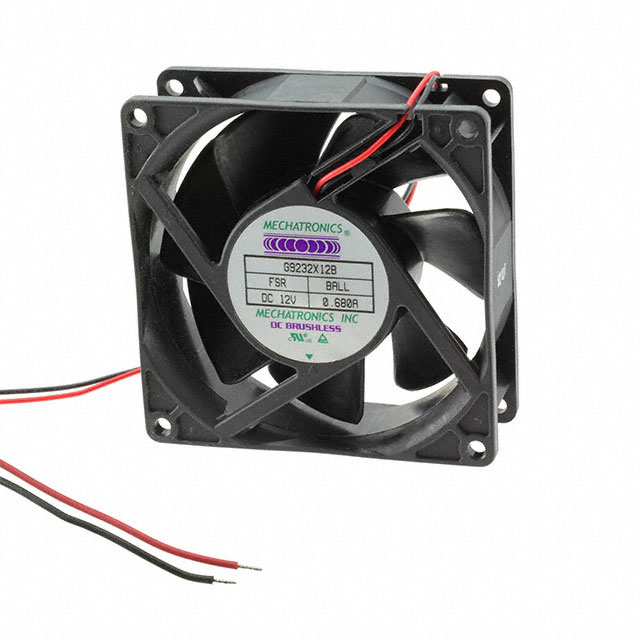

Mechatronics Fan Group G9232X12B-FSR	0.68 A	Polybutylene Terephthalate (PBT)	12 VDC	1.9 m³/min	68 CFM	32 mm	0.33 in H2O	82.2 Pa	Ball	4000 RPM	92 mm	92 mm	151.95 g	0.335 lb	Thermal Overload Protector (TOP)	CE cUL TUV UL	Tubeaxial	2 Wire Leads	44 dB(A)
Mechatronics Fan Group G9232X12B-FSR-EM	0.68 A	Polybutylene Terephthalate (PBT)	12 VDC	1.9 m³/min	68 CFM	32 mm	0.33 in H2O	82.2 Pa	Ball	4000 RPM	92 mm	92 mm	151.95 g	0.335 lb	Thermal Overload Protector (TOP)	CE cUL TUV UL	Tubeaxial	2 Wire Leads	44 dB(A)	IP57 - Dust Protected Waterproof
