146234 Series

698MHz-6GHz Wide Band Antenna, 100.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors

Manufacturer: Molex

Catalog

698MHz-6GHz Wide Band Antenna, 100.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors

Part	Termination	Termination	Frequency (Center/Band)	Number of Bands	Features	Features	Antenna Type	Applications	Mounting Type	Gain	Height (Max) [z]	Height (Max) [z]	Frequency Group	Return Loss

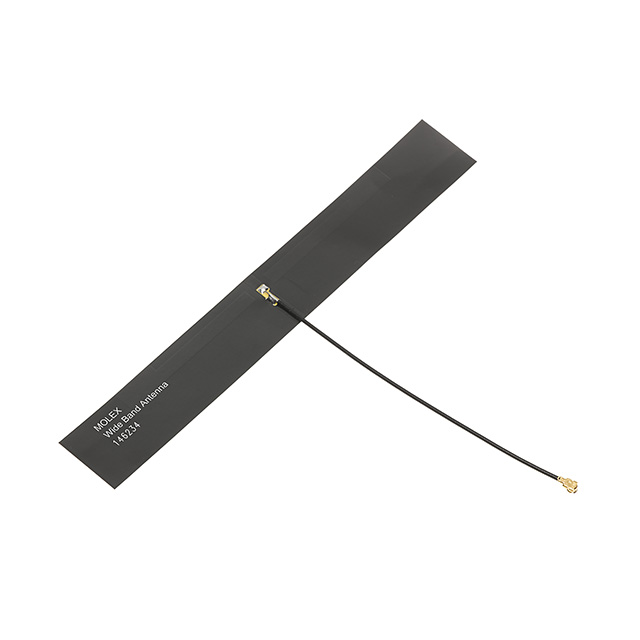

Molex 1462340100	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	2.1 GHz 4.35 GHz 829 MHz	3	Cable	100 mm	Flat Patch	General Purpose	Adhesive	1.8 dBi 2.8 dBi 5 dBi	0.004 in	0.1 mm	Wide Band	-5 dB -4 dB
Molex 1462340200		I-PEX MHF1 U.FL (UMCC)	2.1 GHz 4.35 GHz 829 MHz	3	Cable - 200mm		Flat Patch	General Purpose	Adhesive	1.6 dBi 2.5 dBi 4.6 dBi	0.004 in	0.1 mm	Wide Band	-5 dB -4 dB
Molex 1462340050		I-PEX MHF1 U.FL (UMCC)	2.1 GHz 4.35 GHz 829 MHz	3	Cable - 50mm		Flat Patch	General Purpose	Adhesive	1.9 dBi 2.85 dBi 5.2 dBi	0.004 in	0.1 mm	Wide Band	-5 dB -4 dB

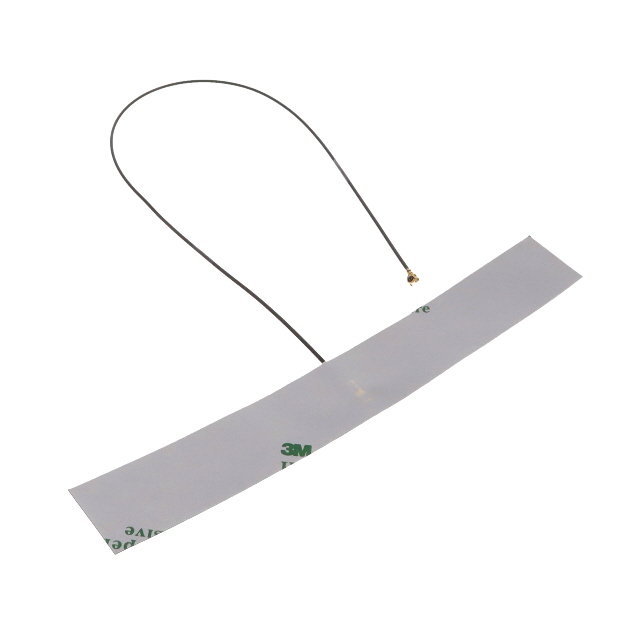

Molex 1462340300		I-PEX MHF1 U.FL (UMCC)	2.1 GHz 4.35 GHz 829 MHz	3	Cable - 300mm		Flat Patch	General Purpose	Adhesive	1.4 dBi 2.2 dBi 4.2 dBi	0.004 in	0.1 mm	Wide Band	-5 dB -4 dB

698MHz-6GHz Wide Band Antenna, 100.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
