191-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB RCPT 9POS PNL MT SLDR
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Material Flammability Rating | Connector Style | Features | Number of Positions | Connector Type | Shell Material, Finish | Mounting Type | Contact Finish | Number of Rows [custom] | Current Rating (Amps) | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Contact Finish Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

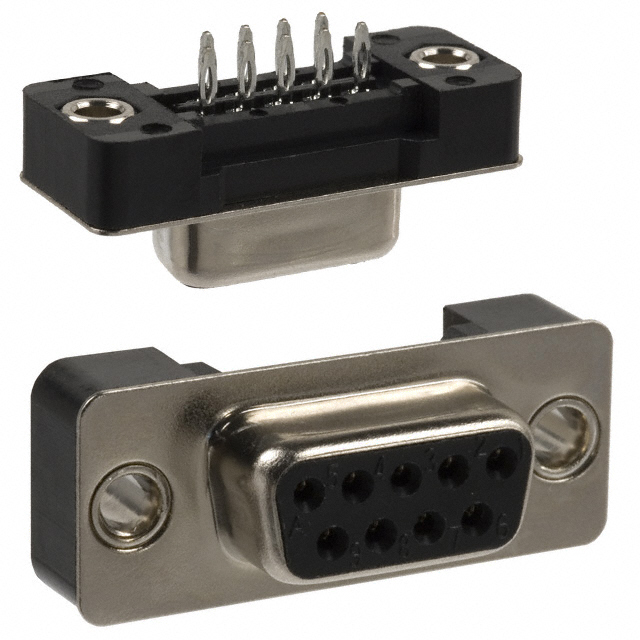

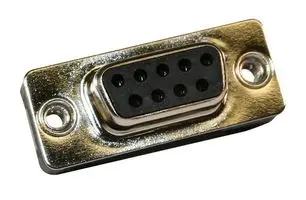

 NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Phosphor Bronze | Black | UL94 V-0 | D-Sub | Shielded | 9 | Receptacle Female Sockets | Nickel Plated Steel | Panel Mount Through Hole | Gold | 2 | 5 A | Signal | 1 | DE E | Solder | Flash | 4-40 Mating Side Female Screwlock | |
NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Phosphor Bronze | Black | UL94 V-0 | D-Sub | Board Lock | 9 | Receptacle Female Sockets | Nickel Plated Steel | Panel Mount Through Hole | Gold | 2 | 5 A | Signal | 1 | DE E | Solder | Flash | Housing/Shell | 4-40 |

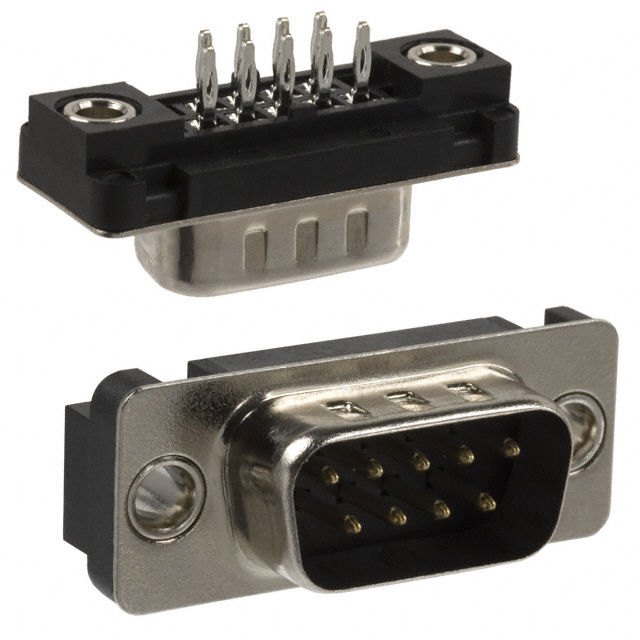

NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Brass | Black | UL94 V-0 | D-Sub | Board Lock Grounding Indents Shielded | 9 | Plug Male Pins | Nickel Plated Steel | Panel Mount Through Hole | Gold | 2 | 5 A | Signal | 1 | DE E | Solder | Flash | Housing/Shell | 4-40 |
 NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Brass | Black | UL94 V-0 | D-Sub | Board Lock Grounding Indents Shielded | 9 | Plug Male Pins | Nickel Plated Steel | Panel Mount Through Hole | Gold | 2 | 5 A | Signal | 1 | DE E | Solder | Flash | 4-40 Mating Side Female Screwlock | |
NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Phosphor Bronze | Black | UL94 V-0 | D-Sub | 9 | Receptacle Female Sockets | Panel Mount | Gold | 2 | 5 A | Signal | 1 | DE E | Press-Fit | Flash | Housing/Shell (Unthreaded) | |||
 NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Brass | Black | UL94 V-0 | D-Sub | Grounding Indents Shielded | 9 | Plug Male Pins | Nickel Plated Steel | Panel Mount | Gold | 2 | 5 A | Signal | 1 | DE E | Press-Fit | Flash | Housing/Shell (Unthreaded) | |
NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Brass | Black | UL94 V-0 | D-Sub | Board Lock Grounding Indents Shielded | 9 | Plug Male Pins | Nickel Plated Steel | Panel Mount | Gold | 2 | 5 A | Signal | 1 | DE E | Press-Fit | Flash | 4-40 Mating Side Female Screwlock | |
NorComp Inc. | Polyamide (PA6T) Nylon 6T | -55 C | 125 °C | Phosphor Bronze | Black | UL94 V-0 | D-Sub | Shielded | 9 | Receptacle Female Sockets | Nickel Plated Steel | Panel Mount | Gold | 2 | 5 A | Signal | 1 | DE E | Press-Fit | Flash | Housing/Shell (Unthreaded) | |
NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Phosphor Bronze | Black | UL94 V-0 | D-Sub | 9 | Receptacle Female Sockets | Nickel Plated Steel | Panel Mount Through Hole | Gold | 2 | 5 A | Signal | 1 | DE E | Solder | Flash | Housing/Shell | 4-40 | |
NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Brass | Black | UL94 V-0 | D-Sub | Grounding Indents | 9 | Plug Male Pins | Nickel Plated Steel | Panel Mount Through Hole | Gold | 2 | 5 A | Signal | 1 | DE E | Solder | Flash | Housing/Shell | 4-40 |
