1986158 Series

Catalog

CONN BARRIER STRIP 3CIRC 0.563"

Part	Material Flammability Rating	Features	Top Termination	Pitch [x]	Pitch [x]	Current Rating (Amps)	Number of Circuits	Number of Rows	Voltage Rating	Terminal Block Type	Number of Wire Entries	Mounting Type	Terminal Screw Material	Color	Barrier Type	Terminal Screw Finish	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Bottom Termination
TE Connectivity Raychem Cable Protection 1986158-3	UL94 V-0	Flange	Screws with Captive Plate	0.563 in	14.3 mm	30 A	3	2	600 V	Barrier Block	6	Chassis Panel	Steel	Black	2 Wall (Dual)	Nickel	Polybutylene Terephthalate (PBT)	-40 °C	120 °C	22 AWG	10 AWG	Closed
TE Connectivity Raychem Cable Protection 1986158-5	UL94 V-0	Flange	Screws with Captive Plate	0.563 in	14.3 mm	30 A	5	2	600 V	Barrier Block	10	Chassis Panel	Steel	Black	2 Wall (Dual)	Nickel	Polybutylene Terephthalate (PBT)	-40 °C	120 °C	22 AWG	10 AWG	Closed
TE Connectivity Raychem Cable Protection 1-1986158-2	UL94 V-0	Flange	Screws with Captive Plate	0.563 in	14.3 mm	30 A	12	2	600 V	Barrier Block		Chassis Panel	Steel	Black	2 Wall (Dual)	Nickel	Polybutylene Terephthalate (PBT)	-40 °C	120 °C	22 AWG	10 AWG	Closed

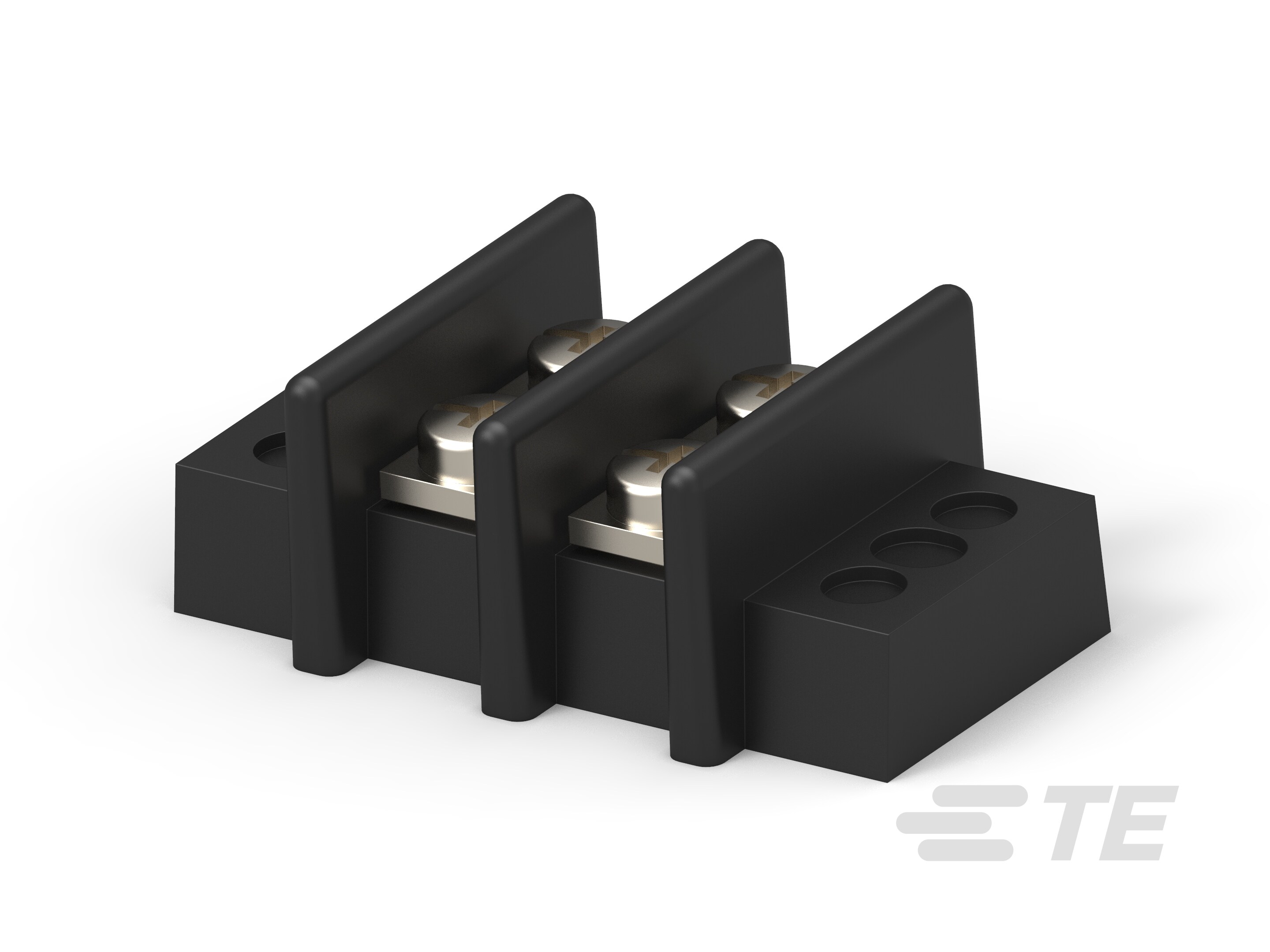

TE Connectivity Raychem Cable Protection 1986158-2	UL94 V-0	Flange	Screws with Captive Plate	0.563 in	14.3 mm	30 A	2	2	600 V	Barrier Block	4	Chassis Panel	Steel	Black	2 Wall (Dual)	Nickel	Polybutylene Terephthalate (PBT)	-40 °C	120 °C	22 AWG	10 AWG	Closed
