2.54mm, 5.50mm Pitch EXTreme Ten60Power Vertical Receptacle Assembly with Guide Receivers, 9 Signal Circuits, 4 Power Circuits
2.54mm, 5.50mm Pitch EXTreme Ten60Power Vertical Receptacle Assembly with Guide Receivers, 9 Signal Circuits, 4 Power Circuits
2.54mm, 5.50mm Pitch EXTreme Ten60Power Vertical Receptacle Assembly with Guide Receivers, 9 Signal Circuits, 4 Power Circuits
| Part | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Features | Color | Mounting Type | Number of Positions Loaded | Connector Style | Pitch [x] | Pitch [x] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Connector Type | Termination | Contact Layout, Typical | Voltage Rating | Number of Positions | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

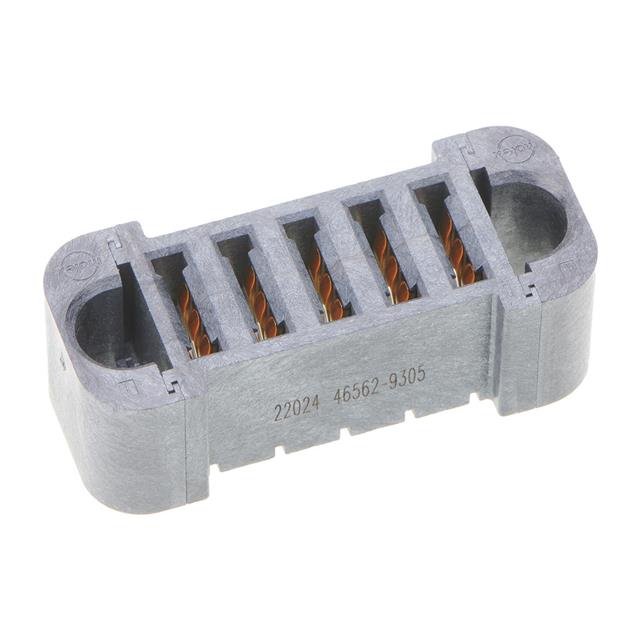

 Molex | Gold | 1 | 0.76 Ám | 30 Áin | Mating Guide | Black | Through Hole | All | EXTreme Ten60Power | 5.5 mm | 0.217 in | 60 A | -40 °C | 105 ░C | UL94 V-0 | Receptacle Female Blade Sockets | Press-Fit | 5 Power | 250 VDC 600 VAC | ||||

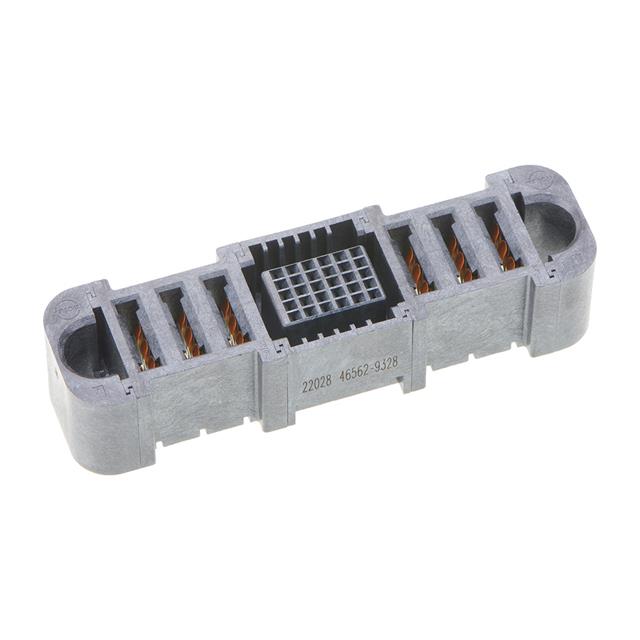

 Molex | Gold | 0.76 Ám | 30 Áin | Mating Guide | Black | Through Hole | All | EXTreme Ten60Power | 60 A | -40 °C | 105 ░C | UL94 V-0 | Blade Sockets Female Sockets Receptacle | Press-Fit | 250 VDC 600 VAC | 33 | 6 | 30 | |||||
 Molex | Gold | 1 | 0.76 Ám | 30 Áin | Black | Through Hole | All | EXTreme Ten60Power | 5.5 mm | 0.217 in | 60 A | -40 °C | 105 ░C | UL94 V-0 | Receptacle Female Blade Sockets | Press-Fit | 9 Power | 250 VDC 600 VAC | 9 | ||||
 Molex | Gold | 0.76 Ám | 30 Áin | Mating Guide | Black | Through Hole | All | EXTreme Ten60Power | 60 A | -40 °C | 105 ░C | UL94 V-0 | Blade Sockets Female Sockets Receptacle | Press-Fit | 250 VDC 600 VAC | 4 | 30 | ||||||
 Molex | Gold | 0.76 Ám | 30 Áin | Mating Guide | Black | Through Hole | All | EXTreme Ten60Power | 60 A | -40 °C | 105 ░C | UL94 V-0 | Blade Sockets Female Sockets Receptacle | Press-Fit | 250 VDC 600 VAC | 2 | 15 | 16 | |||||
Molex | |||||||||||||||||||||||
 Molex | Gold | 1 | 0.76 Ám | 30 Áin | Mating Guide | Black | Through Hole | All | EXTreme Ten60Power | 2 mm | 0.079 in | 2.5 A 55 A | -40 °C | 105 ░C | UL94 V-0 | Blade Sockets Female Sockets Receptacle | Press-Fit | 250 VDC 600 VAC | 12 | 2 | 10 | ||

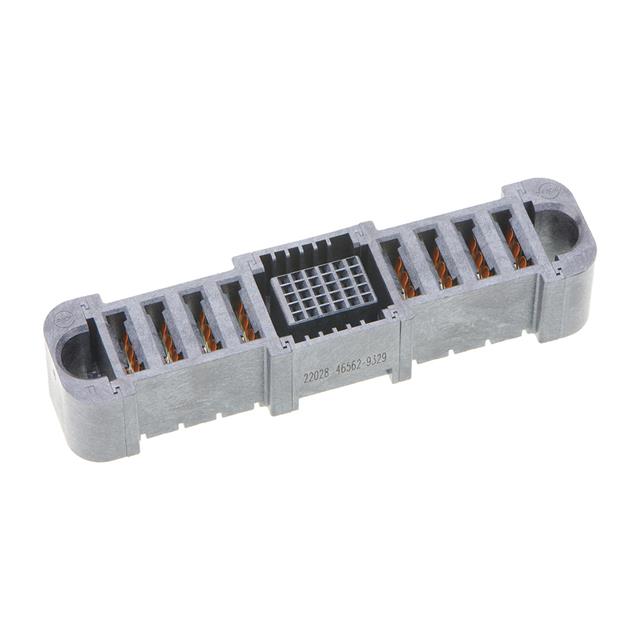

 Molex | Gold | 0.76 Ám | 30 Áin | Mating Guide | Black | Through Hole | All | EXTreme Ten60Power | 60 A | -40 °C | 105 ░C | UL94 V-0 | Blade Sockets Female Sockets Receptacle | Press-Fit | 250 VDC 600 VAC | 34 | 4 | 30 | |||||
Molex | Gold | 0.76 Ám | 30 Áin | Mating Guide | Black | Through Hole | All | EXTreme Ten60Power | -40 °C | 105 ░C | UL94 V-0 | Blade Sockets Female Sockets Receptacle | Press-Fit | 5 | 12 | ||||||||

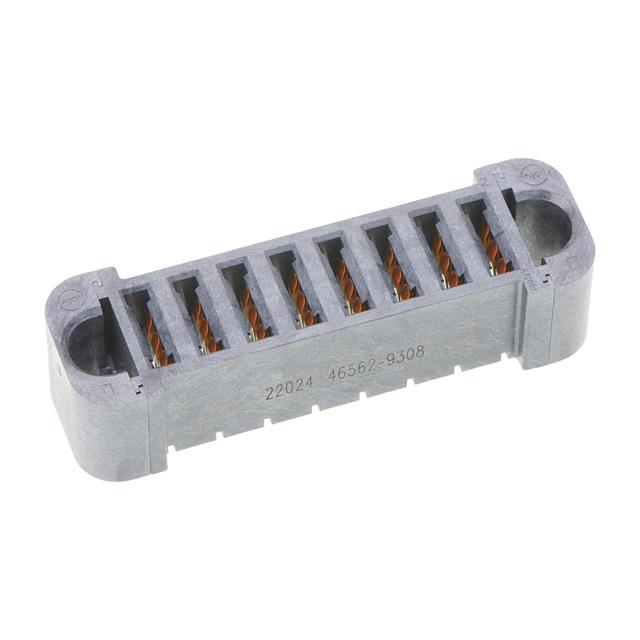

 Molex | Gold | 1 | 0.76 Ám | 30 Áin | Mating Guide | Black | Through Hole | All | EXTreme Ten60Power | 5.5 mm | 0.217 in | 60 A | -40 °C | 105 ░C | UL94 V-0 | Receptacle Female Blade Sockets | Press-Fit | 8 Power | 250 VDC 600 VAC | 8 |
