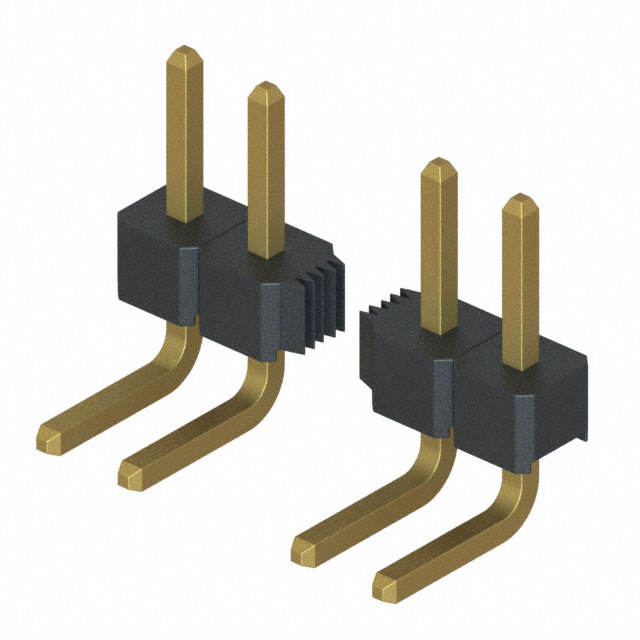

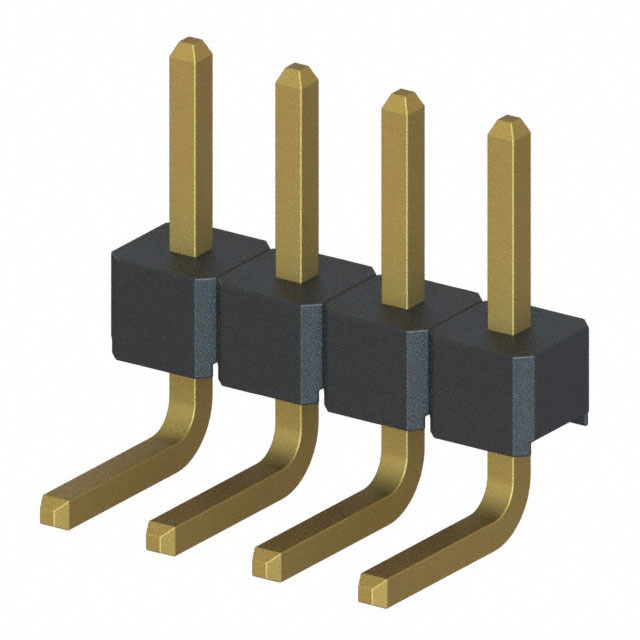

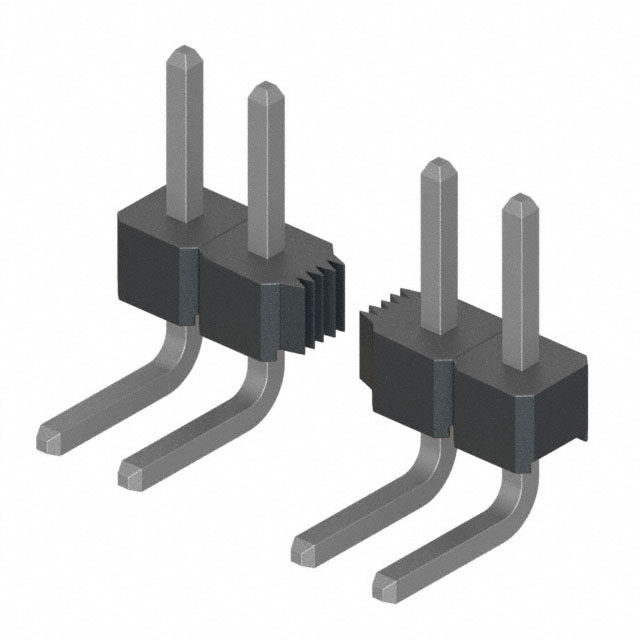

M22-203 Series

Catalog

CONN, R/A HDR, 24POS, 1ROW, 2MM ROHS COMPLIANT: YES

Part	Number of Rows	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Connector Type	Termination	Insulation Material	Number of Positions	Fastening Type	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Contact Finish - Mating	Contact Material	Shrouding	Contact Shape	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Color	Contact Finish - Post
Harwin Inc. M22-2032405	1	UL94 V-0	3.5 mm	0.138 in	0.079 "	2 mm	Header Cuttable	Solder	Nylon 6T Polyamide (PA6T)	24	Push-Pull	1 A	2 mm	0.079 in	-55 C	105 ░C	Right Angle Through Hole	Male Pin	Gold	Phosphor Bronze	Unshrouded	Square	0.118 in	3 mm	All	Black
Harwin Inc. M22-2030746	1	UL94 V-0	3.5 mm	0.138 in	0.079 "	2 mm	Header Cuttable	Solder	Nylon 6T Polyamide (PA6T)	7	Push-Pull	1 A	2 mm	0.079 in	-55 C	105 ░C	Right Angle Through Hole	Male Pin		Phosphor Bronze	Unshrouded	Square	0.118 in	3 mm	All	Black	Tin
Harwin Inc. M22-2030646	1	UL94 V-0	3.5 mm	0.138 in	0.079 "	2 mm	Header Cuttable	Solder	Nylon 6T Polyamide (PA6T)	6	Push-Pull	1 A	2 mm	0.079 in	-55 C	105 ░C	Right Angle Through Hole	Male Pin		Phosphor Bronze	Unshrouded	Square	0.118 in	3 mm	All	Black	Tin
Harwin Inc. M22-2030405	1	UL94 V-0	3.5 mm	0.138 in	0.079 "	2 mm	Header Cuttable	Solder	Nylon 6T Polyamide (PA6T)	4	Push-Pull	1 A	2 mm	0.079 in	-55 C	105 ░C	Right Angle Through Hole	Male Pin	Gold	Phosphor Bronze	Unshrouded	Square	0.118 in	3 mm	All	Black
Harwin Inc. M22-2031005	1	UL94 V-0	3.5 mm	0.138 in	0.079 "	2 mm	Header Cuttable	Solder	Nylon 6T Polyamide (PA6T)	10	Push-Pull	1 A	2 mm	0.079 in	-55 C	105 ░C	Right Angle Through Hole	Male Pin	Gold	Phosphor Bronze	Unshrouded	Square	0.118 in	3 mm	All	Black
Harwin Inc. M22-2030905	1	UL94 V-0	3.5 mm	0.138 in	0.079 "	2 mm	Header Cuttable	Solder	Nylon 6T Polyamide (PA6T)	9	Push-Pull	1 A	2 mm	0.079 in	-55 C	105 ░C	Right Angle Through Hole	Male Pin	Gold	Phosphor Bronze	Unshrouded	Square	0.118 in	3 mm	All	Black
Harwin Inc. M22-2030846	1	UL94 V-0	3.5 mm	0.138 in	0.079 "	2 mm	Header Cuttable	Solder	Nylon 6T Polyamide (PA6T)	8	Push-Pull	1 A	2 mm	0.079 in	-55 C	105 ░C	Right Angle Through Hole	Male Pin		Phosphor Bronze	Unshrouded	Square	0.118 in	3 mm	All	Black	Tin
