pp1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 12A/250VAC; WHITE; ILLUMIN: NONE
| Part | Switch Function | Operating Position | Operating Position | Mounting Type | Features | Operating Force | Termination Style | Electrical Life | Current Rating (Amps) | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Voltage Rating - AC | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

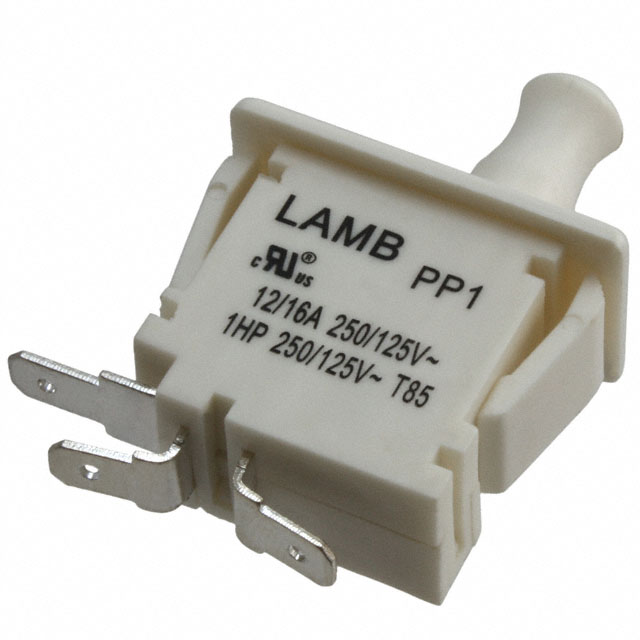

 E-Switch | On-Mom | 0.654 in | 16.6 mm | Panel Mount Snap-In | Pull On Lock | 300 gf | Quick Connect - 0.250" (6.3mm) | 6000 Cycles | 16 A | Push-Pull Plunger | 0 °C | 85 °C | SPDT | 125 V | |

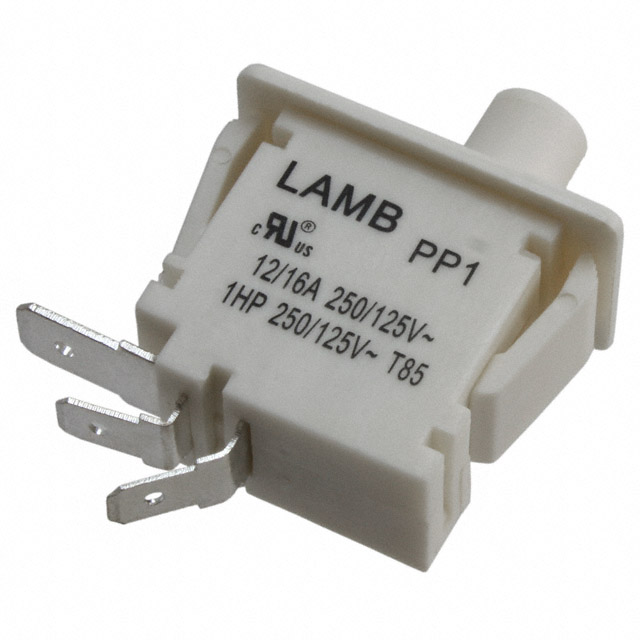

 E-Switch | On-Mom | 0.738 in | 18.7 mm | Panel Mount Snap-In | White Actuator | 300 gf | Quick Connect | 6000 Cycles | 16 A | Round (Pin Plunger) | 0 °C | 85 °C | SPDT | 125 V | |
 E-Switch | On-Mom | 0.362 in | 9.2 mm | Panel Mount Snap-In | White Actuator | 0.5 kgf | Quick Connect | 6000 Cycles | 16 A | Round (Pin Plunger) | 0 °C | 85 °C | SPDT | 125 V | 0.187 in 0.25 in |
