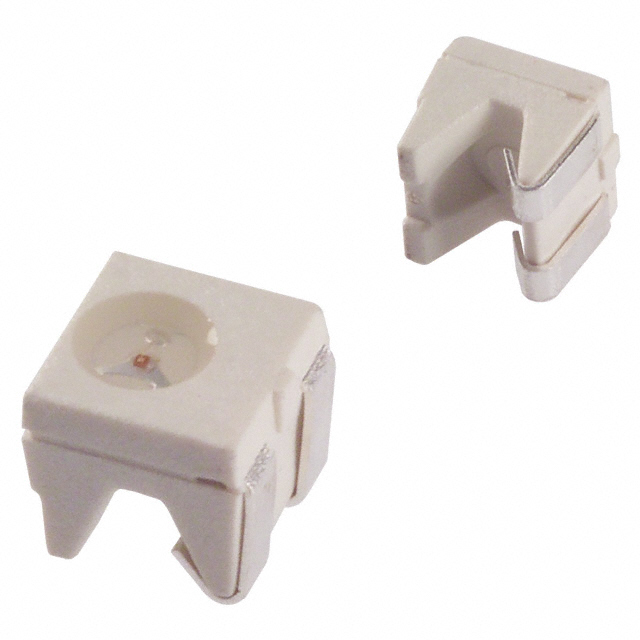

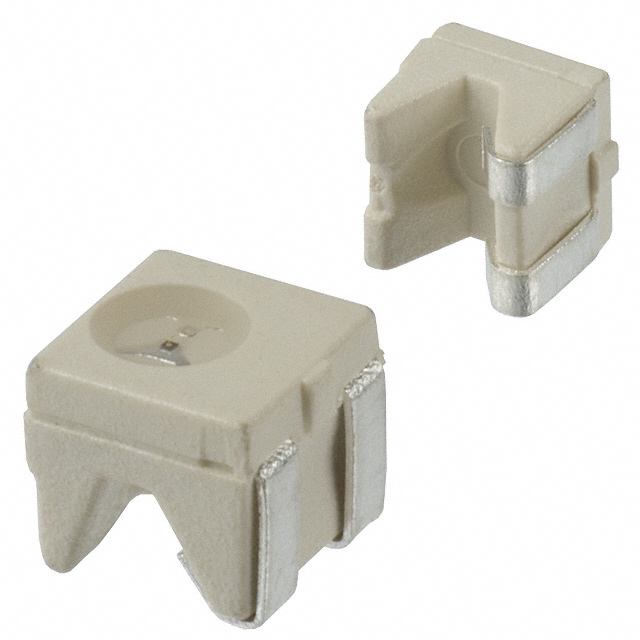

SML-LXR44 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
LED RED CLEAR BOOMERANG SMD R/A
| Part | Millicandela Rating | Color | Lens Style | Lens Color | Wavelength - Peak | Current - Test | Voltage - Forward (Vf) (Typ) | Size / Dimension [y] | Size / Dimension [x] | Viewing Angle | Lens Transparency | Configuration | Height (Max) [z] | Package / Case | Lens Size [diameter] | Supplier Device Package | Mounting Type | Current - Test [custom] | Current - Test [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 25 mcd | Red | Round with Flat Top | Colorless | 635 nm | 20 mA | 2 V | 3.6 mm | 4 mm | 90 ° | Clear | Standard | 4 mm | 2-SMD Boomerang | 2.4 mm Dia | Boomerang | Right Angle Surface Mount | ||
Lumex Opto/Components Inc. | 9 mcd | Yellow | Round with Flat Top | Colorless | 585 nm | 20 mA | 2.1 V | 3.6 mm | 4 mm | 90 ° | Clear | Standard | 4 mm | 2-SMD Boomerang | 2.4 mm Dia | Boomerang | Right Angle Surface Mount | ||
Lumex Opto/Components Inc. | 90 mcd 200 mcd | Green Red | Round with Domed Top | Colorless | 574 nm 660 nm | 1.85 V 2.1 V | 3.6 mm | 4 mm | 120 ° | Clear | Bidirectional | 4 mm | 2-SMD Boomerang | 2.4 mm Dia | Boomerang | Right Angle Surface Mount | 20 mA | 20 mA | |
 Lumex Opto/Components Inc. | 170 mcd | Blue | Round with Domed Top | Colorless | 470 nm | 20 mA | 3.5 V | 3.6 mm | 4 mm | 120 ° | Clear | Independent | 4 mm | 2-SMD Boomerang | 2.4 mm Dia | Boomerang | Surface Mount | ||
Lumex Opto/Components Inc. | 25 mcd | Green | Round with Flat Top | Colorless | 565 nm | 20 mA | 2.2 V | 3.6 mm | 4 mm | 90 ° | Clear | Standard | 4 mm | 2-SMD Boomerang | 2.4 mm Dia | Boomerang | Right Angle Surface Mount | ||
Lumex Opto/Components Inc. | 150 mcd | Green | Round with Domed Top | Colorless | 525 nm | 20 mA | 3.5 V | 3.6 mm | 4 mm | 120 ° | Clear | Independent | 4 mm | 2-SMD Boomerang | 2.4 mm Dia | Boomerang | Surface Mount | ||
 Lumex Opto/Components Inc. | 200 mcd | Yellow | Round with Flat Top | Colorless | 590 nm | 20 mA | 2 V | 3.6 mm | 4 mm | 90 ° | Clear | Standard | 4 mm | 2-SMD Boomerang | 2.4 mm Dia | Boomerang | Right Angle Surface Mount | ||
Lumex Opto/Components Inc. | 210 mcd | Green | Round with Flat Top | Colorless | 20 mA | 2.2 V | 3.6 mm | 4 mm | 90 ° | Clear | Standard | 4 mm | 2-SMD Boomerang | 2.4 mm Dia | Boomerang | Right Angle Surface Mount | |||
Lumex Opto/Components Inc. | 170 mcd | Red | Round with Flat Top | Colorless | 636 nm | 20 mA | 2 V | 3.6 mm | 4 mm | 90 ° | Clear | Standard | 4 mm | 2-SMD Boomerang | 2.4 mm Dia | Boomerang | Right Angle Surface Mount | ||
Lumex Opto/Components Inc. | 80 mcd | Red | Round with Flat Top | Colorless | 660 nm | 20 mA | 1.7 V | 3.6 mm | 4 mm | 90 ° | Clear | Standard | 4 mm | 2-SMD Boomerang | 2.4 mm Dia | Boomerang | Right Angle Surface Mount |
