77319 Series

Catalog

CONN HEADER R/A 20POS 2.54MM

Part	Insulation Color	Contact Type	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish - Post	Termination	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating	Material Flammability Rating	Mounting Type	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Shape	Connector Type	Contact Length - Post	Contact Length - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Contact Length - Mating [x]

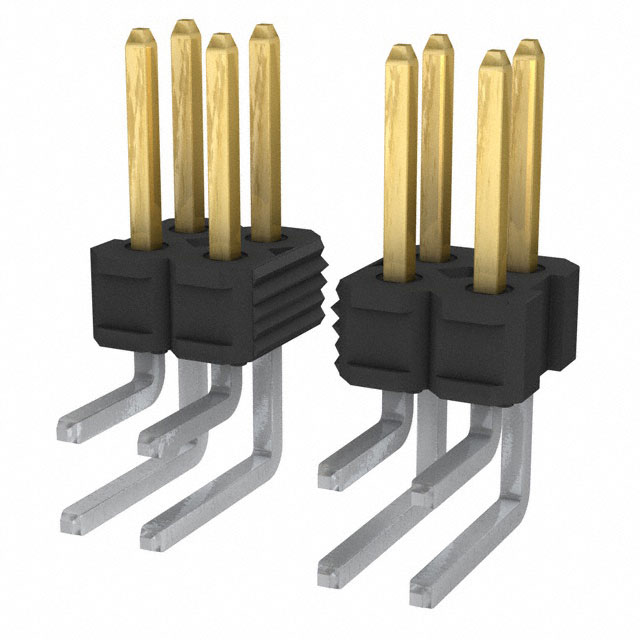

Amphenol ICC (FCI) 77319-104-20LF	Black	Male Pin	Thermoplastic	2 çm	78.7 çin	Unshrouded	-65 ░C	130 °C	All	Tin	Solder	2	0.23 in	5.84 mm	UL94 V-0	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	Gold GXT™	Square	Breakaway Header	0.111 in	2.82 mm	20	0.1 in	2.54 mm	3 A	30 Áin	0.76 Ám	Push-Pull
Amphenol ICC (FCI) 77319-803R16	Black	Male Pin	Thermoplastic			Unshrouded			All		Press-Fit Solder	2	0.318 "		UL94 V-0	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	Gold GXT™	Square	Breakaway Header	0.115 in	2.92 mm		0.1 in	2.54 mm		15 µin	0.38 µm	Push-Pull	16	8.08 mm

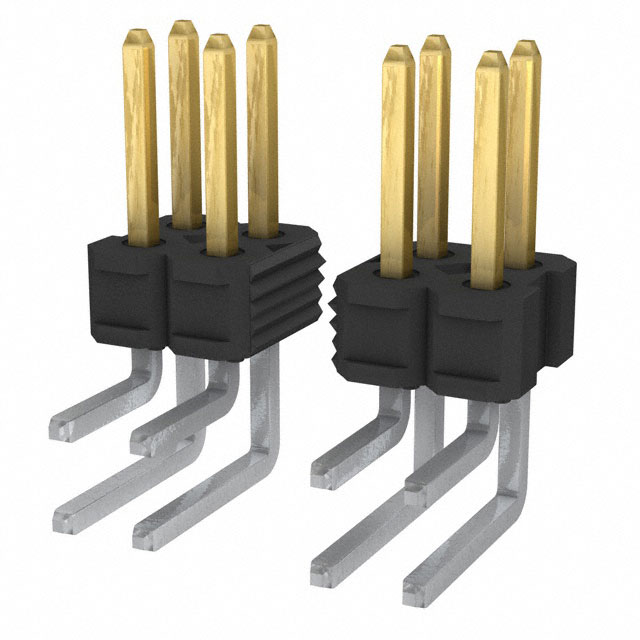

Amphenol ICC (FCI) 77319-103-36LF	Black	Male Pin	Thermoplastic	2 çm	78.7 çin	Unshrouded	-65 ░C	130 °C	All	Tin	Solder	2	0.318 "		UL94 V-0	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	Gold GXT™	Square	Breakaway Header	0.115 in	2.92 mm	36	0.1 in	2.54 mm	3 A	30 Áin	0.76 Ám	Push-Pull		8.08 mm

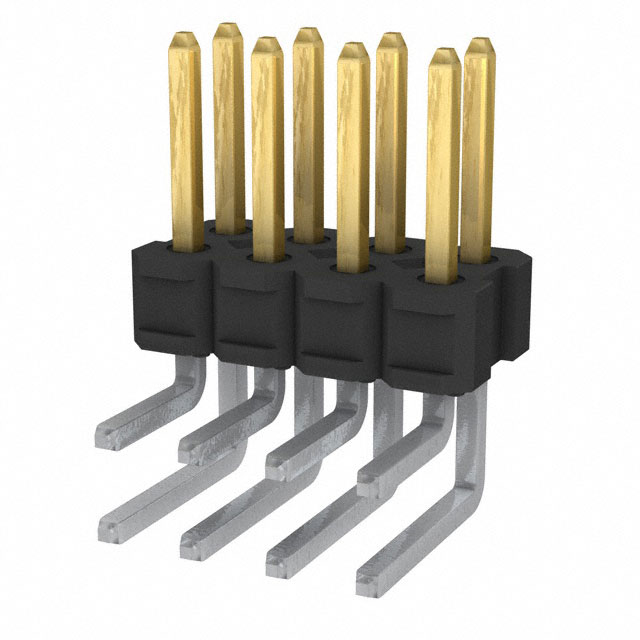

Amphenol ICC (FCI) 77319-803-08	Black	Male Pin	Thermoplastic			Unshrouded	-65 ░C	130 °C	All		Solder	2	0.318 "		UL94 V-0	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	Gold GXT™	Square	Breakaway Header	0.115 in	2.92 mm	8	0.1 in	2.54 mm	3 A	15 µin	0.38 µm	Push-Pull		8.08 mm
Amphenol ICC (FCI) 77319-803R12LF	Black	Male Pin	Thermoplastic	2 çm	78.7 çin	Unshrouded	-65 ░C	130 °C	All	Tin	Solder	2	0.318 "		UL94 V-0	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	Gold GXT™	Square	Breakaway Header	0.115 in	2.92 mm	12	0.1 in	2.54 mm	3 A	15 µin	0.38 µm	Push-Pull		8.08 mm
Amphenol ICC (FCI) 77319-103-72LF	Black	Male Pin	Thermoplastic	2 çm	78.7 çin	Unshrouded	-65 ░C	130 °C	All	Tin	Solder	2	0.318 "		UL94 V-0	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	Gold GXT™	Square	Breakaway Header	0.115 in	2.92 mm	72	0.1 in	2.54 mm	3 A	30 Áin	0.76 Ám	Push-Pull		8.08 mm

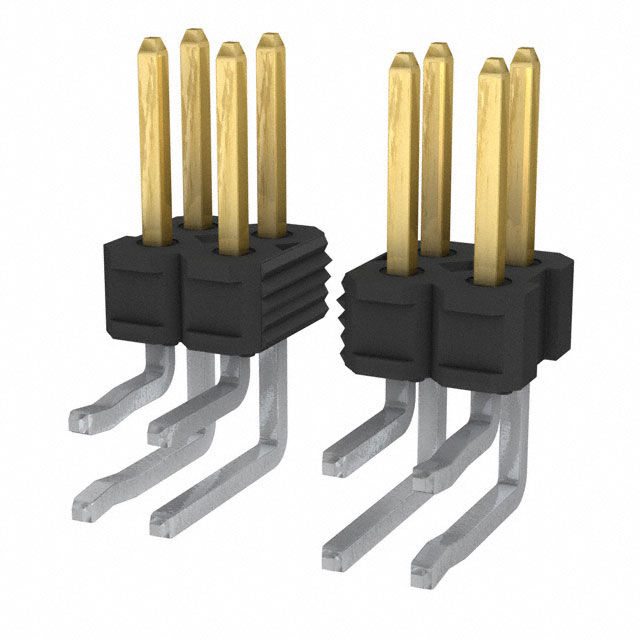

Amphenol ICC (FCI) 77319-103R40LF	Black	Male Pin	Thermoplastic	2 çm	78.7 çin	Unshrouded	-65 ░C	130 °C	All	Tin	Press-Fit Solder	2	0.318 "		UL94 V-0	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	Gold GXT™	Square	Breakaway Header	0.115 in	2.92 mm	40	0.1 in	2.54 mm	3 A	30 Áin	0.76 Ám	Push-Pull		8.08 mm
Amphenol ICC (FCI) 77319-104-10	Black	Male Pin	Thermoplastic			Unshrouded			All		Solder	2	0.23 in	5.84 mm	UL94 V-0	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	Gold GXT™	Square	Breakaway Header	0.111 in	2.82 mm	10	0.1 in	2.54 mm		30 Áin	0.76 Ám	Push-Pull

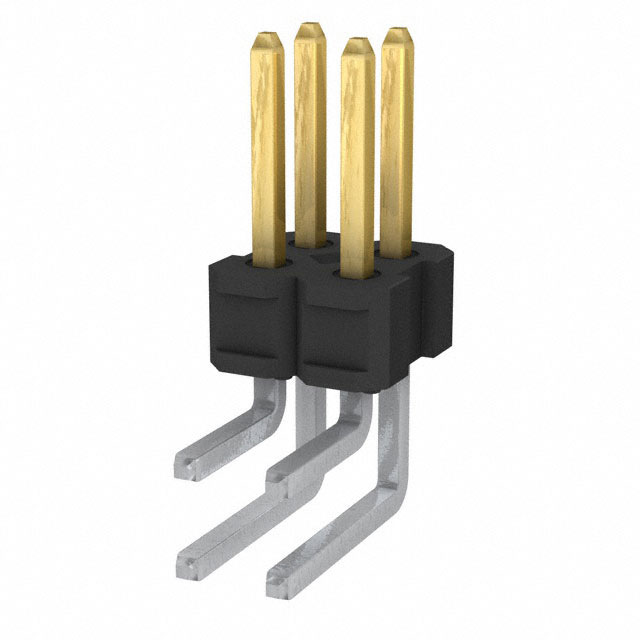

Amphenol ICC (FCI) 77319-103-04LF	Black	Male Pin	Thermoplastic	2 çm	78.7 çin	Unshrouded	-65 ░C	130 °C	All	Tin	Solder	2	0.318 "		UL94 V-0	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	Gold GXT™	Square	Breakaway Header	0.115 in	2.92 mm	4	0.1 in	2.54 mm	3 A	30 Áin	0.76 Ám	Push-Pull		8.08 mm
Amphenol ICC (FCI) 77319-803R10LF	Black	Male Pin	Thermoplastic	2 çm	78.7 çin	Unshrouded	-65 ░C	130 °C	All	Tin	Press-Fit Solder	2	0.318 "		UL94 V-0	Through Hole Right Angle	Phosphor Bronze	2.54 mm	0.1 in	Gold GXT™	Square	Breakaway Header	0.115 in	2.92 mm		0.1 in	2.54 mm	3 A	15 µin	0.38 µm	Push-Pull		8.08 mm
