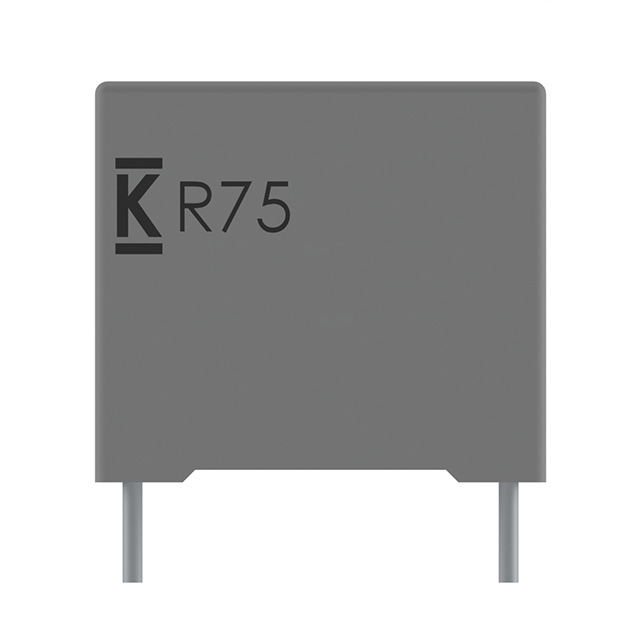

R75UW Series

Manufacturer: KEMET

Catalog

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.56 ΜF, ± 5%, HIGH FREQUENCY

Part	Termination	Tolerance	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Voltage Rating - DC	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Capacitance	Applications	Mounting Type	ESR (Equivalent Series Resistance)	Dielectric Material	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R75UW356050H4J	PC Pins	5 %	37.5 mm	1.476 in	-55 C	125 °C	2 kV	2 kVDC	Radial	41.5 mm	1.634 in	20 mm	0.787 in	560 nF	Automotive High Frequency Switching High Pulse DV/DT	Through Hole	5.7 mOhms	Polypropylene (PP) Metallized	700 V	40.1 mm	1.579 in	AEC-Q200
KEMET R75UW322050L3J	PC Pins	5 %	37.5 mm	1.476 in	-55 C	105 ░C	2 kV	2 kVDC	Radial		1.634 in 41.5 mm		0.945 " 24 mm	0.22 µF	DV/DT High Frequency High Pulse Switching	Through Hole	5.1 mOhm	Polypropylene (PP) Metallized	700 V				0.594 in	15.1 mm
KEMET R75UW382050H4J	PC Pins	5 %	37.5 mm	1.476 in	-55 C	125 °C	2 kV	2 kVDC	Radial		1.634 in 41.5 mm		0.945 " 24 mm	0.82 µF	Automotive High Frequency Switching High Pulse DV/DT	Through Hole	3.9 mOhms	Polypropylene (PP) Metallized	700 V			AEC-Q200	1.736 in	44.1 mm
