9TM24 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

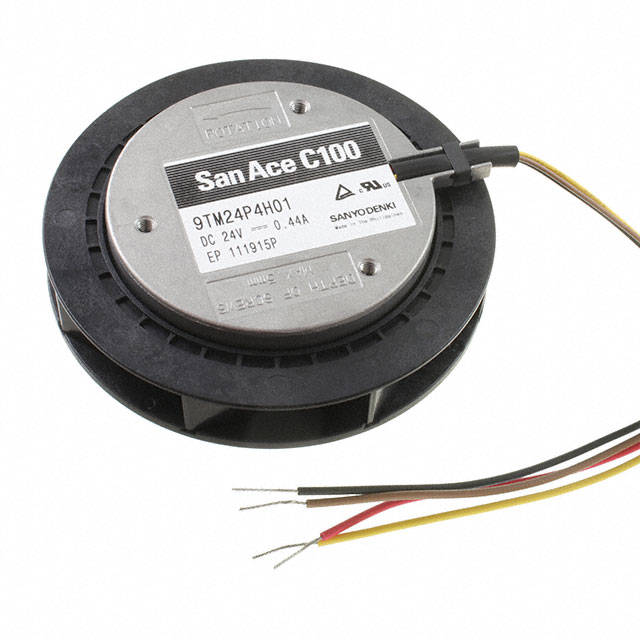

FAN IMP MTRZD 100X25MM 24VDC
| Part | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | RPM | Fan Type | Width [y] | Approval Agency | Air Flow | Air Flow | Voltage - Rated | Termination | Weight | Weight | Power (Watts) | Noise | Bearing Type | Features | Static Pressure | Static Pressure | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Aluminum | 26.4 VDC | 21.6 VDC | Plastic | 40000 Hrs | 0.44 A | -20 ░C | 70 °C | 6400 RPM | Motorized Impellers | 25 mm | CSA TUV UL | 62.5 CFM | 1.75 mł/min | 24 VDC | 4 Wire Leads | 150.14 g | 0.331 lb | 10.56 W | 60 dB(A) | Ball | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 560 Pa | 2.25 in H2O | Round | 100 mm |
