51-155 Series
Manufacturer: EAO
Beta
⌘K

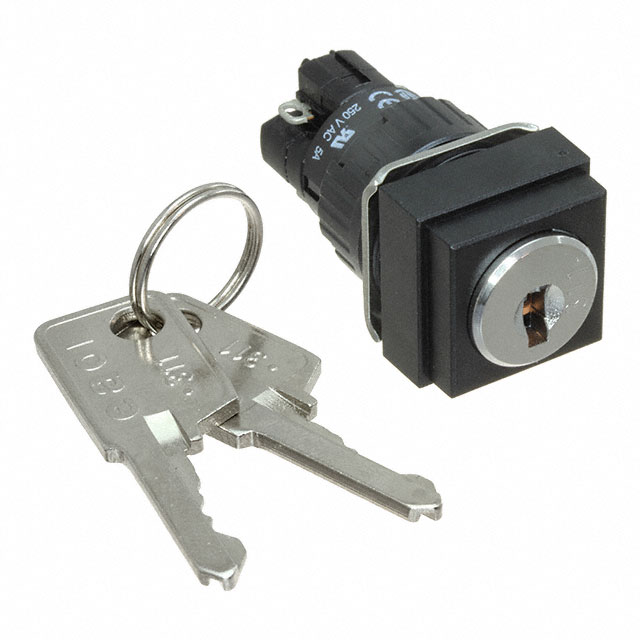

SWITCH KEYLOCK 2POS DPST 5A 250V
| Part | Depth Behind Flange | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Termination Style | Switch Function | Number of Positions | Key Removable Positions | Angle of Throw | Actuator Type | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Circuit | Mounting Type | Contact Timing | Features | Mechanical Life | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 26.5 mm | 55 °C | -25 °C | 5 A | Solder Lug | Off-On On-Off | 2 | All | 90 ° | Flat Key | 16 mm | 250 V | DPST-NO/NC | Panel Mount | Not Specified | IP65 | ||
 EAO | 35.5 mm | 55 °C | -25 °C | 5 A | Solder Lug | Off-On On-Off | 2 | All | 90 ° | Flat Key | 16 mm | 250 V | DPST-NO/NC | Panel Mount | Not Specified | IP65 | 50000 Cycles | 50000 Cycles |
