G125-FV1 Series

Catalog

CONN RCPT 10POS 0.049 GOLD PCB

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mated Stacking Heights [z]	Connector Type	Termination	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Voltage Rating	Number of Rows [custom]	Insulation Height	Insulation Height	Insulation Color	Features	Style	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Applications	Fastening Type

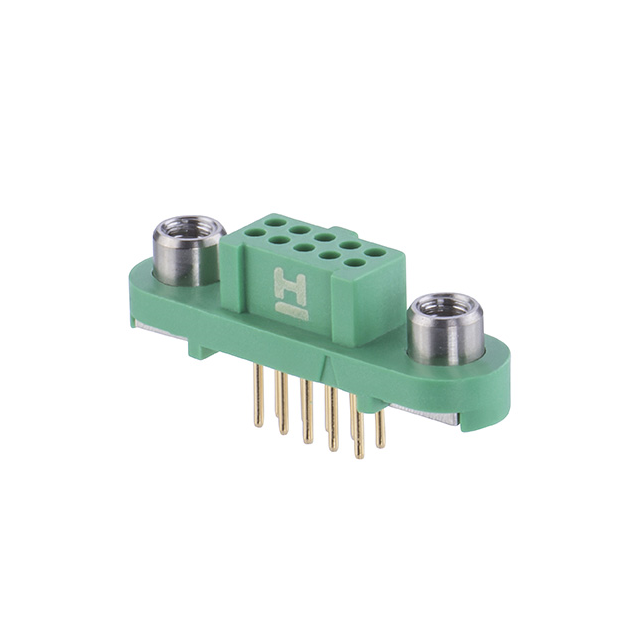

Harwin Inc. G125-FV11005F2R	Circular	0.203 µm	8 µin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Copper Alloy	8 µin	0.203 µm	Through Hole	10	Gold	150 °C	-65 ░C	7.25 mm 7.33 mm	Receptacle	Solder	Female Socket	0.118 in	3 mm	Gold	450 V	2	5.25 mm	0.207 in	Green	Mating Flange Pick and Place Polarizing Key	Board to Board Cable	2 A	1.25 mm	0.049 in	UL94 V-0	All	0.049 in	1.25 mm

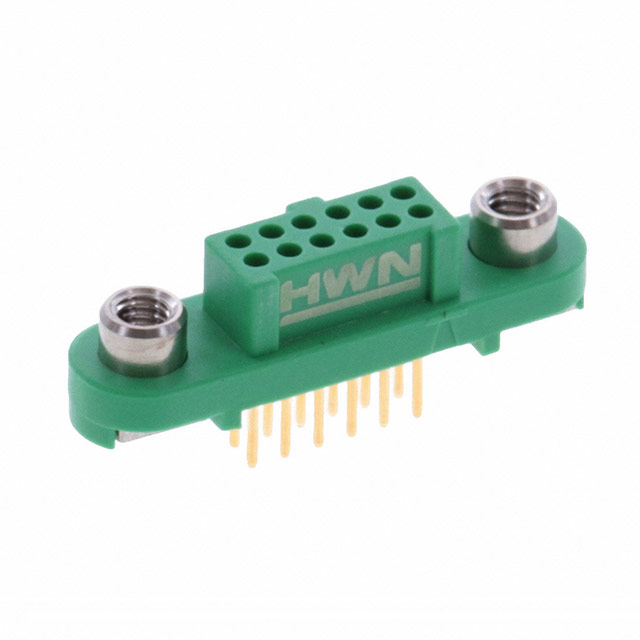

Harwin Inc. G125-FV11205F2P	Circular	0.203 µm	8 µin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Copper Alloy	8 µin	0.203 µm	Through Hole	12	Gold	150 °C	-65 ░C	7.25 mm 7.33 mm	Receptacle	Solder	Female Socket	0.118 in	3 mm	Gold	450 V	2	5.25 mm	0.207 in	Green	Pick and Place Polarizing Key	Board to Board Cable	2 A	1.25 mm	0.049 in	UL94 V-0	All	0.049 in	1.25 mm

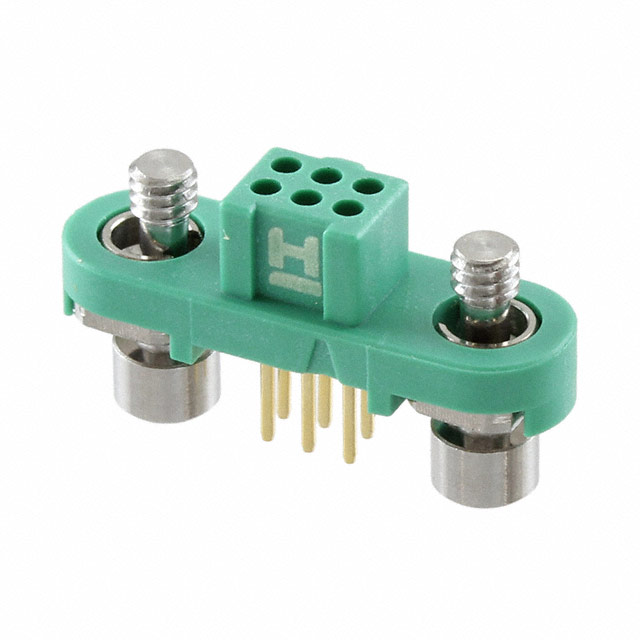

Harwin Inc. G125-FV10605F1P	Circular			Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Copper Alloy	8 µin	0.203 µm	Through Hole	6	Gold	150 °C	-65 ░C		Receptacle	Solder	Female Socket			Gold		2	5.25 mm	0.207 in	Green	Jackscrews Pick and Place Polarizing Key	Board to Board Cable	2 A	1.25 mm	0.049 in	UL94 V-0	All	0.049 in	1.25 mm	Automotive General Purpose
Harwin Inc. G125-FV12605L0P	Circular			Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Copper Alloy	8 µin	0.203 µm	Through Hole	26	Gold	150 °C	-65 ░C		Receptacle	Solder	Female Socket	0.118 in	3 mm	Gold		2	5.25 mm	0.207 in	Green	Pick and Place Polarizing Key	Board to Board Cable	2 A	1.25 mm	0.049 in	UL94 V-0	All	0.049 in	1.25 mm	Automotive General Purpose	Latch Holder

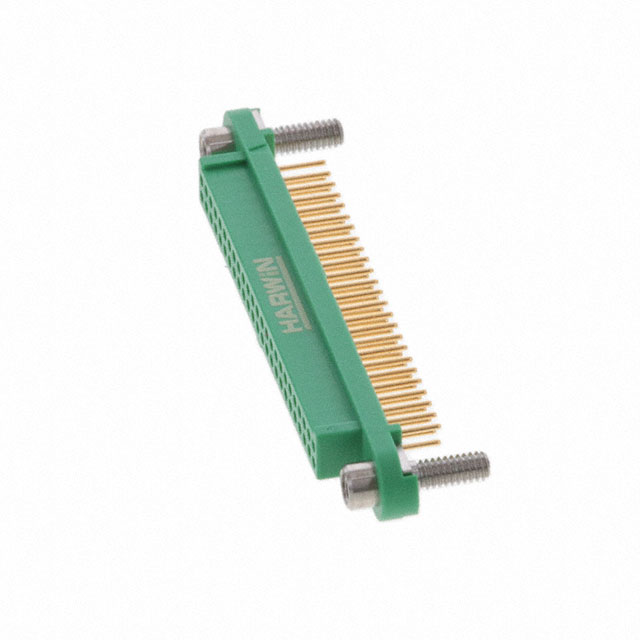

Harwin Inc. G125-FV15005F3P	Circular	0.203 µm	8 µin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Copper Alloy	8 µin	0.203 µm	Through Hole	50	Gold	150 °C	-65 ░C	7.25 mm 7.33 mm	Receptacle	Solder	Female Socket	0.118 in	3 mm	Gold	450 V	2	5.25 mm	0.207 in	Green	Jackscrews Pick and Place Polarizing Key	Board to Board Cable	2 A	1.25 mm	0.049 in	UL94 V-0	All	0.049 in	1.25 mm

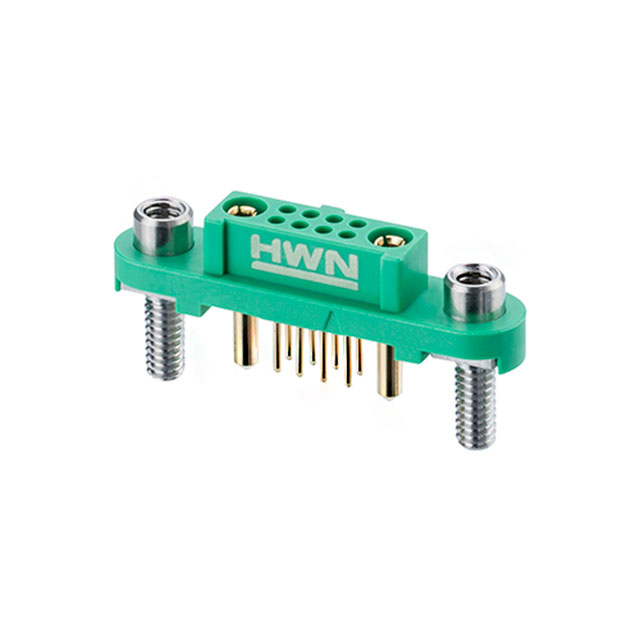

Harwin Inc. G125-FV10805F3-1AB1ABP	Circular			Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Beryllium Copper			Through Hole	10	Gold	150 °C	-65 ░C		Receptacle	Solder	Female Socket	0.118 in	3 mm	Gold	450 V	2	5.25 mm	0.207 in	Green	Mating Flange Mounting Flange Pick and Place Polarizing Key	Board to Board Cable	2 A 10 A	1.25 mm	0.049 in	UL94 V-0	All	0.049 in	1.25 mm
Harwin Inc. G125-FV11205L0P	Circular			Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Copper Alloy	8 µin	0.203 µm	Through Hole	12	Gold	150 °C	-65 ░C		Receptacle	Solder	Female Socket	0.118 in	3 mm	Gold		2	5.25 mm	0.207 in	Green	Pick and Place Polarizing Key	Board to Board Cable	2 A	1.25 mm	0.049 in	UL94 V-0	All	0.049 in	1.25 mm	Automotive General Purpose	Latch Holder

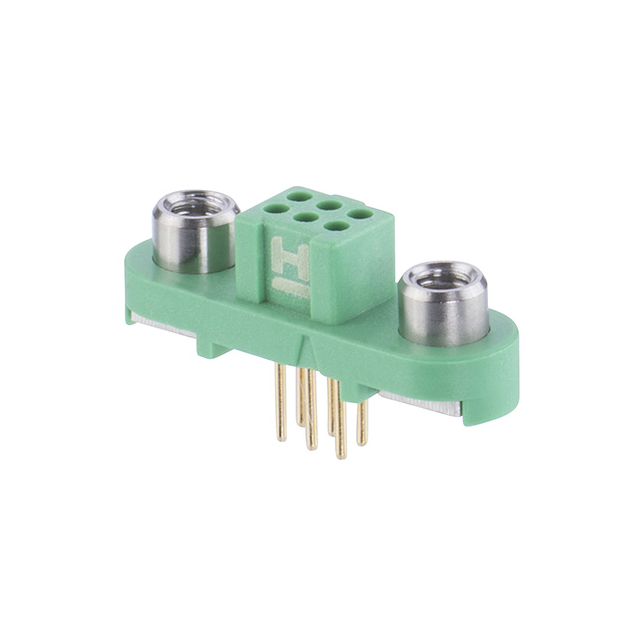

Harwin Inc. G125-FV10605F2R	Circular	0.203 µm	8 µin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Copper Alloy	8 µin	0.203 µm	Through Hole	6	Gold	150 °C	-65 ░C	7.25 mm 7.33 mm	Receptacle	Solder	Female Socket	0.118 in	3 mm	Gold	450 V	2	5.25 mm	0.207 in	Green	Mating Flange Pick and Place Polarizing Key	Board to Board Cable	2 A	1.25 mm	0.049 in	UL94 V-0	All	0.049 in	1.25 mm

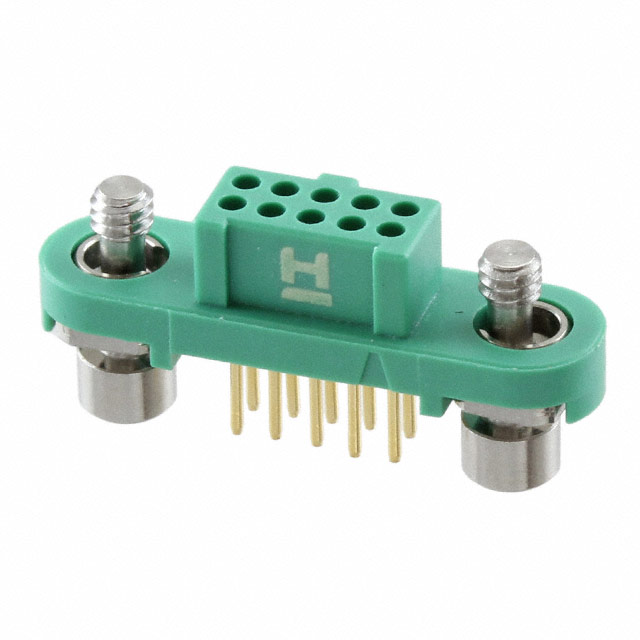

Harwin Inc. G125-FV11005F1P	Circular			Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Copper Alloy	8 µin	0.203 µm	Through Hole	10	Gold	150 °C	-65 ░C		Receptacle	Solder	Female Socket			Gold		2	5.25 mm	0.207 in	Green	Jackscrews Pick and Place Polarizing Key	Board to Board Cable	2 A	1.25 mm	0.049 in	UL94 V-0	All	0.049 in	1.25 mm	Automotive General Purpose
Harwin Inc. G125-FV12005F2P	Circular	0.203 µm	8 µin	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Copper Alloy	8 µin	0.203 µm	Through Hole	20	Gold	150 °C	-65 ░C	7.25 mm 7.33 mm	Receptacle	Solder	Female Socket	0.118 in	3 mm	Gold	450 V	2	5.25 mm	0.207 in	Green	Pick and Place Polarizing Key	Board to Board Cable	2 A	1.25 mm	0.049 in	UL94 V-0	All	0.049 in	1.25 mm
