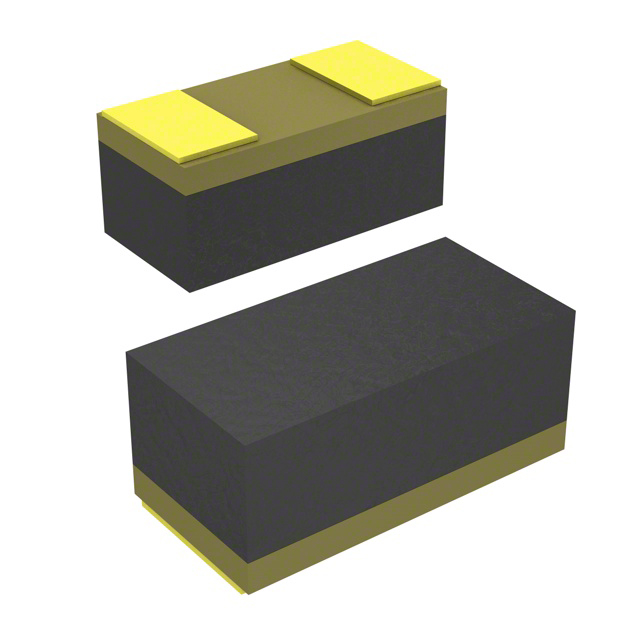

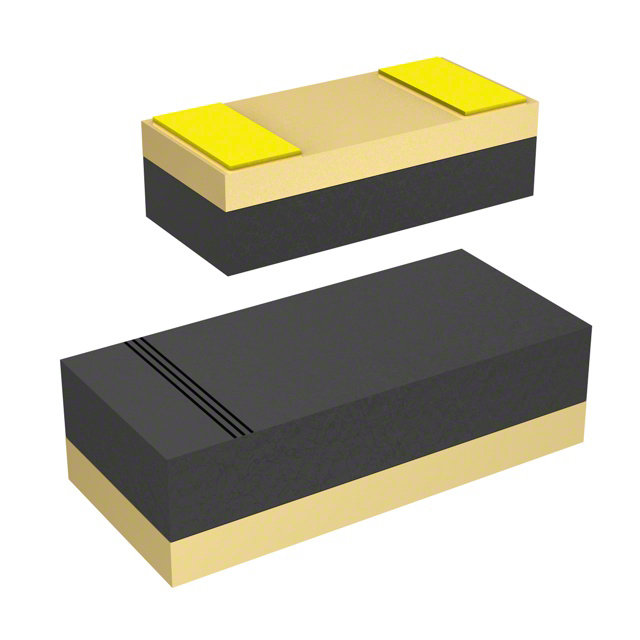

CD1005 Series

Catalog

DIODE ZENER 3.9V 200MW 1005

Part	Supplier Device Package	Power - Max [Max]	Current - Reverse Leakage @ Vr	Voltage - Zener (Nom) (Vz)	Impedance (Max) (Zzt) [Max]	Package / Case	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Technology	Voltage - Forward (Vf) (Max) @ If [Max]	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)
Bourns Inc. CD1005-Z3V9	1005	200 mW	10 µA	3.9 V	95 Ohms	1005 (2512 Metric)	5 %	-55 C	125 °C	Surface Mount
Bourns Inc. CD1005-B0230	1005		30 µA			1005 (2512 Metric)				Surface Mount	-40 °C	125 °C	200 mA	Schottky	500 mV	12 pF	30 V	200 mA	Any Speed
Bourns Inc. CD1005-Z39	1005	200 mW	100 nA	39 V	90 Ohms	1005 (2512 Metric)	5 %	-55 C	125 °C	Surface Mount
Bourns Inc. CD1005-S0180R	1005		50 nA			1005 (2512 Metric)				Surface Mount	-40 °C	125 °C	100 mA	Standard		4 pF	80 V	200 mA	Any Speed	1 V	4 ns
Bourns Inc. CD1005-Z5V6	1005	200 mW	100 nA	5.6 V	40 Ohms	1005 (2512 Metric)	5 %	-55 C	125 °C	Surface Mount
Bourns Inc. CD1005-Z16	1005	200 mW	100 nA	16 V	40 Ohms	1005 (2512 Metric)	5 %	-55 C	125 °C	Surface Mount
Bourns Inc. CD1005-Z6V2	1005	200 mW	100 nA	6.2 V	10 Ohms	1005 (2512 Metric)	5 %	-55 C	125 °C	Surface Mount
Bourns Inc. CD1005-Z2V4	1005	200 mW	100 µA	2.4 V	85 Ohms	1005 (2512 Metric)	5 %	-55 C	125 °C	Surface Mount
Bourns Inc. CD1005-Z24	1005	200 mW	100 nA	24 V		1005 (2512 Metric)	5 %	-55 C	125 °C	Surface Mount
Bourns Inc. CD1005-Z7V5	1005	200 mW	100 nA	7.5 V	7 Ohms	1005 (2512 Metric)	5 %	-55 C	125 °C	Surface Mount
