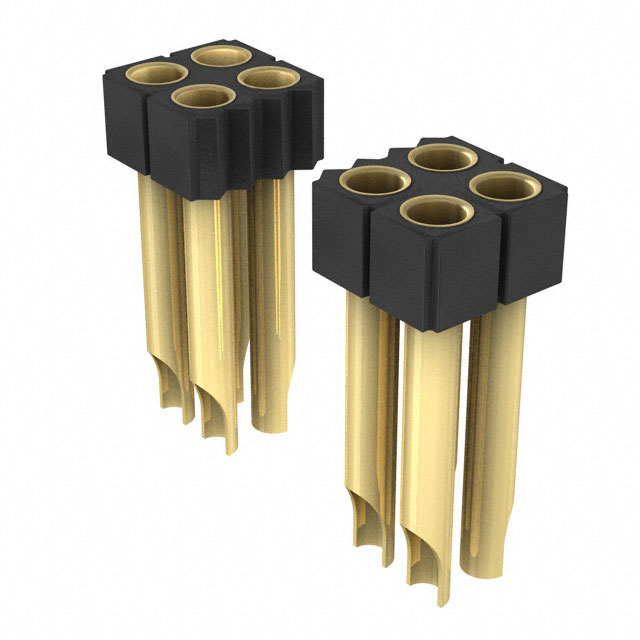

803-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 6POS 0.1 GOLD PCB

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Color	Contact Finish - Post	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Mounting Type	Contact Type	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Connector Type	Pitch - Mating	Pitch - Mating
Mill-Max Manufacturing Corp. 803-13-006-10-007000	Circular	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	6	-55 C	125 °C	All	Through Hole	Female Socket	UL94 V-0	Push-Pull	Gold	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	4.5 A	8.64 mm	0.34 in	Receptacle	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 803-13-012-10-007000	Circular	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	12	-55 C	125 °C	All	Through Hole	Female Socket	UL94 V-0	Push-Pull	Gold	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	4.5 A	8.64 mm	0.34 in	Receptacle	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 803-13-014-10-007000	Circular	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	14	-55 C	125 °C	All	Through Hole	Female Socket	UL94 V-0	Push-Pull	Gold	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	4.5 A	8.64 mm	0.34 in	Receptacle	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 803-13-010-10-007000	Circular	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	10	-55 C	125 °C	All	Through Hole	Female Socket	UL94 V-0	Push-Pull	Gold	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	4.5 A	8.64 mm	0.34 in	Receptacle	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 803-13-020-10-007000	Circular	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	20	-55 C	125 °C	All	Through Hole	Female Socket	UL94 V-0	Push-Pull	Gold	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	4.5 A	8.64 mm	0.34 in	Receptacle	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 803-13-064-10-007000	Circular	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	64	-55 C	125 °C	All	Through Hole	Female Socket	UL94 V-0	Push-Pull	Gold	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	4.5 A	8.64 mm	0.34 in	Receptacle	0.1 "	2.54 mm

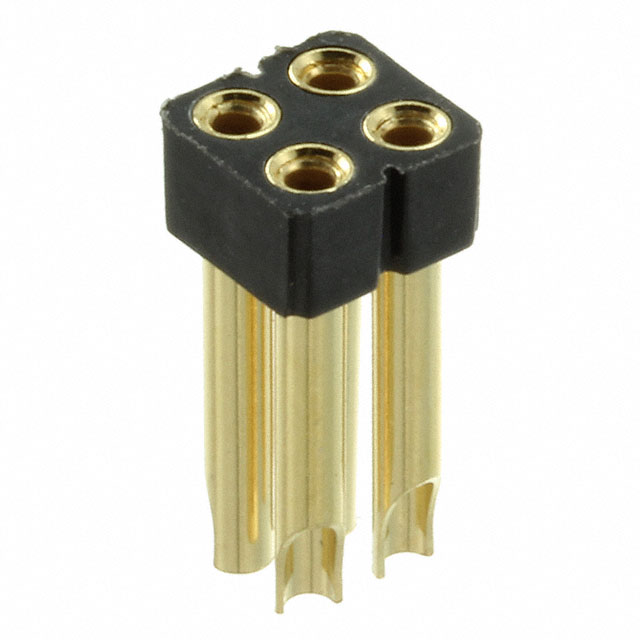

Mill-Max Manufacturing Corp. 803-13-004-10-007000	Circular	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	4	-55 C	125 °C	All	Through Hole	Female Socket	UL94 V-0	Push-Pull	Gold	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	4.5 A	8.64 mm	0.34 in	Receptacle	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 803-13-008-10-007000	Circular	Beryllium Copper	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Gold	8	-55 C	125 °C	All	Through Hole	Female Socket	UL94 V-0	Push-Pull	Gold	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	4.5 A	8.64 mm	0.34 in	Receptacle	0.1 "	2.54 mm
