Eurocard Type R Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN DIN PLUG 48POS PCB GOLD
| Part | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Style | Pitch | Pitch | Termination | Number of Positions Loaded | Connector Type | Contact Finish | Mounting Type | Number of Positions | Number of Rows [custom] | Features | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

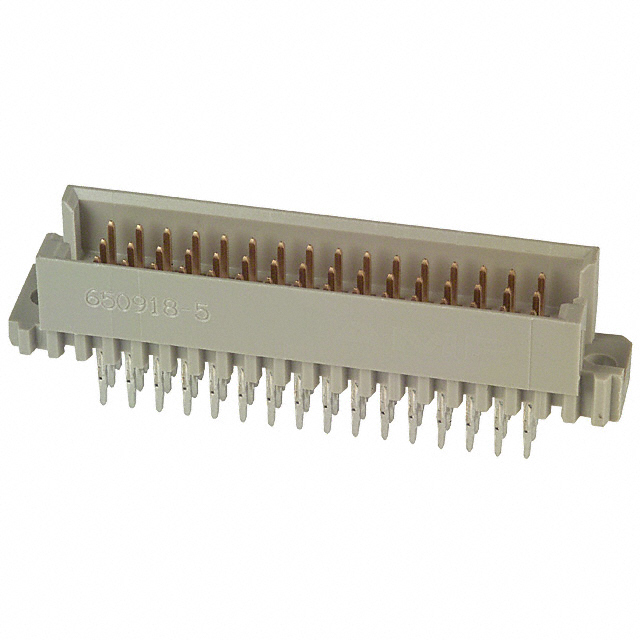

 TE Connectivity AMP Connectors | Polyester Glass Filled | -55 C | 125 °C | UL94 V-0 | R/2 (1/2 R) | 0.1 " | 2.54 mm | Press-Fit | All | Plug Male Pins | Gold | Through Hole | 48 | 3 | ||

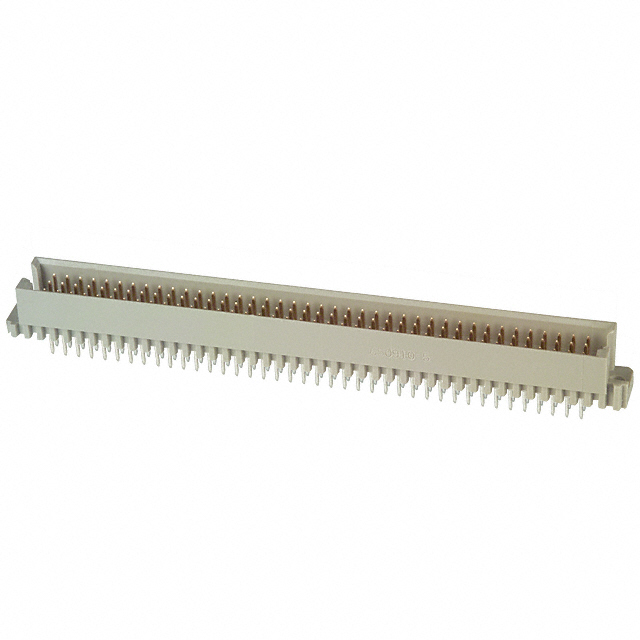

 TE Connectivity AMP Connectors | R | 0.1 " | 2.54 mm | Press-Fit | All | Plug Male Pins | Gold | Through Hole | 96 | 3 | ||||||
 TE Connectivity AMP Connectors | Polymer Thermoplastic Glass Filled | -55 C | 125 °C | R | 0.1 " | 2.54 mm | Press-Fit | All | Plug Male Pins | Gold | Through Hole | 150 | 3 | |||
TE Connectivity AMP Connectors | Polyester Glass Filled | R | 0.1 " | 2.54 mm | Solder | Receptacle Female Sockets | Right Angle Through Hole | 150 | 3 | Board Lock | 100 | |||||
 TE Connectivity AMP Connectors | Polyester Glass Filled | -55 C | 125 °C | UL94 V-0 | R/2 (1/2 R) | 0.1 " | 2.54 mm | Solder | All | Receptacle Female Sockets | Gold | Right Angle Through Hole | 48 | 3 | ||
 TE Connectivity AMP Connectors | Polymer Thermoplastic Glass Filled | -55 C | 125 °C | UL94 V-0 | R | 0.1 " | 2.54 mm | Solder | All | Plug Male Pins | Gold | Through Hole | 120 | 3 | ||

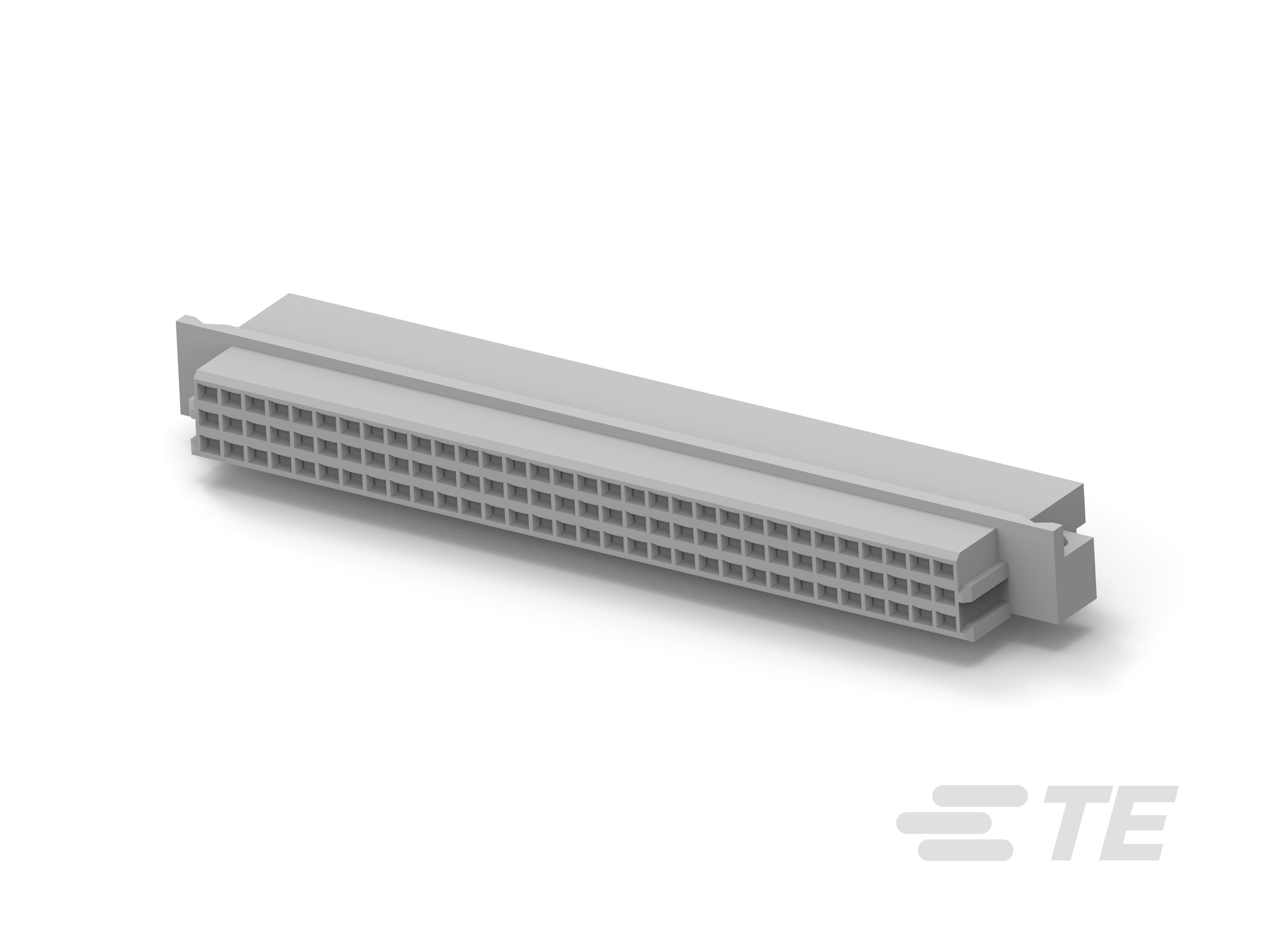

 TE Connectivity AMP Connectors | Polyester Glass Filled | -55 C | 125 °C | UL94 V-0 | R | 0.1 " | 2.54 mm | Press-Fit | All | Receptacle Female Sockets | Gold | Right Angle Through Hole | 96 | 3 | ||
 TE Connectivity AMP Connectors | R | 0.1 " | 2.54 mm | Solder | All | Receptacle Female Sockets | Gold | Right Angle Through Hole | 96 | 3 | ||||||
TE Connectivity AMP Connectors | Glass Filled Polybutylene Terephthalate (PBT) Polyester | -55 C | 125 °C | UL94 V-0 | R | 0.1 " | 2.54 mm | Solder | All | Plug Male Pins | Gold Gold-Palladium | Through Hole | 96 | 3 | ||
 TE Connectivity AMP Connectors | Polymer Thermoplastic Glass Filled | -55 C | 125 °C | UL94 V-0 | R | 0.1 " | 2.54 mm | Solder | All | Receptacle Female Sockets | Gold | Right Angle Through Hole | 96 | 3 |
