11_BNC-75 Series
Manufacturer: Huber+Suhner, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

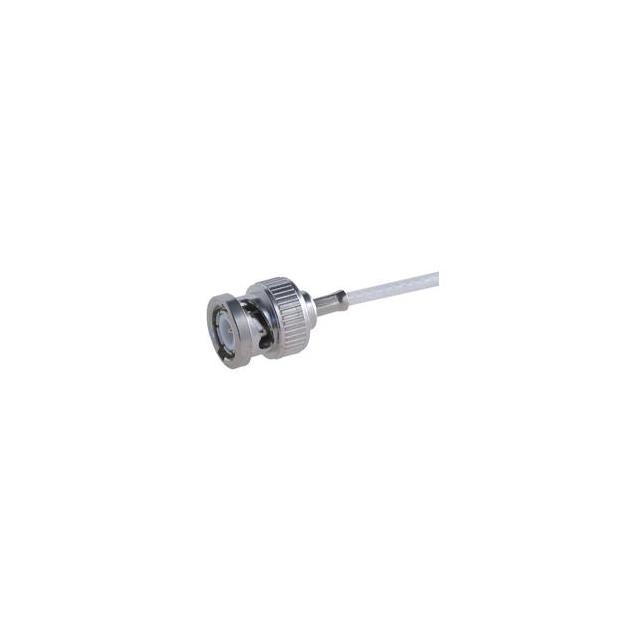

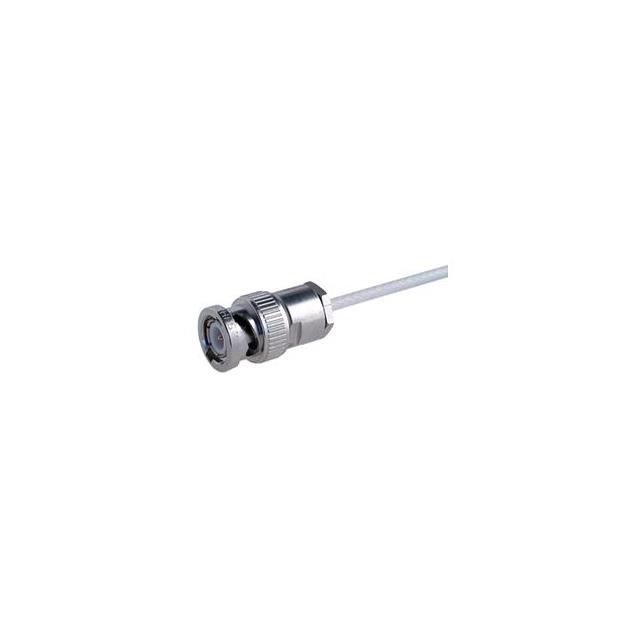

11_BNC-75-4-30/133_NE
| Part | Mounting Type | Frequency - Max | Contact Termination | Fastening Type | Impedance | Shield Termination | Connector Style | Number of Ports | Center Contact Material | Connector Type | Housing Color | Body Material | Voltage Rating | Body Finish | Mating Cycles | Center Contact Plating | Operating Temperature (Min) | Operating Temperature (Max) | Cable Group | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Free Hanging (In-Line) | 1 GHz | Crimp | Bayonet Lock | 75 Ohm | Crimp | BNC | 1 | Brass | Male Pin Plug | Silver | Brass | 500 V | White Bronze | 500 cycles | Gold | -65 °C | 165 °C | ||
Huber+Suhner, Inc. | Free Hanging (In-Line) | 1 GHz | Crimp | Bayonet Lock | 75 Ohm | Crimp | BNC | 1 | Brass Bronze | Male Pin Plug | Silver | Brass | 500 V | White Bronze | 500 cycles | Gold | -65 °C | 165 °C | 187 RG-179 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) |
 Huber+Suhner, Inc. | Free Hanging (In-Line) | 1 GHz | Solder | Bayonet Lock | 75 Ohm | Clamp | BNC | 1 | Brass | Male Pin Plug | Silver | Brass | 500 V | White Bronze | 500 cycles | Gold | -65 °C | 165 °C | 187 RG-179 | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) |
 Huber+Suhner, Inc. | Free Hanging (In-Line) | 1 GHz | Crimp | Bayonet Lock | 75 Ohm | Crimp | BNC | 1 | Brass | Male Pin Plug | Silver | Brass | Tri-Metal | 500 cycles | Gold | -65 °C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | ||
 Huber+Suhner, Inc. | Free Hanging (In-Line) | 4 GHz | Crimp | Bayonet Lock | 75 Ohm | Crimp | BNC | 1 | Brass | Male Pin Plug | Silver | Bronze | 500 V | White Bronze | 500 cycles | Gold | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) |
