147383 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

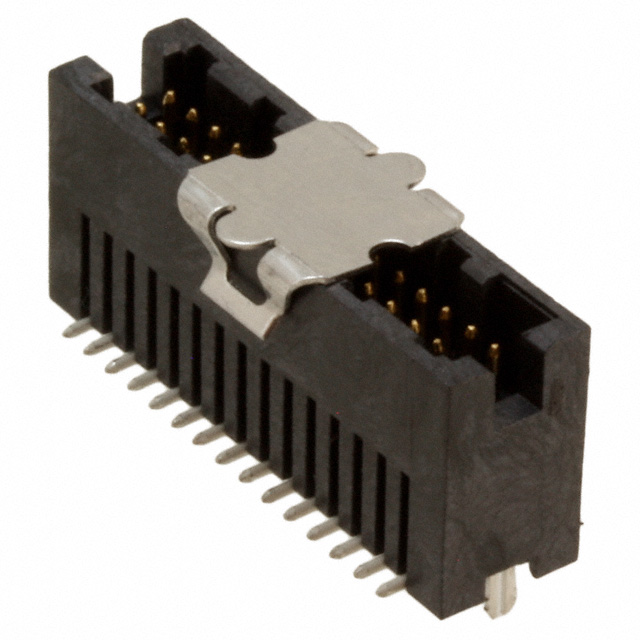

CONN HEADER SMD 40POS 1.27MM
| Part | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Material Flammability Rating | Insulation Material | Features | Mated Stacking Heights | Insulation Height | Insulation Height | Connector Type | Contact Finish - Post | Insulation Color | Contact Type | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Shape | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Mounting Type | Contact Length - Mating | Contact Length - Mating | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board Lock Pick and Place | 9.91 mm | 9.33 mm | 0.367 in | Header | Tin | Black | Male Pin | All | -65 ░C | 105 ░C | Push-Pull | 150 Áin | 3.81 Ám | Automotive General Purpose Medical Military Telecommunications | Circular | Solder | 30 Áin | 0.76 Ám | Gold | 0.05 in | 1.27 mm | 500 mA | Surface Mount | 3.05 mm | 0.12 in | 2 | 40 |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board Lock Pick and Place | 9.91 mm | 9.33 mm | 0.367 in | Header | Tin-Lead | Black | Male Pin | All | -65 ░C | 105 ░C | Push-Pull | 150 Áin | 3.81 Ám | Automotive General Purpose Medical Military Telecommunications | Circular | Solder | 30 Áin | 0.76 Ám | Gold | 0.05 in | 1.27 mm | 500 mA | Surface Mount | 3.05 mm | 0.12 in | 2 | 30 |
 TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board Lock Pick and Place | 9.91 mm | 9.33 mm | 0.367 in | Header | Tin | Black | Male Pin | All | -65 ░C | 105 ░C | Push-Pull | 150 Áin | 3.81 Ám | Automotive General Purpose Medical Military Telecommunications | Circular | Solder | 30 Áin | 0.76 Ám | Gold | 0.05 in | 1.27 mm | 500 mA | Surface Mount | 3.05 mm | 0.12 in | 2 | 30 |
TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | 0.05 in | 1.27 mm | Phosphor Bronze | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board Lock Pick and Place | 9.91 mm | 9.33 mm | 0.367 in | Header | Tin | Black | Male Pin | All | -65 ░C | 105 ░C | Push-Pull | 150 Áin | 3.81 Ám | Automotive General Purpose Medical Military Telecommunications | Circular | Solder | 30 Áin | 0.76 Ám | Gold | 0.05 in | 1.27 mm | 500 mA | Surface Mount | 3.05 mm | 0.12 in | 2 | 80 |
