345-072 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

...

Part	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Number of Positions/Bay/Row [custom]	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Read Out	Contact Finish	Contact Type	Card Type	Gender	Flange Feature	Pitch [x]	Pitch [x]	Termination Rows	Material - Insulation	Features	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-072-544-607	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	72	Through Hole	Wire Wrap	10 Áin	0.25 Ám	1	-40 °C	105 ░C	Copper Alloy	Single	Gold	Cantilever	Non Specified - Single Edge	Female	M3 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	1	Polyester Thermoplastic

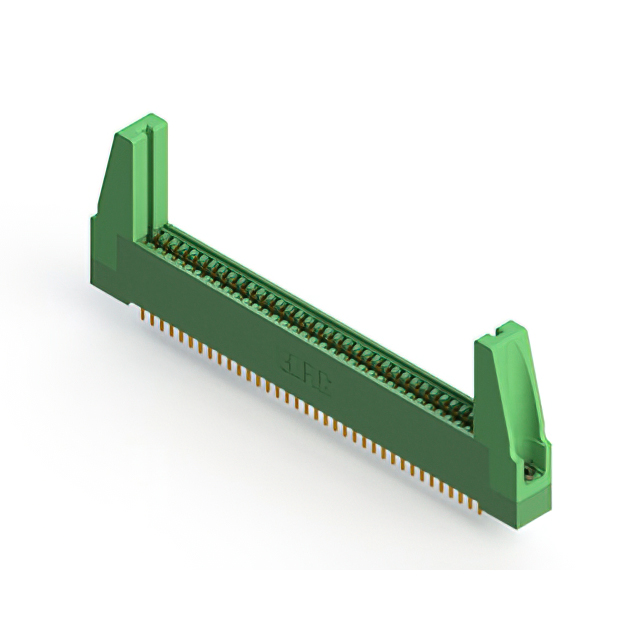

EDAC Inc. 345-072-521-288	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green		Through Hole	Solder	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Copper Alloy	Dual	Gold	Cantilever	Non Specified - Dual Edge	Female	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	2	Polyester Thermoplastic	Card Guides	36

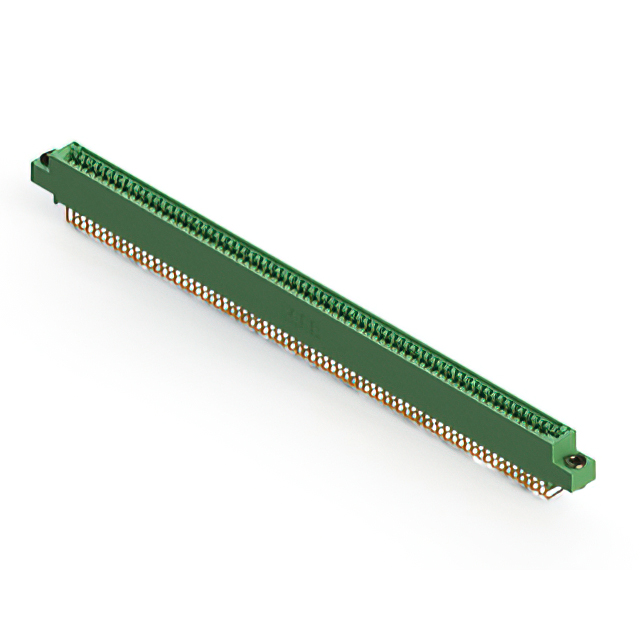

EDAC Inc. 345-072-558-403	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	72	Through Hole Right Angle	Solder	10 Áin	0.25 Ám	1	-40 °C	105 ░C	Copper Alloy	Single	Gold	Cantilever	Non Specified - Single Edge	Female	Floating Bobbin Top Mount Opening	2.54 mm	0.1 in	1	Polyester Thermoplastic			2.95 mm	0.116 in

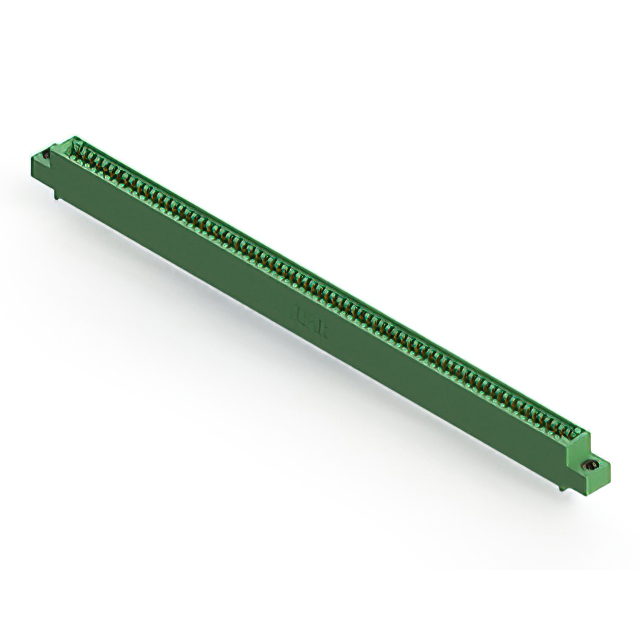

EDAC Inc. 345-072-524-408	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	72	Through Hole	Solder	10 Áin	0.25 Ám	1	-40 °C	105 ░C	Copper Alloy	Single	Gold	Cantilever	Non Specified - Single Edge	Female	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	1	Polyester Thermoplastic

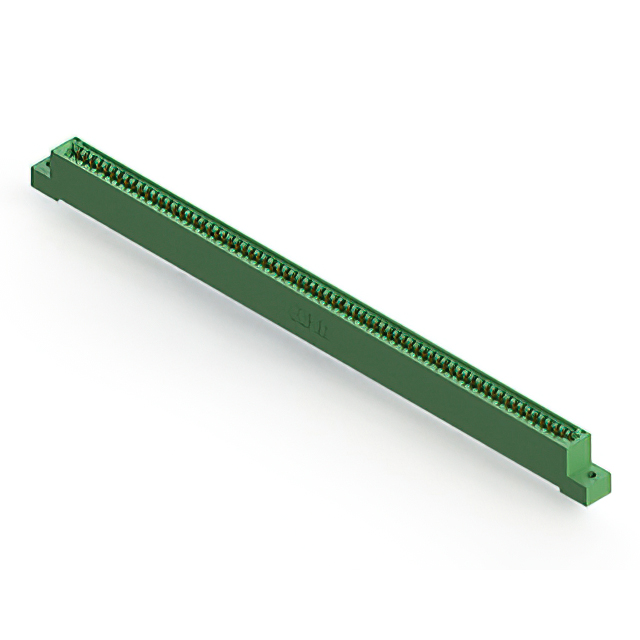

EDAC Inc. 345-072-521-102	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	72	Through Hole	Solder	10 Áin	0.25 Ám	1	-40 °C	105 ░C	Copper Alloy	Single	Gold	Cantilever	Non Specified - Single Edge	Female	Flush Mount Top Opening Unthreaded	2.54 mm	0.1 in	1	Polyester Thermoplastic			3.25 mm	0.128 "

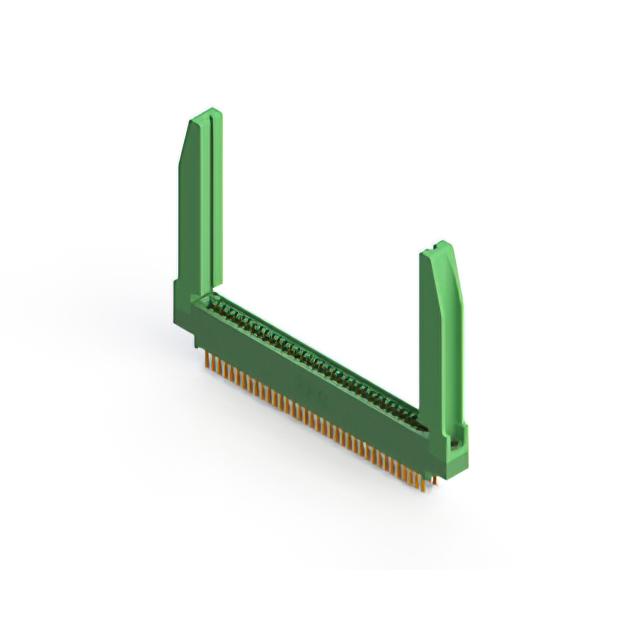

EDAC Inc. 345-072-544-878	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green		Through Hole	Wire Wrap	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Copper Alloy	Dual	Gold	Cantilever	Non Specified - Dual Edge	Female	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	2	Polyester Thermoplastic	Card Guides	36
EDAC Inc. 345-072-520-804	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green		Through Hole	Solder	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Copper Alloy	Dual	Gold	Cantilever	Non Specified - Dual Edge	Female	Top Mount Opening Unthreaded	2.54 mm	0.1 in	2	Polyester Thermoplastic		36	3.96 mm	0.156 in
EDAC Inc. 345-072-542-208	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green		Through Hole	Wire Wrap	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Copper Alloy	Dual	Gold	Cantilever	Non Specified - Dual Edge	Female	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	2	Polyester Thermoplastic		36
EDAC Inc. 345-072-542-478	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	72	Through Hole	Wire Wrap	10 Áin	0.25 Ám	1	-40 °C	105 ░C	Copper Alloy	Single	Gold	Cantilever	Non Specified - Single Edge	Female	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	1	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-072-560-203	72	1.37 mm	0.054 "	1.78 mm	0.07 in	Green		Board Edge Straddle Mount	Solder	10 Áin	0.25 Ám	2	-40 °C	105 ░C	Copper Alloy	Dual	Gold	Cantilever	Non Specified - Dual Edge	Female	Floating Bobbin Flush Mount	2.54 mm	0.1 in	2	Polyester Thermoplastic	Card Extender	36	2.95 mm	0.116 in
