UF3C065030 Series
Manufacturer: Qorvo
Beta
⌘K

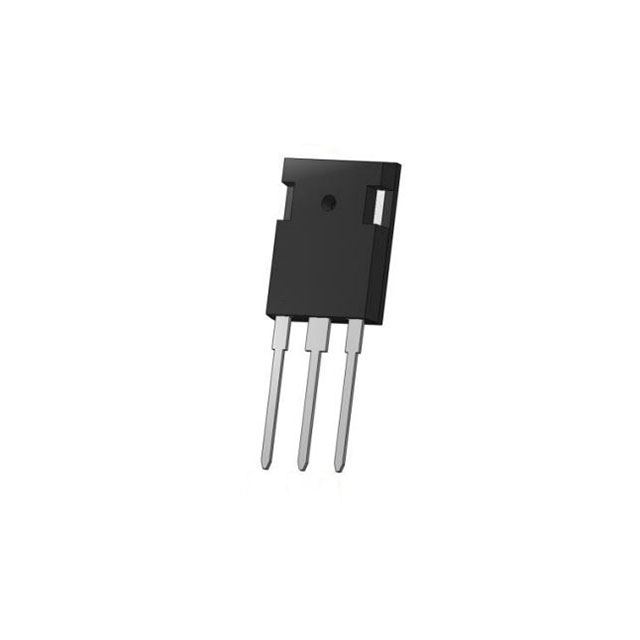

SICFET N-CH 650V 85A TO247-3
| Part | Current - Continuous Drain (Id) @ 25°C | Power Dissipation (Max) | Drive Voltage (Max Rds On, Min Rds On) | Mounting Type | Input Capacitance (Ciss) (Max) @ Vds | Operating Temperature [Max] | Operating Temperature [Min] | Technology | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Vgs (Max) | Gate Charge (Qg) (Max) @ Vgs [Max] | FET Type | Supplier Device Package | Drain to Source Voltage (Vdss) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qorvo | 85 A | 441 W | 12 V | Through Hole | 1500 pF | 175 °C | -55 °C | SiCFET (Cascode SiCJFET) | 35 mOhm | 6 V | 25 V | 51 nC | N-Channel | TO-247-3 | 650 V | TO-247-3 |
