SSL-LX5063 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED YELLOW CLEAR T-1 3/4 T/H

Part	Lens Style	Current - Test	Mounting Type	Lens Transparency	Millicandela Rating	Color	Voltage - Forward (Vf) (Typ)	Package / Case	Configuration	Viewing Angle	Wavelength - Peak	Lens Size	Lens Size	Height (Max) [z]	Lens Color	Supplier Device Package	Current - Test [custom]	Current - Test [custom]
Lumex Opto/Components Inc. SSL-LX5063YT-TR	Round with Domed Top	20 mA	Through Hole	Clear	40 mcd	Yellow	2.1 V	Radial	Standard	30 °	585 nm	5 mm	T-1 3/4	6 mm	Yellow	T-1 3/4

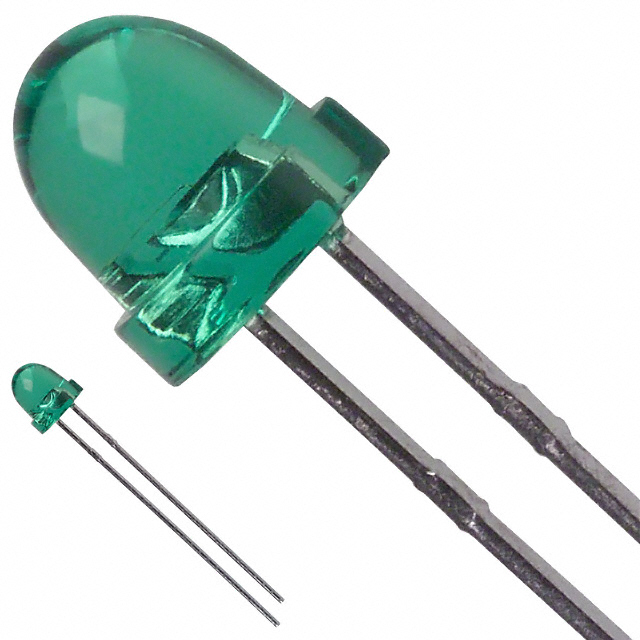

Lumex Opto/Components Inc. SSL-LX5063GT	Round with Domed Top	20 mA	Through Hole	Clear	100 mcd	Green	2.2 V	Radial	Standard	30 °	565 nm	5 mm	T-1 3/4	6 mm	Green	T-1 3/4

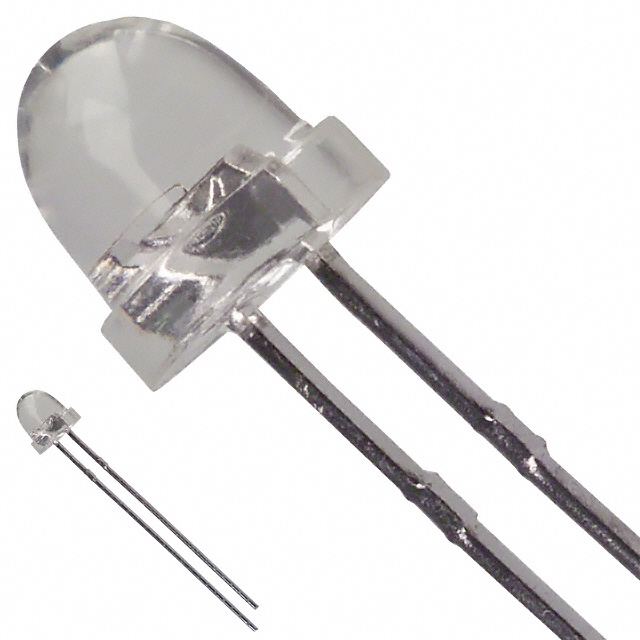

Lumex Opto/Components Inc. SSL-LX5063YC	Round with Domed Top	20 mA	Through Hole	Clear	40 mcd	Yellow	2.1 V	Radial	Standard	30 °	585 nm	5 mm	T-1 3/4	6 mm	Colorless	T-1 3/4

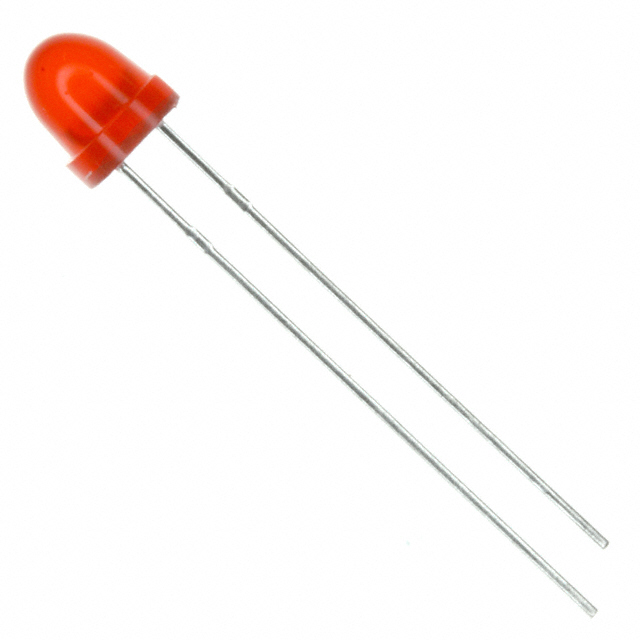

Lumex Opto/Components Inc. SSL-LX5063ID	Round with Domed Top	20 mA	Through Hole	Diffused	40 mcd	Red	2 V	Radial	Standard	60 °	635 nm	5 mm	T-1 3/4	6 mm	Red	T-1 3/4
Lumex Opto/Components Inc. SSL-LX5063IGW	Round with Domed Top		Through Hole	Diffused	20 mcd 30 mcd	Green Red	2 V 2.2 V	Radial	Bidirectional	60 °	565 nm 635 nm	5 mm	T-1 3/4	6 mm	White	T-1 3/4	20 mA	20 mA

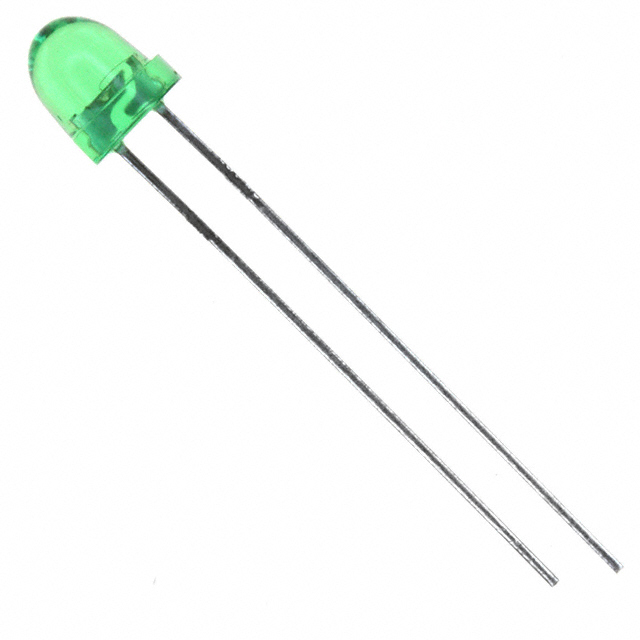

Lumex Opto/Components Inc. SSL-LX5063SGT	Round with Domed Top	20 mA	Through Hole	Clear	200 mcd	Green	2.2 V	Radial	Standard	30 °	565 nm	5 mm	T-1 3/4	6 mm	Green	T-1 3/4

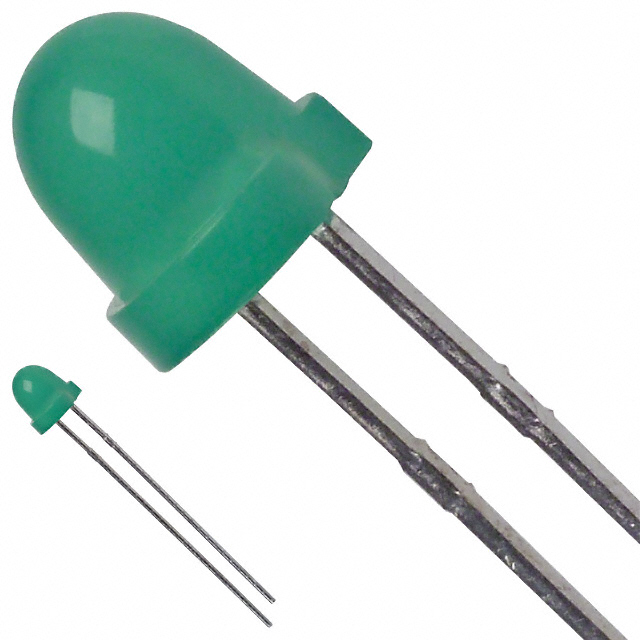

Lumex Opto/Components Inc. SSL-LX5063GD	Round with Domed Top	20 mA	Through Hole	Diffused	30 mcd	Green	2.2 V	Radial	Standard	60 °	565 nm	5 mm	T-1 3/4	6 mm	Green	T-1 3/4

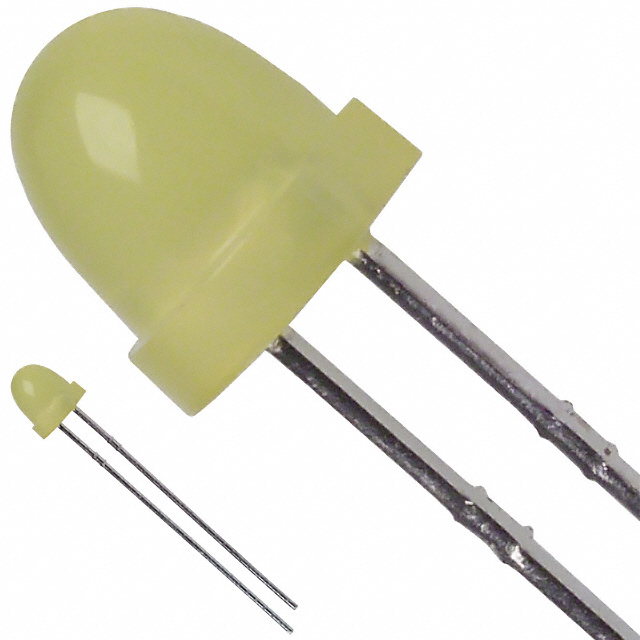

Lumex Opto/Components Inc. SSL-LX5063YD	Round with Domed Top	20 mA	Through Hole	Diffused	20 mcd	Yellow	2.1 V	Radial	Standard	60 °	585 nm	5 mm	T-1 3/4	6 mm	Yellow	T-1 3/4

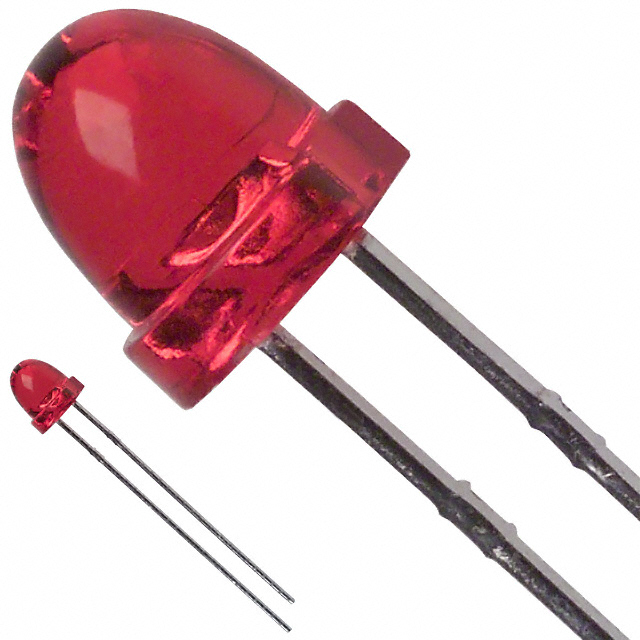

Lumex Opto/Components Inc. SSL-LX5063IT	Round with Domed Top	20 mA	Through Hole	Clear	50 mcd	Red	2 V	Radial	Standard	30 °	635 nm	5 mm	T-1 3/4	6 mm	Red	T-1 3/4
Lumex Opto/Components Inc. SSL-LX5063LGT	Round with Domed Top	20 mA	Through Hole	Clear	40 mcd	Green	2.2 V	Radial	Standard	30 °	565 nm	5 mm	T-1 3/4	6 mm	Green	T-1 3/4
