221393 Series

7.50mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, Left Front Terminal, 9 Circuits

Manufacturer: Molex

Catalog

7.50mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, Left Front Terminal, 9 Circuits

Part	Voltage	Number of Levels	Positions Per Level	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Mating Orientation	Mating Orientation	Wire Termination	Features	Pitch	Pitch	Color	Current	Positions Per Level [custom]

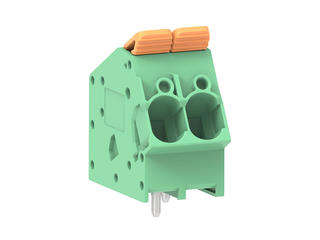

Molex 2213930002	1 kV	1	2	24 AWG	8 AWG	Through Hole	30 °	150 °	Leg Spring Push-In Spring	Lever Actuated	0.295 in	7.5 mm	Green	38 A
Molex 2213930003	1 kV	1	3	24 AWG	8 AWG	Through Hole	30 °	150 °	Leg Spring Push-In Spring	Lever Actuated	0.295 in	7.5 mm	Green	38 A
Molex 2213930011	1 kV	1	11	24 AWG	8 AWG	Through Hole	30 °	150 °	Leg Spring Push-In Spring	Lever Actuated	0.295 in	7.5 mm	Green	38 A
Molex 2213930007	1 kV	1		24 AWG	8 AWG	Through Hole	30 °	150 °	Leg Spring Push-In Spring	Lever Actuated	0.295 in	7.5 mm	Green	38 A	7

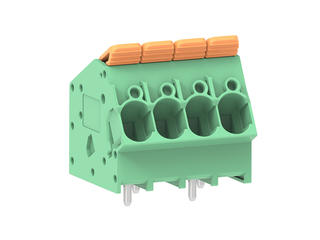

Molex 2213930004	1 kV	1	4	24 AWG	8 AWG	Through Hole	30 °	150 °	Leg Spring Push-In Spring	Lever Actuated	0.295 in	7.5 mm	Green	38 A

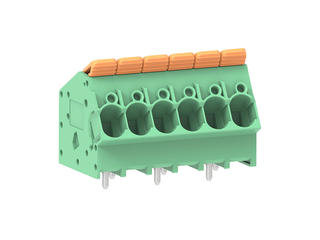

Molex 2213930006	1 kV	1	6	24 AWG	8 AWG	Through Hole	30 °	150 °	Leg Spring Push-In Spring	Lever Actuated	0.295 in	7.5 mm	Green	38 A
Molex 2213930009	1 kV	1	9	24 AWG	8 AWG	Through Hole	30 °	150 °	Leg Spring Push-In Spring	Lever Actuated	0.295 in	7.5 mm	Green	38 A

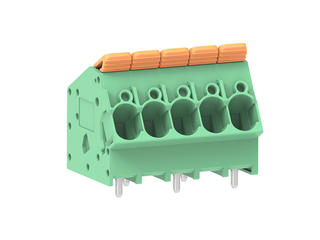

Molex 2213930005	1 kV	1	5	24 AWG	8 AWG	Through Hole	30 °	150 °	Leg Spring Push-In Spring	Lever Actuated	0.295 in	7.5 mm	Green	38 A

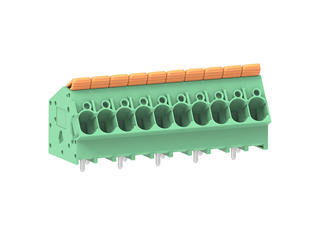

Molex 2213930010	1 kV	1	10	24 AWG	8 AWG	Through Hole	30 °	150 °	Leg Spring Push-In Spring	Lever Actuated	0.295 in	7.5 mm	Green	38 A

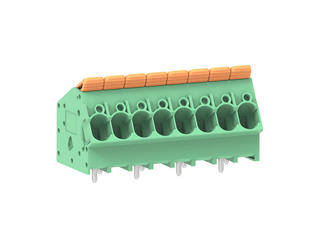

Molex 2213930008	1 kV	1	8	24 AWG	8 AWG	Through Hole	30 °	150 °	Leg Spring Push-In Spring	Lever Actuated	0.295 in	7.5 mm	Green	38 A

7.50mm Pitch Lever Activated Fixed Mount PCB Terminal Block, 35° Wire Entry, Left Front Terminal, 9 Circuits
