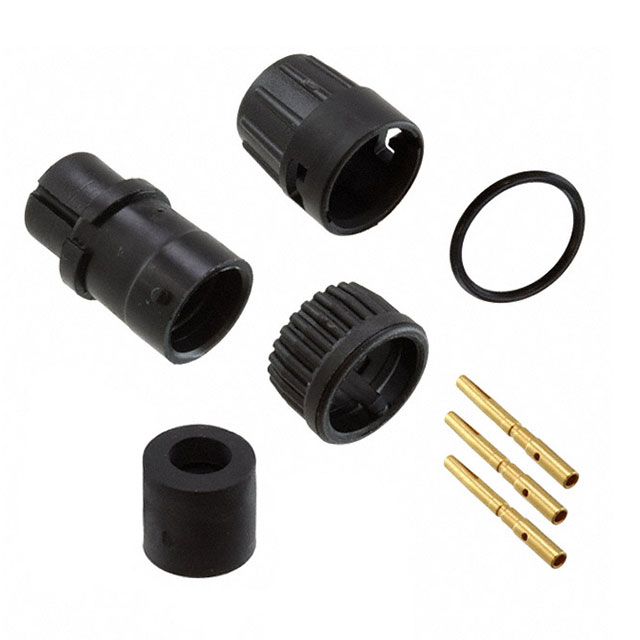

6280-3SG Series
Manufacturer: Conxall/Switchcraft
Catalog
CONN PLUG FMALE 3POS GOLD CRIMP
| Part | Current Rating (Amps) | Orientation | Applications | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Shielding | Connector Type | Contact Finish - Mating | Primary Material | Voltage Rating | Mounting Type | Features | Backshell Material, Plating | Termination | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Ingress Protection | Color | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft | Varies by Wire Gauge | Keyed | Automotive Communication Systems Instrumentation | Brass | -40 °C | 115 °C | Bayonet Lock | Unshielded | Female Sockets Plug | Gold | Plastic | 600 V | Free Hanging (In-Line) | Backshell | Nylon Polyamide (PA) | Crimp | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | Weathertight | Black | |||||
Conxall/Switchcraft | Varies by Wire Gauge | Keyed | Automotive Communication Systems Instrumentation | Brass | -40 °C | 115 °C | Bayonet Lock | Unshielded | Female Sockets Plug | Gold | Plastic | 600 V | Free Hanging (In-Line) | Backshell | Nylon Polyamide (PA) | Crimp | Weathertight | Black | 2.29 mm | 0.09 in 0.14 in | 3.56 mm | ||||||
 Conxall/Switchcraft | Varies by Wire Gauge | Keyed | Automotive Communication Systems Instrumentation | Brass | -40 °C | 115 °C | Bayonet Lock | Unshielded | Female Sockets Plug | Gold | Plastic | 600 V | Free Hanging (In-Line) | Backshell | Nylon Polyamide (PA) | Crimp | Weathertight | Black | 0.15 in 0.17 in | 3.81 mm 4.32 mm |
