TAN1105 Series
Manufacturer: Stanley Electric Co
Beta
⌘K

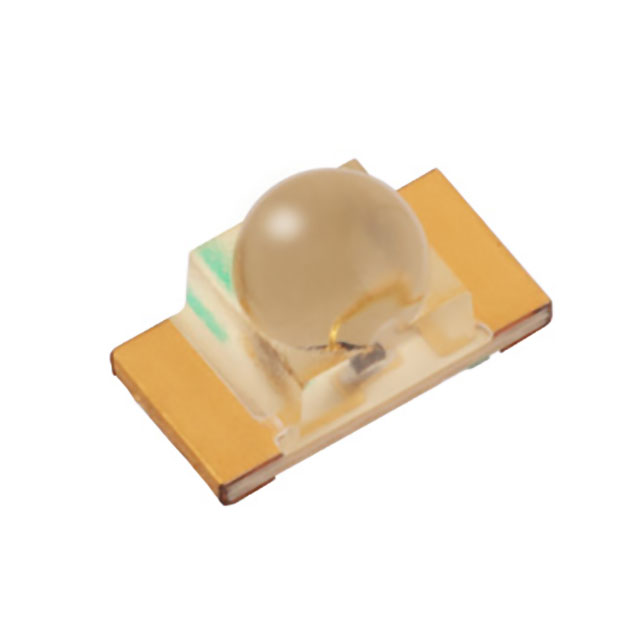

EMITTER IR 940NM 50MA SMD
| Part | Radiant Intensity (Ie) Min @ If | Package / Case | Mounting Type | Wavelength | Viewing Angle | Current - DC Forward (If) (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Voltage - Forward (Vf) (Typ) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | |||||||||||
 Stanley Electric Co | 2.4 mW/sr | 1206 (3216 Metric) | Surface Mount | 940 nm | 30 ° | 50 mA | 85 °C | -30 °C | Top View | 1.22 V | Infrared (IR) |
