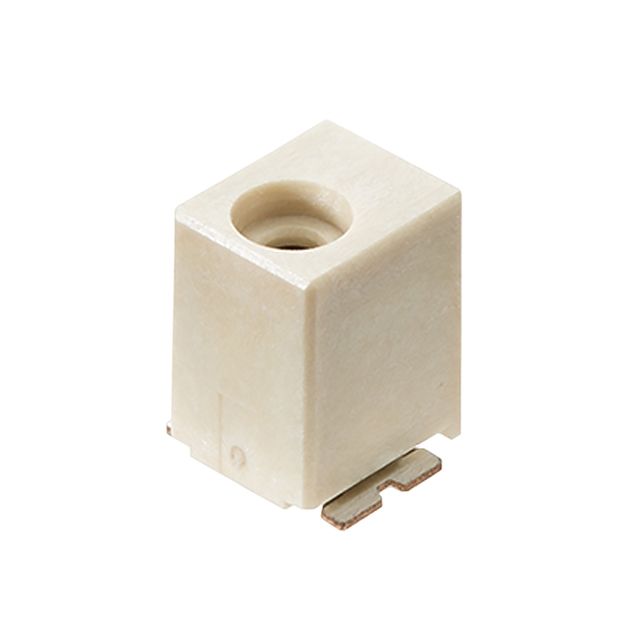

Vertical Lite-Trap SMT Wire-to-Board Connector, 1 Circuit
Vertical Lite-Trap SMT Wire-to-Board Connector, 1 Circuit
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Voltage Rating | Current Rating (Amps) | Contact Material | Termination | Connector Type | Housing Material | Housing Color | Number of Positions | Mounting Type | Contact Finish | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | -40 °C | 130 °C | 18 AWG | 431 V | 3 A | Phosphor Bronze | Solder | Poke-In Wire Receptacle | Liquid Crystal Polymer (LCP) | Natural | 1 | Surface Mount | Tin | Board to Cable/Wire |
