6609007 Series
Manufacturer: TE Connectivity Corcom Filters
Beta
⌘K

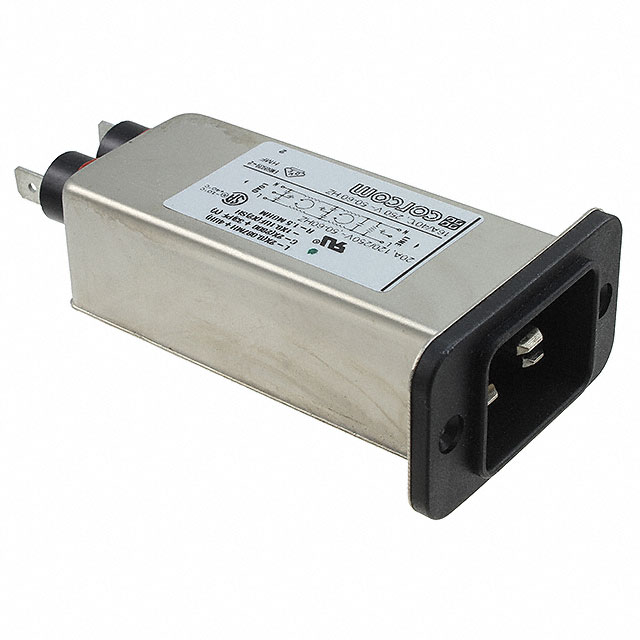

PWR ENT RCPT IEC320-C20 PANEL QC
| Part | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating - Appliance Inlet | Approval Agency | Termination | Termination | Termination | Connector Style | Panel Thickness [Min] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Accomodates a Fuse | Mounting Type | Filter Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Corcom Filters | 120 VAC | 250 VAC | 26.75 mm | 36.83 mm | 20 A | CSA UL VDE | 6.3 mm | Quick Connect | 0.25 " | IEC 320-C20 | 0.031 " | 0.79 mm | 1.73 mm | 0.068 " | Panel Mount Snap-In | Filtered (EMI RFI) - Commercial | Receptacle Male Blades | |
 TE Connectivity Corcom Filters | 120 VAC | 250 VAC | 26.75 mm | 36.83 mm | 20 A | CSA UL VDE | 6.3 mm | Quick Connect | 0.25 " | IEC 320-C20 | Flange Panel Mount | Filtered (EMI RFI) - Commercial | Receptacle Male Blades |
