PEC26 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Number of Positions	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Fastening Type	Insulation Height	Insulation Height	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Rows	Connector Type	Contact Type	Contact Shape	Material Flammability Rating	Termination	Number of Positions Loaded	Style	Pitch - Mating	Pitch - Mating	Contact Length - Post [custom]	Contact Length - Post [custom]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length

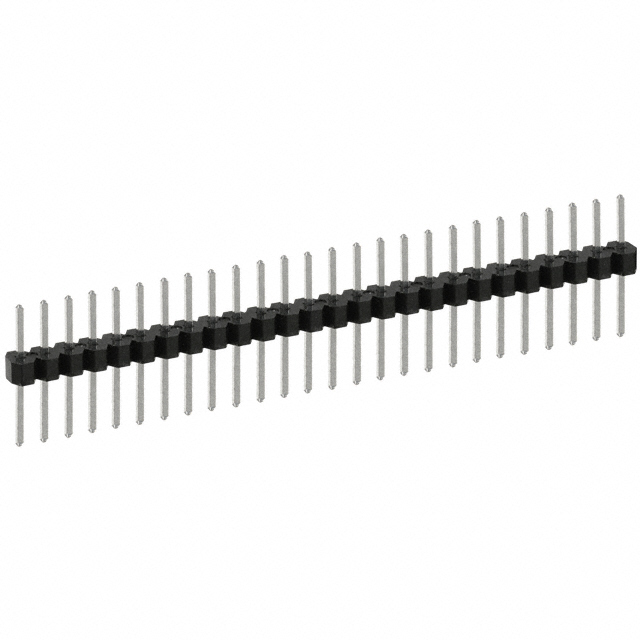

Sullins Connector Solutions PEC26SACN	2.54 µm	100 µin	Through Hole	Tin	26	0.23 in	5.84 mm	Unshrouded	8.13 mm	0.32 in	Push-Pull	0.1 in	2.54 mm	3 A	16.51 mm	0.65 in	Phosphor Bronze	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	Black	1	Header Breakaway	Male Pin	Square	UL94 V-0	Solder	All	Board to Board Cable	0.1 "	2.54 mm

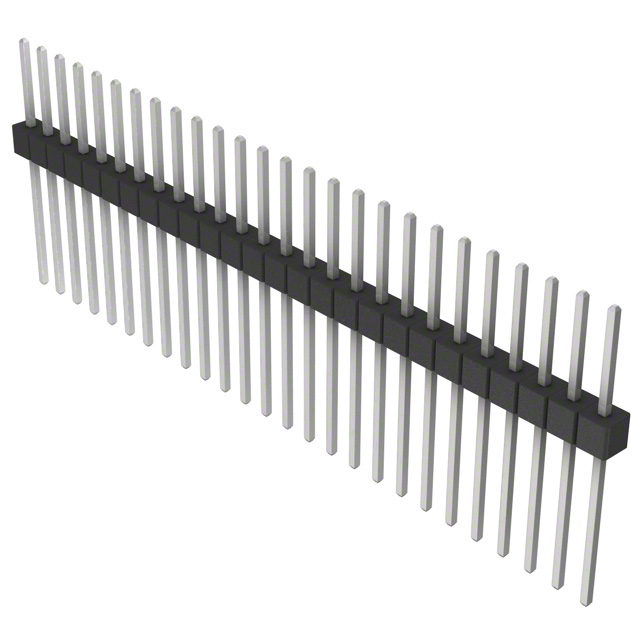

Sullins Connector Solutions PEC26SFEN	2.54 µm	100 µin	Through Hole	Tin	26	0.318 in	8.08 mm	Unshrouded	13.21 mm	0.52 in	Push-Pull	0.1 in	2.54 mm	3 A	23.83 mm	0.938 in	Phosphor Bronze	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	Black	1	Header Breakaway	Male Pin	Square	UL94 V-0	Solder	All	Board to Board Cable	0.1 "	2.54 mm

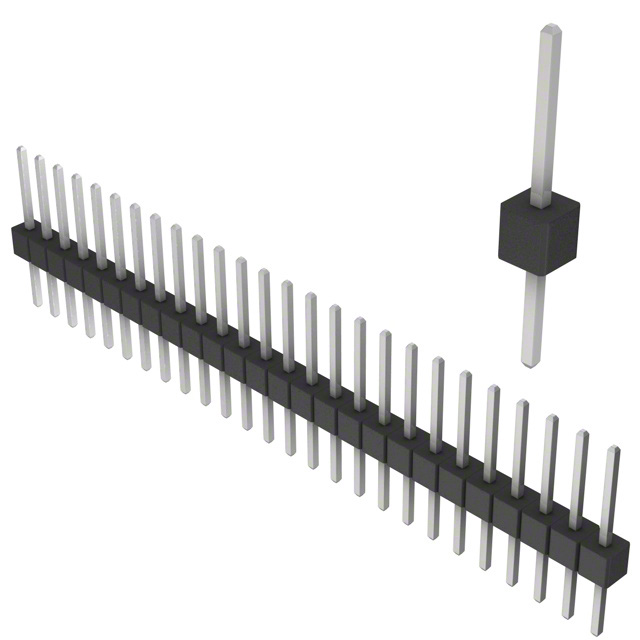

Sullins Connector Solutions PEC26SFBN	2.54 µm	100 µin	Through Hole	Tin	26	0.318 in	8.08 mm	Unshrouded	5.58 mm	0.22 in	Push-Pull	0.1 in	2.54 mm	3 A	16.21 mm	0.638 in	Phosphor Bronze	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	Black	1	Header Breakaway	Male Pin	Square	UL94 V-0	Solder	All	Board to Board Cable	0.1 "	2.54 mm

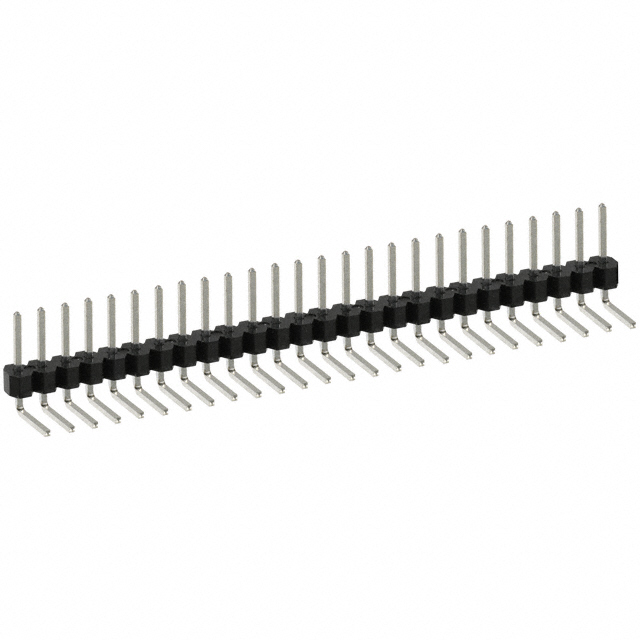

Sullins Connector Solutions PEC26SBBN	2.54 µm	100 µin	Right Angle Through Hole	Tin	26	0.23 in	5.84 mm	Unshrouded			Push-Pull	0.14 in	3.56 mm	3 A			Phosphor Bronze	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	Black	1	Header Breakaway	Male Pin	Square	UL94 V-0	Solder	All	Board to Board Cable	0.1 "	2.54 mm	5.08 mm	0.2 "
Sullins Connector Solutions PEC26DFDN	2.54 µm	100 µin	Through Hole	Tin	52	0.318 in	8.08 mm	Unshrouded	10.67 mm	0.42 in	Push-Pull	0.1 in	2.54 mm	3 A	21.29 mm	0.838 in	Phosphor Bronze	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	Black		Header Breakaway	Male Pin	Square	UL94 V-0	Solder	All	Board to Board Cable	0.1 "	2.54 mm			2	0.1 in	2.54 mm
Sullins Connector Solutions PEC26DBCN	2.54 µm	100 µin	Right Angle Through Hole	Tin	52	0.23 in	5.84 mm	Unshrouded	7.62 mm	0.3 in	Push-Pull			3 A			Phosphor Bronze	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	Black		Header Breakaway	Male Pin	Square	UL94 V-0	Solder	All	Board to Board Cable	0.1 "	2.54 mm			2	0.1 in	2.54 mm	6.1 mm	0.24 in

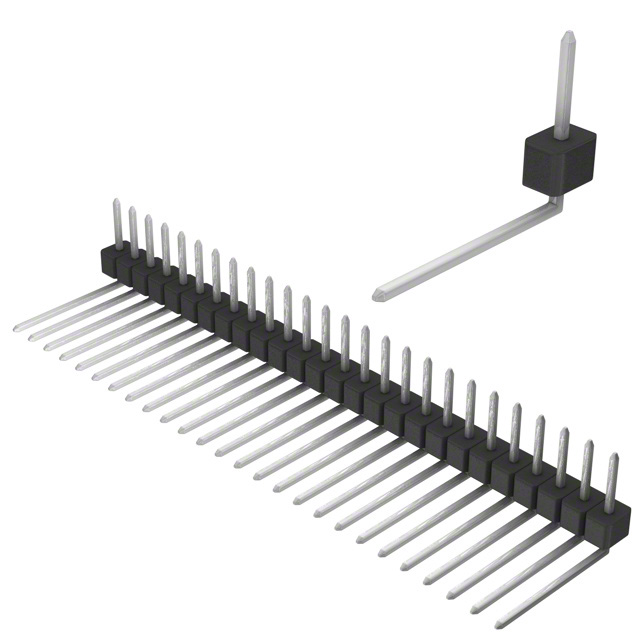

Sullins Connector Solutions PEC26SBEN	2.54 µm	100 µin	Right Angle Through Hole	Tin	26	0.23 in	5.84 mm	Unshrouded	12.7 mm	0.5 "	Push-Pull	0.14 in	3.56 mm	3 A			Phosphor Bronze	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	Black	1	Header Breakaway	Male Pin	Square	UL94 V-0	Solder	All	Board to Board Cable	0.1 "	2.54 mm
Sullins Connector Solutions PEC26DFAN	2.54 µm	100 µin	Through Hole	Tin	52	0.318 in	8.08 mm	Unshrouded	3.05 mm	0.12 in	Push-Pull	0.1 in	2.54 mm	3 A			Phosphor Bronze	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	Black		Header Breakaway	Male Pin	Square	UL94 V-0	Solder	All	Board to Board Cable	0.1 "	2.54 mm			2	0.1 in	2.54 mm			13.67 mm	0.538 in
Sullins Connector Solutions PEC26DBBN	2.54 µm	100 µin	Right Angle Through Hole	Tin	52	0.23 in	5.84 mm	Unshrouded			Push-Pull			3 A			Phosphor Bronze	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	Black		Header Breakaway	Male Pin	Square	UL94 V-0	Solder	All	Board to Board Cable	0.1 "	2.54 mm	5.08 mm	0.2 "	2	0.1 in	2.54 mm	6.1 mm	0.24 in

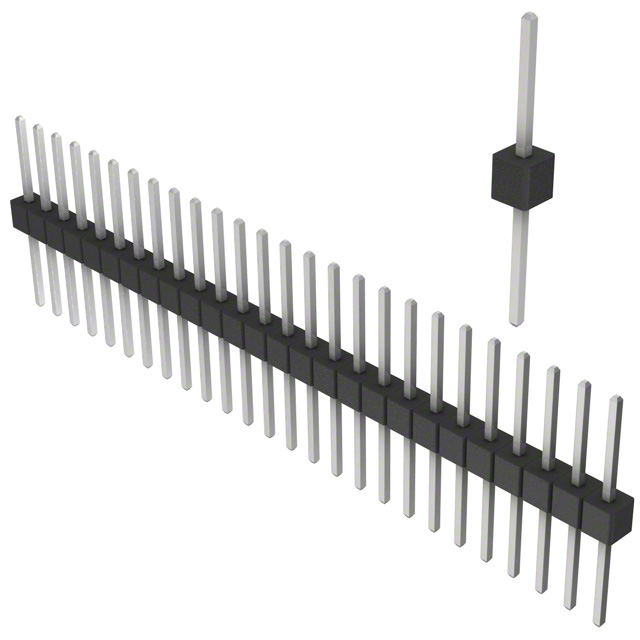

Sullins Connector Solutions PEC26SFCN	2.54 µm	100 µin	Through Hole	Tin	26	0.318 in	8.08 mm	Unshrouded	8.13 mm	0.32 in	Push-Pull	0.1 in	2.54 mm	3 A	18.75 mm		Phosphor Bronze	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	100 çin	2.54 çm	Black	1	Header Breakaway	Male Pin	Square	UL94 V-0	Solder	All	Board to Board Cable	0.1 "	2.54 mm										0.738 in
