SG7050VAN Series

Manufacturer: EPSON

Catalog

SG7050VAN 125.000000M-KJGAB: XTA

Part	Current - Supply (Disable) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Current - Supply (Max) [Max]	Mounting Type	Base Resonator [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Output	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Function	Frequency Stability	Supplier Device Package

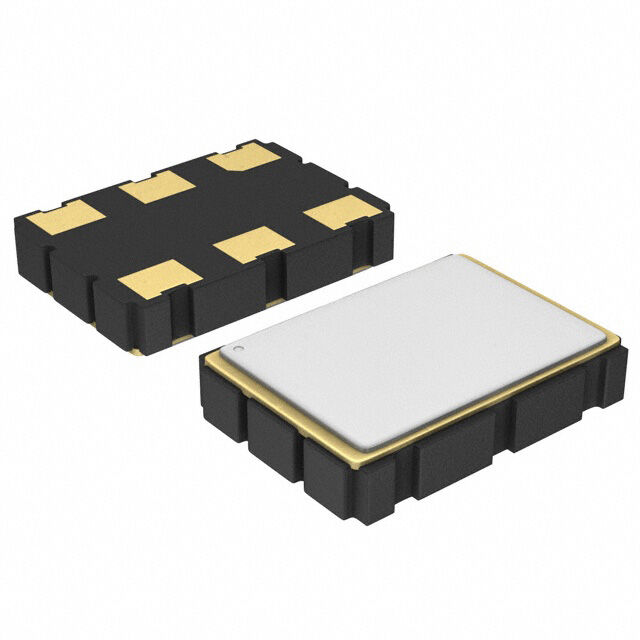

EPSON SG7050VAN 125.000000M-KJGAB	20 mA	85 °C	-40 C	125 MHz	30 mA	Surface Mount	Crystal	1.6 mm	0.063 in	6-SMD No Lead	2.5 V	3.3 V	XO (Standard)	LVDS	5 mm	7 mm	0.197 "	0.276 "	Enable/Disable	50 ppm	6-SMD (7x5)
EPSON SG7050VAN 125.000000M-KEGA0		85 °C	-40 C	125 MHz	30 mA	Surface Mount	Crystal	1.6 mm	0.063 in	6-SMD No Lead	2.5 V	3.3 V	XO (Standard)	LVDS	5 mm	7 mm	0.197 "	0.276 "	Enable/Disable	30 ppm	6-SMD (7x5)
EPSON SG7050VAN 125.000000M-KJBAB	20 mA	85 °C	-40 C	125 MHz	30 mA	Surface Mount	Crystal	1.6 mm	0.063 in	6-SMD No Lead	2.5 V	3.3 V	XO (Standard)	LVDS	5 mm	7 mm	0.197 "	0.276 "	Enable/Disable	50 ppm	6-SMD (7x5)
