M85049/69 Series

Manufacturer: Amphenol Interconnect India

Catalog

CONN BACKSHELL ADPT SZ15 D BLACK

Part	Color	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Shell Size - Insert	Cable Exit	Features	Shielding	Type	For Use With/Related Products	Cable Opening [custom]	Cable Opening [custom]	Material	Shell Size - Insert [custom]	Shell Size - Insert [custom]	Thread Size
Amphenol Interconnect India M85049/69-15ZD	Black	Zinc Cobalt	29.21 mm	1.15 in	15	D	180 °	Drain Hole	Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.63 in	16 mm	Aluminum Alloy
Amphenol Interconnect India M85049/69-23Z	Black	Zinc Cobalt	41.91 mm	1.65 "	23	H	180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	1.06 in	26.92 mm	Aluminum Alloy
Amphenol Interconnect India M85049/69-17ZD	Black	Zinc Cobalt	31.75 mm	1.25 in		17 E	180 °	Drain Hole	Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.75 in	19.05 mm	Aluminum Alloy

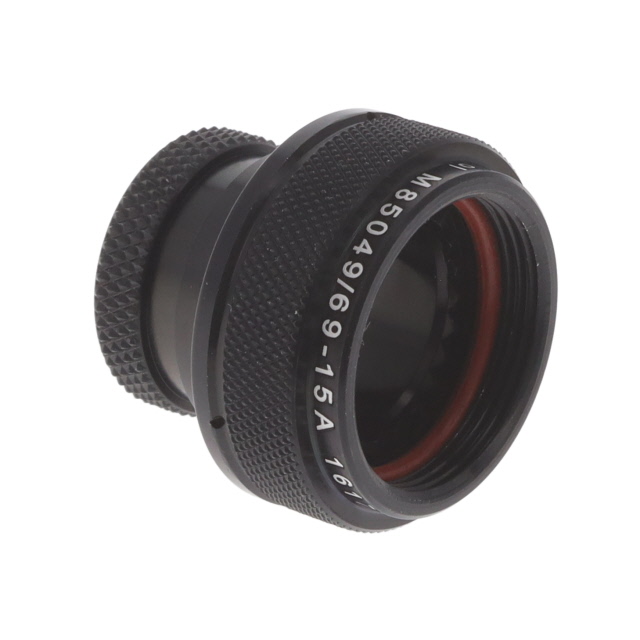

Amphenol Interconnect India M85049/69-15A	Black	Anodized	29.21 mm	1.15 in	15	D	180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.625 in	15.88 mm	Aluminum Alloy
Amphenol Interconnect India M85049/69-9ZD	Black	Zinc Cobalt	19.05 mm	0.75 in			180 °	Drain Hole	Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.25 in	6.35 mm	Aluminum Alloy	9	A

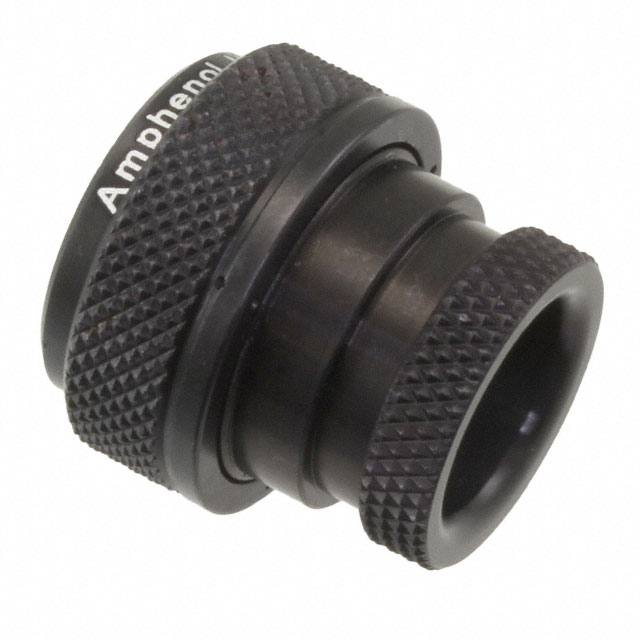

Amphenol Interconnect India M85049/69-13A	Black	Anodized			13		180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.5 in	12.7 mm	Aluminum Alloy			M18x1
Amphenol Interconnect India M85049/69-19Z	Black	Zinc Cobalt	35.56 mm	1.4 in	19	F	180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.81 in	20.57 mm	Aluminum Alloy

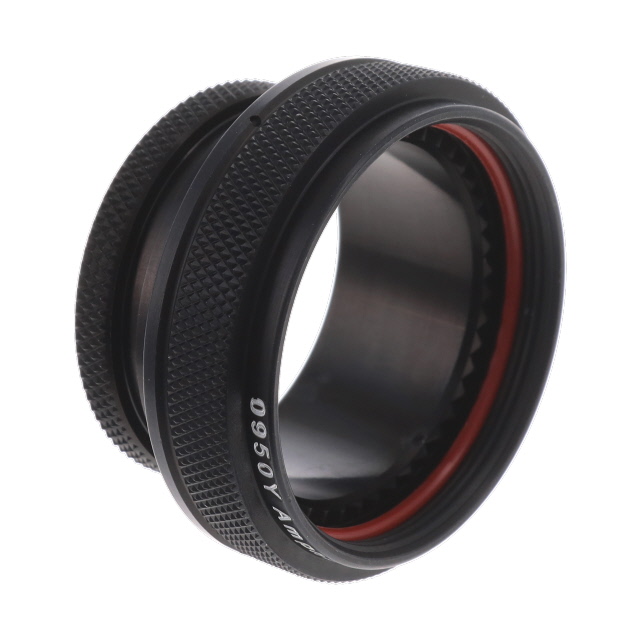

Amphenol Interconnect India M85049/69-25A	Black	Anodized	46.99 mm	1.85 "	25	J	180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV			Aluminum Alloy

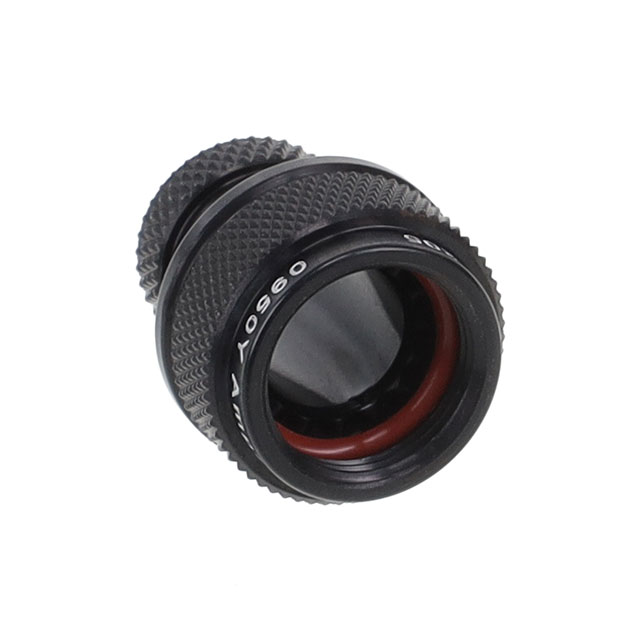

Amphenol Interconnect India M85049/69-11A	Black	Anodized	21.59 mm	0.85 in	11	B	180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.375 in	9.52 mm	Aluminum Alloy

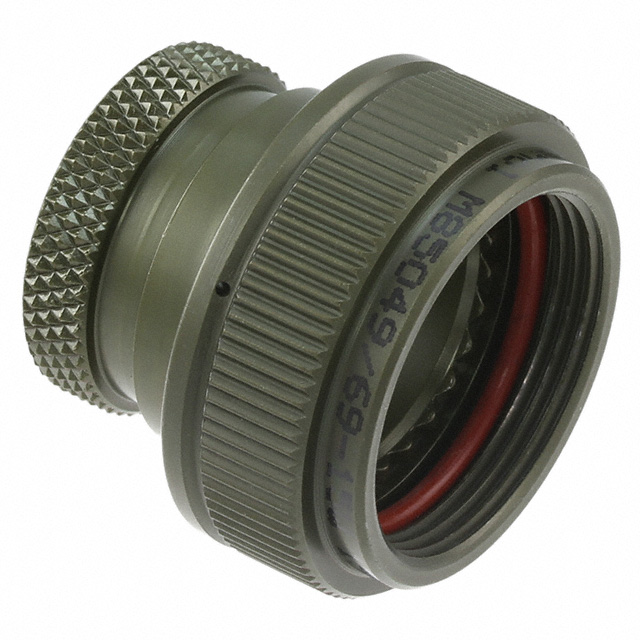

Amphenol Interconnect India M85049/69-15W	Olive	Cadmium Nickel			15		180 °		Unshielded	Backshell Heat Shrink Adapter	MIL-DTL-38999 Series III IV	0.625 in	15.88 mm	Aluminum Alloy
