76RSB Series

Catalog

SWITCH ROCKER DIP SPST 0.15A 30V

Part	Length [x]	Length [x]	Mechanical Life	Electrical Life	Body Material	Circuit	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Contact Material	Actuator Level	Pitch	Pitch	Features	Contact Finish	Termination Style	Voltage Rating	Actuator Type	Length	Length

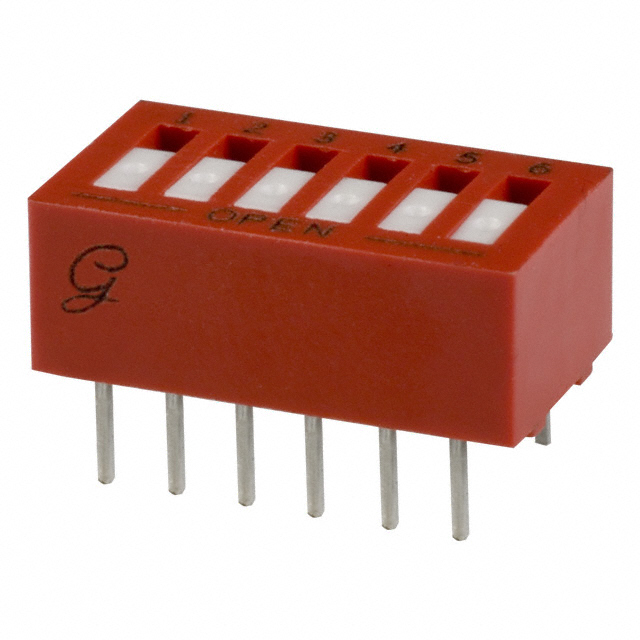

Grayhill Inc. 76RSB06SLT	0.68 in	17.27 mm	2000 Cycles	2000 Steps	Thermoplastic	SPST	Through Hole	6	85 °C	-40 C	0.292 in	7.41 mm	Copper Alloy	Flush Recessed	2.54 mm	0.1 "	Position Identification Line Tape Seal	Gold	PC Pin	30 VDC	Rocker
Grayhill Inc. 76RSB06LT	0.68 in	17.27 mm	2000 Cycles	2000 Steps	Thermoplastic	SPST	Through Hole	6	85 °C	-40 C	0.292 in	7.41 mm	Copper Alloy	Flush Recessed	2.54 mm	0.1 "	Position Identification Line	Gold	PC Pin	30 VDC	Rocker

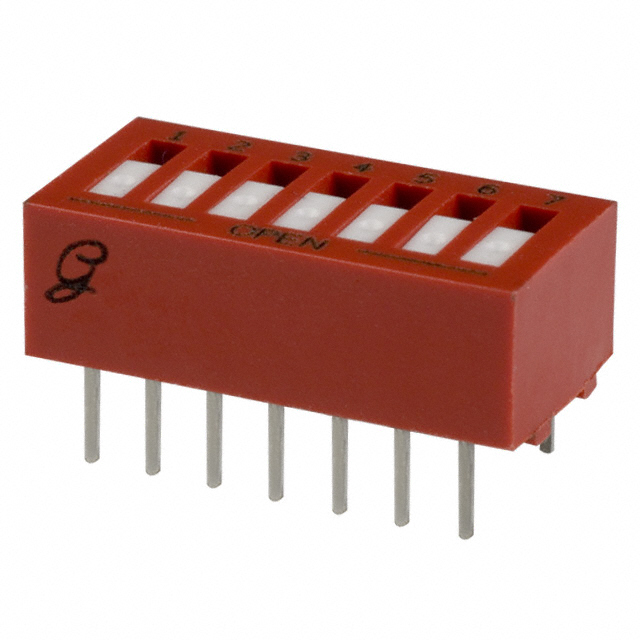

Grayhill Inc. 76RSB07ST			2000 Cycles	2000 Steps	Thermoplastic	SPST	Through Hole	7	85 °C	-40 C	0.292 in	7.41 mm	Copper Alloy	Flush Recessed	2.54 mm	0.1 "	Tape Seal	Gold	PC Pin	30 VDC	Rocker

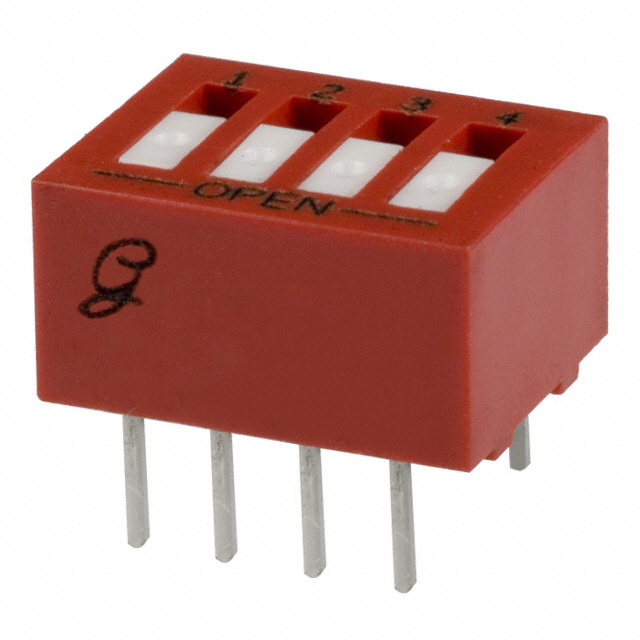

Grayhill Inc. 76RSB04ST			2000 Cycles	2000 Steps	Thermoplastic	SPST	Through Hole	4	85 °C	-40 C	0.292 in	7.41 mm	Copper Alloy	Flush Recessed	2.54 mm	0.1 "	Tape Seal	Gold	PC Pin	30 VDC	Rocker	12.19 mm	0.48 in
Grayhill Inc. 76RSB06T	0.68 in	17.27 mm	2000 Cycles	2000 Steps	Thermoplastic	SPST	Through Hole	6	85 °C	-40 C	0.292 in	7.41 mm	Copper Alloy	Flush Recessed	2.54 mm	0.1 "		Gold	PC Pin	30 VDC	Rocker

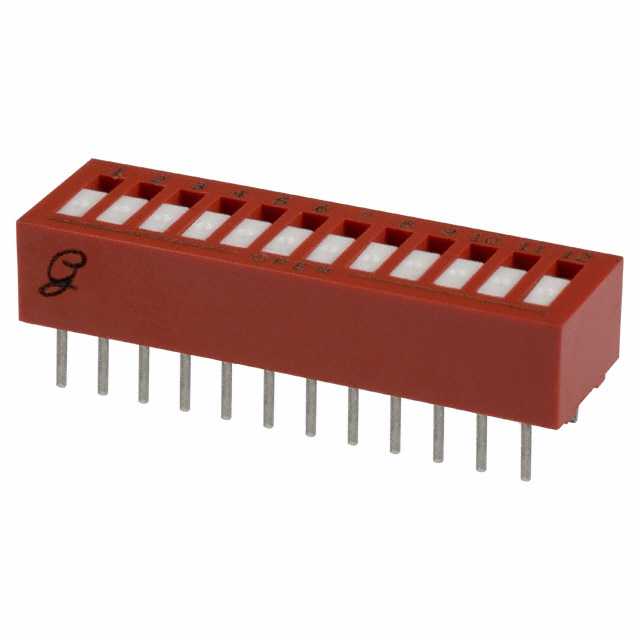

Grayhill Inc. 76RSB12T	1.28 in		2000 Cycles	2000 Steps	Thermoplastic	SPST	Through Hole	12	85 °C	-40 C	0.292 in	7.41 mm	Copper Alloy	Flush Recessed	2.54 mm	0.1 "		Gold	PC Pin	30 VDC	Rocker	32.51 mm
Grayhill Inc. 76RSB06ST	0.68 in	17.27 mm	2000 Cycles	2000 Steps	Thermoplastic	SPST	Through Hole	6	85 °C	-40 C	0.292 in	7.41 mm	Copper Alloy	Flush Recessed	2.54 mm	0.1 "	Tape Seal	Gold	PC Pin	30 VDC	Rocker
