ATA00C Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 15V 3W
| Part | Mounting Type | Type | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Voltage - Isolation | Power (Watts) | Number of Outputs | Efficiency | Applications | Features | Package / Case | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

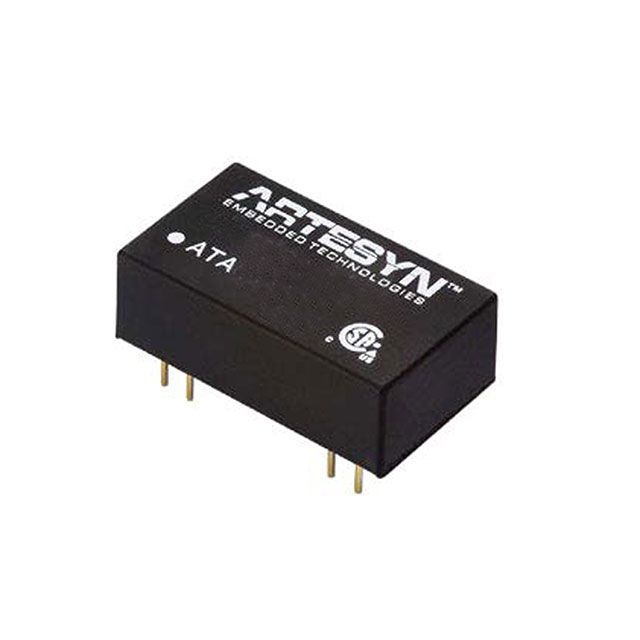

 ARTESYN / Advanced Energy | Through Hole | Isolated Module | 9 V | 200 mA | 36 V | 15 V | 1.5 kV | 3 W | 1 | 80 % | ITE (Commercial) | OCP Remote On/Off SCP | 16-DIP Module 7 Leads | 0.94 in | 0.31 " | 0.54 in | 8 mm | 13.7 mm | 23.9 mm | 85 °C | -40 C |

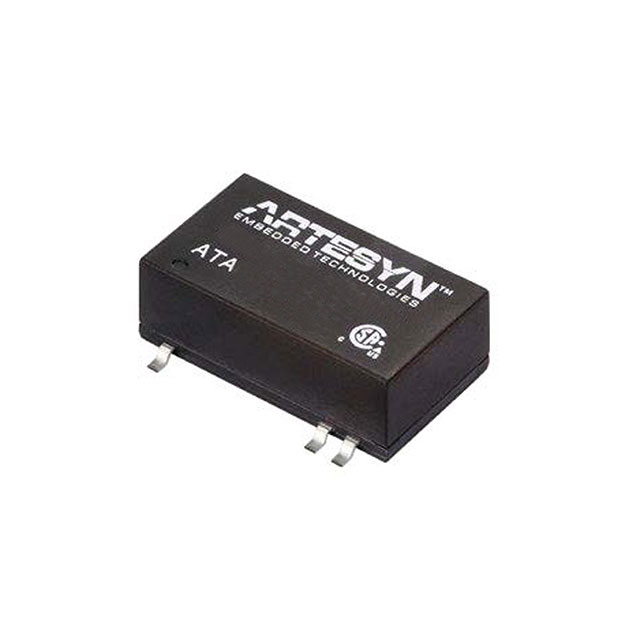

 ARTESYN / Advanced Energy | Surface Mount | Isolated Module | 9 V | 200 mA | 36 V | 15 V | 1.5 kV | 3 W | 1 | 80 % | ITE (Commercial) | OCP Remote On/Off SCP | 16-SMD Module 7 Leads | 0.94 in | 0.31 " | 0.54 in | 8 mm | 13.7 mm | 23.9 mm | 85 °C | -40 C |
