Schaffner FN2060 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

POWER LINE FILTERS MULTI-STAGE 10A

Part	Frequency - Operating	Filter Type	Configuration	Termination Style	Inductance	Current	Mounting Type	Applications	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC	Voltage - Rated DC
TE Connectivity AMP Connectors FN2060-10-06	DC ~ 400Hz	Single Phase	Two Stage	Quick Connect	800 µH	10 A	Chassis Mount	General Purpose	CE CSA ENEC UR	100 °C	-25 °C	250 V

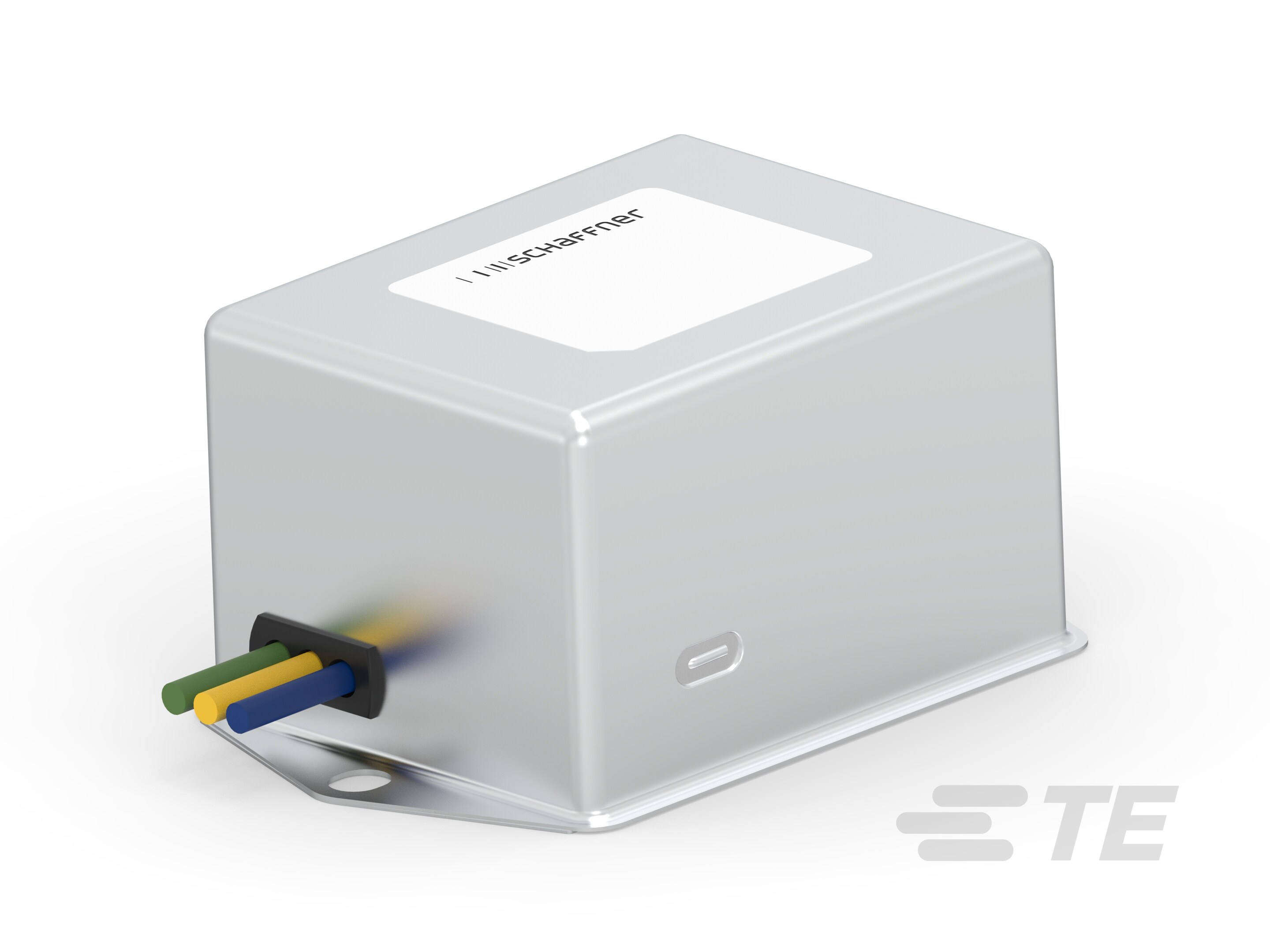

TE Connectivity AMP Connectors FN2060-16-07	DC ~ 400Hz	Single Phase	Two Stage	Wire Leads	650 µH	16 A	Chassis Mount	General Purpose	CE CSA ENEC UR	100 °C	-25 °C	250 V
TE Connectivity AMP Connectors FN2060A-6-06	DC ~ 400Hz	Single Phase	Two Stage	Quick Connect	970 µH	6 A	Chassis Mount	Safety	CE CSA ENEC UR	100 °C	-25 °C	250 V
TE Connectivity AMP Connectors FN2060A-20-08	DC ~ 400Hz	Single Phase	Two Stage	Threaded Post (M4)	600 µH	20 A	Chassis Mount	Safety	CE CSA ENEC UR	100 °C	-25 °C	250 V

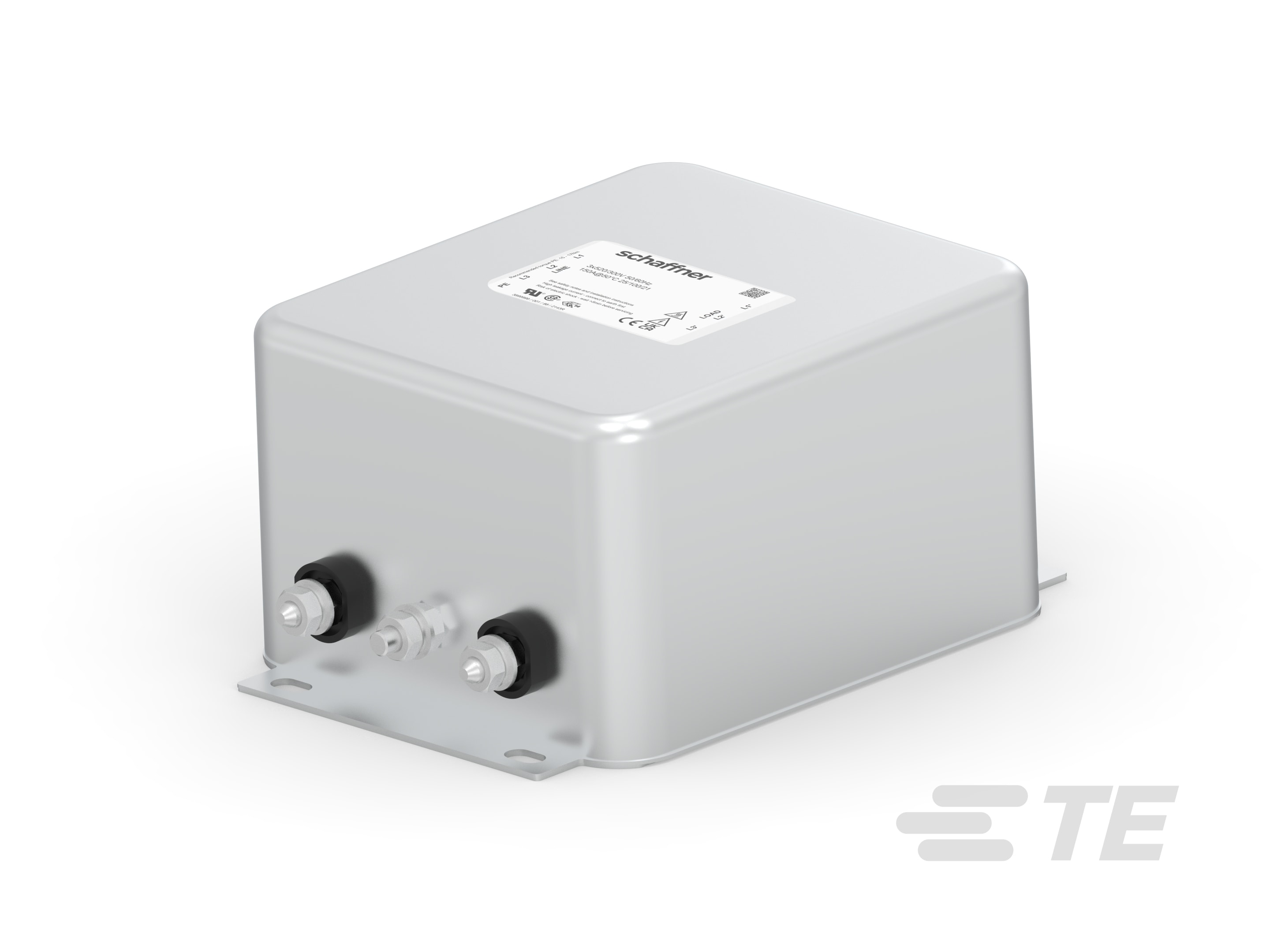

TE Connectivity AMP Connectors FN2060B-30-08	DC ~ 400Hz	Single Phase	Two Stage	Threaded Post (M4)	600 µH	30 A	Chassis Mount	General Purpose	CE CSA ENEC UR	100 °C	-25 °C	250 V

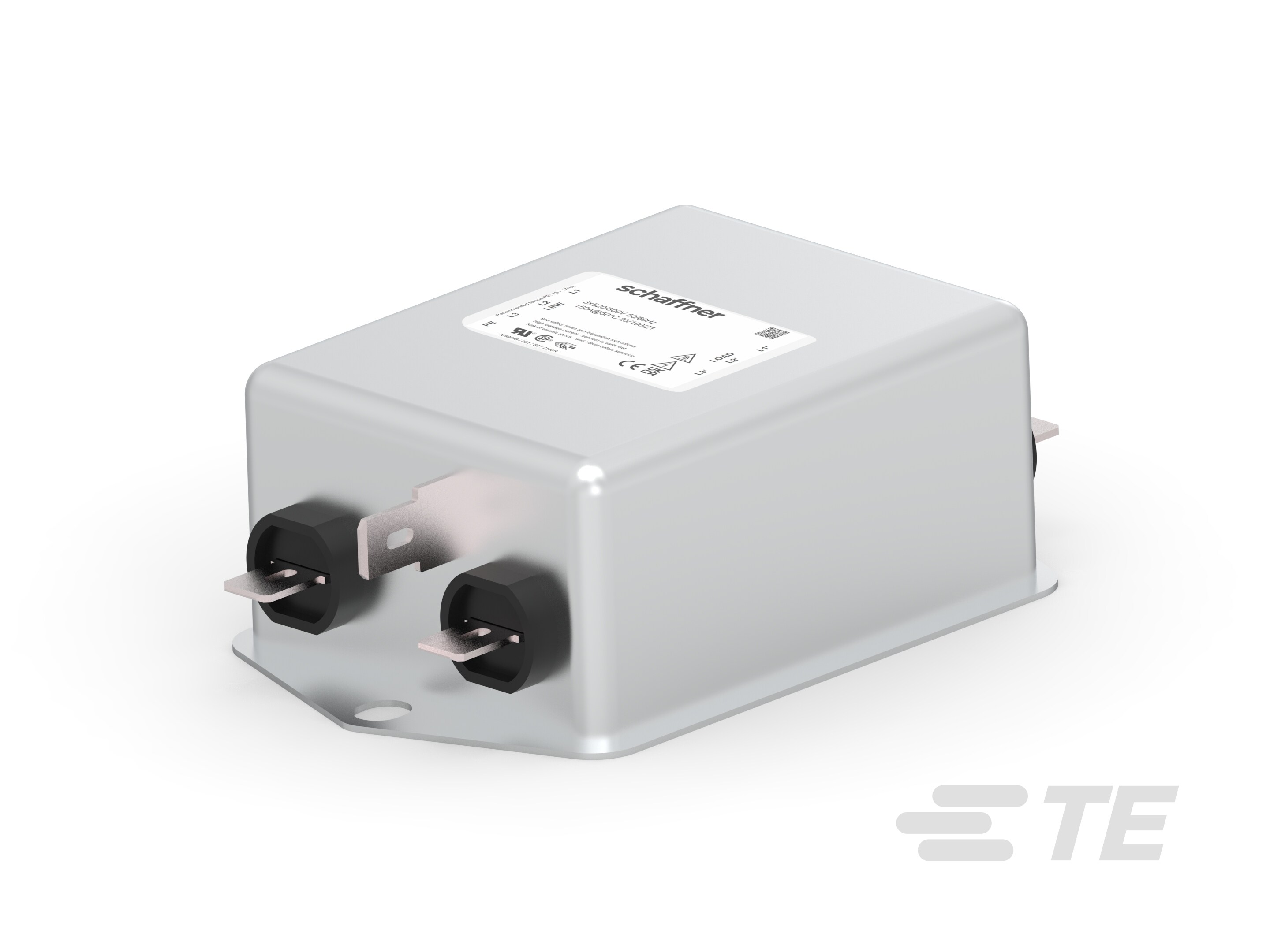

TE Connectivity AMP Connectors FN2060-12-06	DC ~ 400Hz	Single Phase	Two Stage	Quick Connect	580 µH	12 A	Chassis Mount	General Purpose	CE CSA ENEC UR	100 °C	-25 °C	250 V
TE Connectivity AMP Connectors FN2060A-10-06	DC ~ 400Hz	Single Phase	Two Stage	Quick Connect	800 µH	10 A	Chassis Mount	Safety	CE CSA ENEC UKCA UR	100 °C	-25 °C	250 V	250 V
TE Connectivity AMP Connectors FN2060-12-06	DC ~ 400Hz	Single Phase	Two Stage	Quick Connect	580 µH	12 A	Chassis Mount	General Purpose	CE CSA ENEC UR	100 °C	-25 °C	250 V

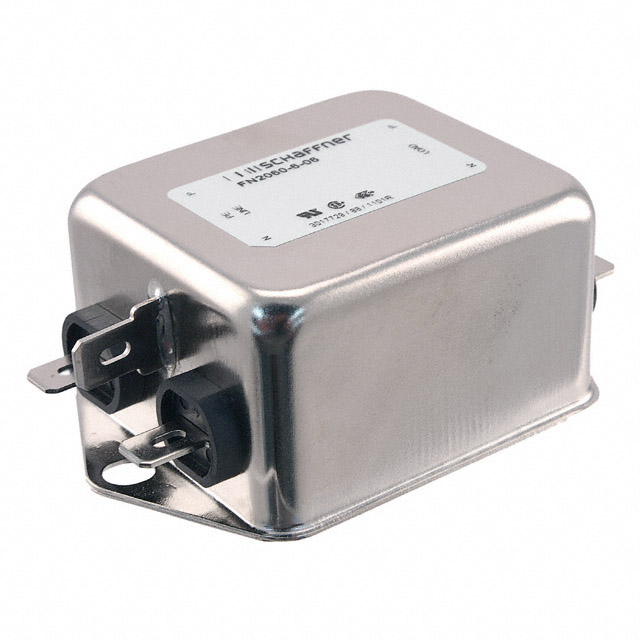

TE Connectivity AMP Connectors FN2060-6-06	DC ~ 400Hz	Single Phase	Two Stage	Quick Connect	970 µH	6 A	Chassis Mount	General Purpose	CE CSA ENEC UR	100 °C	-25 °C	250 V

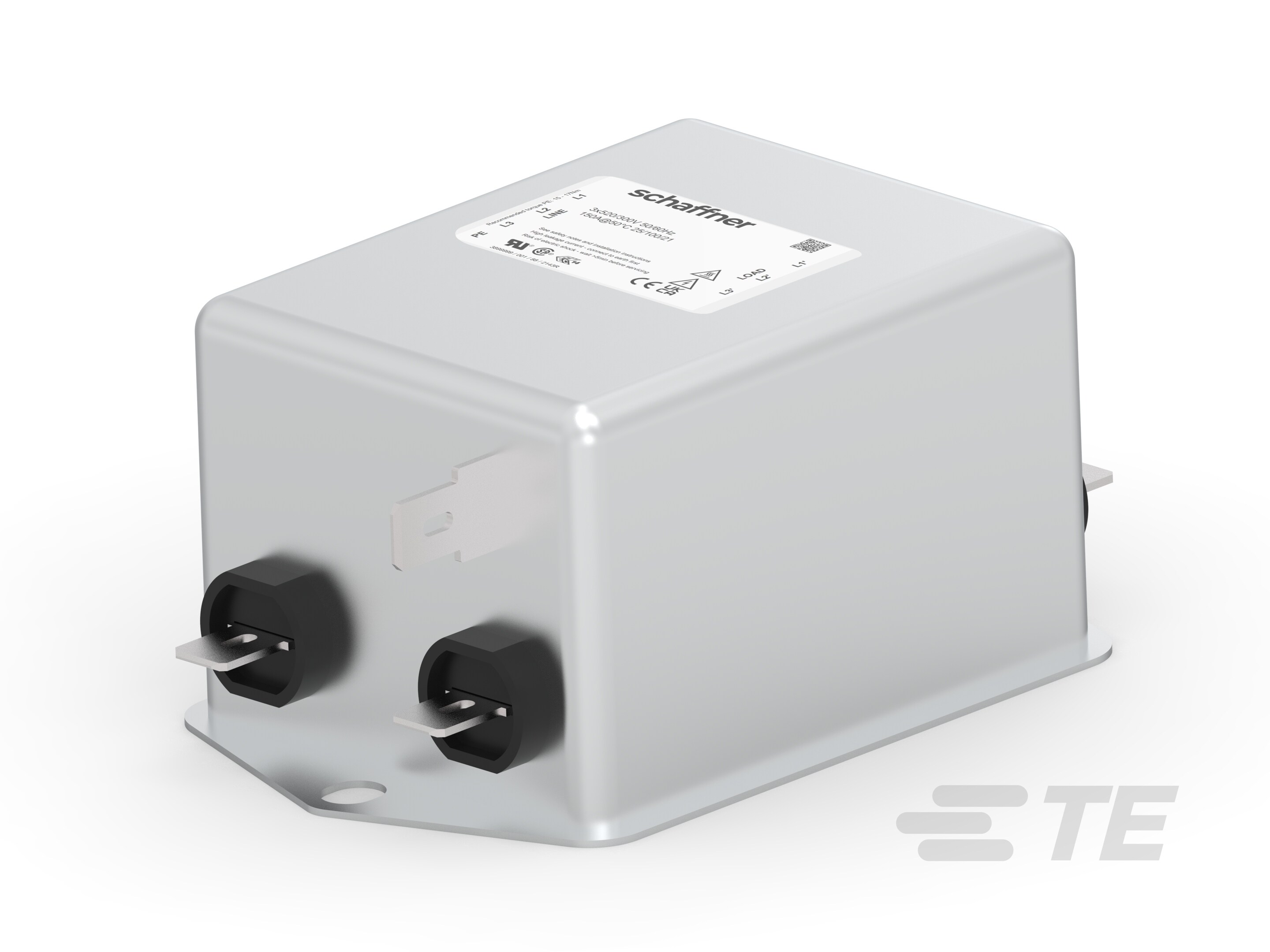

TE Connectivity AMP Connectors FN2060B-16-06	DC ~ 400Hz	Single Phase	Two Stage	Quick Connect	650 µH	16 A	Chassis Mount	General Purpose	CE CSA ENEC UR	100 °C	-25 °C	250 V
