DCDH-9 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

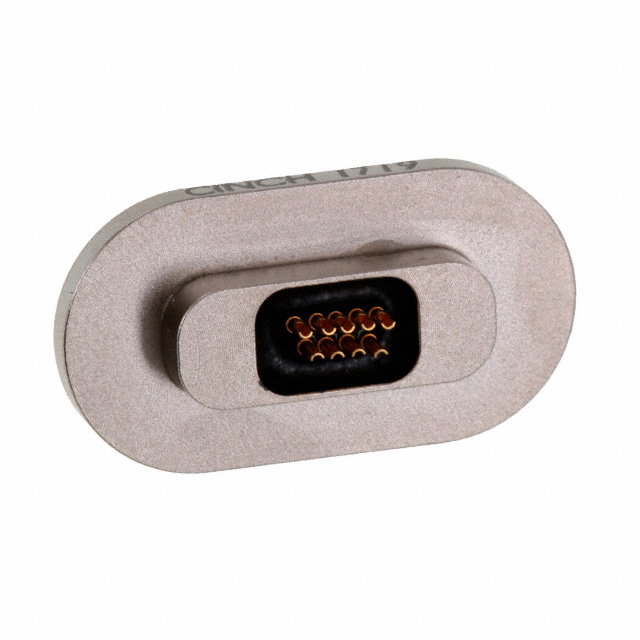

CONN MICRO-D PLUG 9POS PNL MNT
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Number of Positions | Flange Feature | Flange Feature | Material Flammability Rating | Connector Type | Contact Type | Number of Rows [custom] | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Current Rating (Amps) | Ingress Protection | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Copper Alloy | -55 C | 125 °C | Diallyl Phthalate (DAP) Glass Filled | 9 | Housing/Shell | 4-40 | UL94 V-0 | Plug Male Pins | Signal | 2 | Panel Mount | Gold | 50 µin | 1.27 µm | Aluminum Alloy Electroless Nickel Plated | 3 A | Harsh Environment | D-Type Micro-D |
