8830-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall	Length - Overall	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type
Mill-Max Manufacturing Corp. 8830-0-15-80-22-84-10-0	-55 C	125 °C	Solder	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	Tin	0.19 in	4.83 mm	2.54 µm	100 µin	1.45 mm	0.057 in	5.72 mm	0.225 in	0.072 "	1.83 mm	No Tail
Mill-Max Manufacturing Corp. 8830-0-15-15-22-14-10-0	-55 C	125 °C	Solder	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.19 in	4.83 mm	0.25 Ám	10 Áin	1.45 mm	0.057 in	5.72 mm	0.225 in	0.072 "	1.83 mm	No Tail

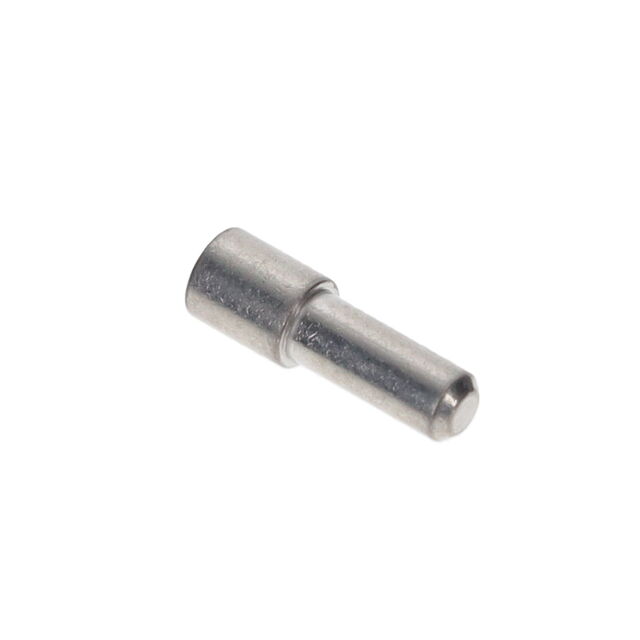

Mill-Max Manufacturing Corp. 8830-0-15-01-22-14-10-0	-55 C	125 °C	Solder	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.19 in	4.83 mm	0.25 Ám	10 Áin	1.45 mm	0.057 in	5.72 mm	0.225 in	0.072 "	1.83 mm	No Tail
Mill-Max Manufacturing Corp. 8830-0-15-80-22-27-10-0	-55 C	125 °C	Solder	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.19 in	4.83 mm	0.76 Ám	30 Áin	1.45 mm	0.057 in	5.72 mm	0.225 in	0.072 "	1.83 mm	No Tail
Mill-Max Manufacturing Corp. 8830-0-15-01-22-02-10-0	-55 C	125 °C	Solder	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	Tin-Lead	0.19 in	4.83 mm	2.54 µm	100 µin	1.45 mm	0.057 in	5.72 mm	0.225 in	0.072 "	1.83 mm	No Tail
Mill-Max Manufacturing Corp. 8830-0-15-01-22-27-10-0	-55 C	125 °C	Solder	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	0.19 in	4.83 mm	0.76 Ám	30 Áin	1.45 mm	0.057 in	5.72 mm	0.225 in	0.072 "	1.83 mm	No Tail
