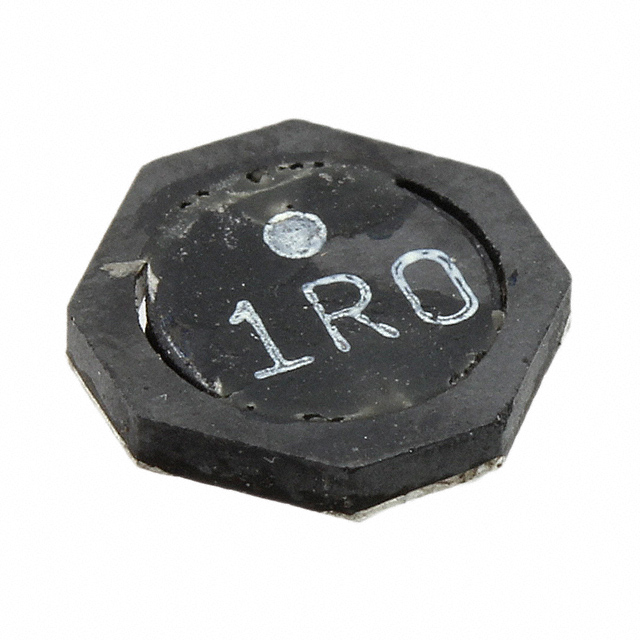

SRU6013 Series

Catalog

IND6.2X6.5X1.45MM,47UH30%0.66A,SHDSMD /TAPE & REEL - 7" REEL

Part	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Shielding	Package / Case	Current Rating (Amps)	Type	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Current - Saturation (Isat)	Material - Core	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Q @ Freq	Q @ Freq [custom]
Bourns Inc. SRU6013-470Y	47 µH	1.6 mm	0.063 in	Surface Mount	Shielded	Nonstandard	660 mA	Drum Core Wirewound	100 kHz	675 mOhm	125 °C	-40 C	30 %	500 mA	Ferrite	14 MHz	2.52 MHz	10	0.244 in	0.256 in	6.2 mm	6.5 mm
Bourns Inc. SRU6013-4R2Y	4.2 µH	1.6 mm	0.063 in	Surface Mount	Shielded	Nonstandard	2.1 A	Drum Core Wirewound	100 kHz	75 mOhm	125 °C	-40 C	30 %		Ferrite	55 MHz			0.244 in	0.256 in	6.2 mm	6.5 mm	7.96 MHz 10
Bourns Inc. SRU6013-220Y	22 µH	1.6 mm	0.063 in	Surface Mount	Shielded	Nonstandard	950 mA	Drum Core Wirewound	100 kHz	325 mOhm	125 °C	-40 C	30 %	720 mA	Ferrite	22 MHz		12	0.244 in	0.256 in	6.2 mm	6.5 mm		2.52 MHz
Bourns Inc. SRU6013-680Y	68 µH	1.6 mm	0.063 in	Surface Mount	Shielded	Nonstandard	600 mA	Drum Core Wirewound	100 kHz		125 °C	-40 C	30 %	400 mA	Ferrite	10 MHz	2.52 MHz	10	0.244 in	0.256 in	6.2 mm	6.5 mm
