PKC.M0 Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 8POS GOLD SOLDER

Part	Shell Size - Insert	Primary Material	Connector Type	Contact Finish - Mating	Insert Material	Ingress Protection	Shell Material	Orientation	Mounting Feature	Applications	Shielding	Fastening Type	Current Rating (Amps)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Type	Color
LEMO PKC.M0.8GL.NN	M08	Plastic	Receptacle Female Sockets	Gold	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Polysulfone (PSU)	C	Front and Rear Side Nut	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Detent Lock Push-Pull	5 A	Solder	150 °C	-50 °C	8	Panel Mount Through Hole
LEMO PKC.M0.4NL.LJ	M04	Plastic	Receptacle Female Sockets	Gold	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Polysulfone (PSU)	C	Front and Rear Side Nut	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Detent Lock Push-Pull	8 A		150 °C	-50 °C	4	Panel Mount
LEMO PKC.M0.9GL.LG	M09	Plastic	Receptacle Female Sockets	Gold	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Polysulfone (PSU)	C	Front and Rear Side Nut	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Detent Lock Push-Pull	3 A		150 °C	-50 °C	9	Panel Mount	Gray
LEMO PKC.M0.6GL.LA	M06	Plastic	Receptacle Female Sockets	Gold	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Polysulfone (PSU)	C	Front and Rear Side Nut	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Detent Lock Push-Pull	6 A		150 °C	-50 °C	6	Panel Mount	Blue Gray
LEMO PKC.M0.8GL.NZ	M08	Plastic	Receptacle Female Sockets	Gold	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Polysulfone (PSU)	C	Front and Rear Side Nut	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Detent Lock Push-Pull	5 A	Solder	150 °C	-50 °C	8	Panel Mount Through Hole	Gray

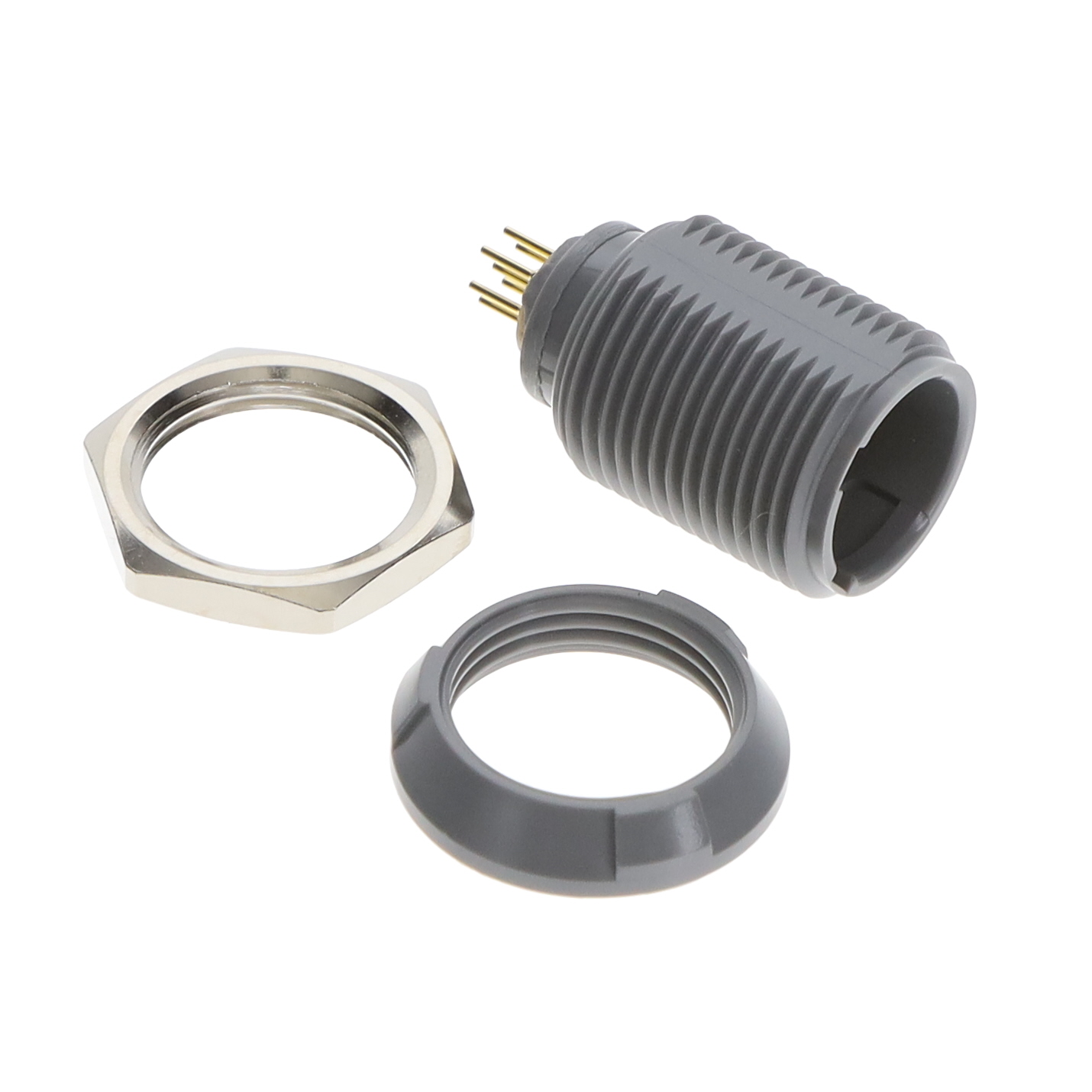

LEMO PKC.M0.7GL.NG		Plastic	Receptacle Female Sockets	Gold	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Polysulfone (PSU)	C	Front and Rear Side Nut	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Detent Lock Push-Pull	5 A	Solder	150 °C	-50 °C	7	Panel Mount Through Hole	Gray
LEMO PKC.M0.2SL.NV	M02	Plastic	Receptacle Female Sockets	Gold	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Polyetherimide (PEI)	C	Front and Rear Side Nut	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Detent Lock Push-Pull	10 A	Solder	170 °C	-50 °C	2	Panel Mount Through Hole	Gray Green
LEMO PKC.M0.6SL.LR	M06	Plastic	Receptacle Female Sockets	Gold	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Polyetherimide (PEI)	C	Front and Rear Side Nut	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Detent Lock Push-Pull	6 A		170 °C	-50 °C	6	Panel Mount	Gray Red
LEMO PKC.M0.6GL.LZ	M06	Plastic	Receptacle Female Sockets	Gold	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Polysulfone (PSU)	C	Front and Rear Side Nut	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Detent Lock Push-Pull	6 A		150 °C	-50 °C	6	Panel Mount	Gray
LEMO PKC.M0.9GL.LZ	M09	Plastic	Receptacle Female Sockets	Gold	Polyetheretherketone (PEEK)	IP50 - Dust Protected	Polysulfone (PSU)	C	Front and Rear Side Nut	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Detent Lock Push-Pull	3 A		150 °C	-50 °C	9	Panel Mount	Gray
