68693 Series

Catalog

CONN HEADER VERT 56POS 2.54MM

Part	Material Flammability Rating	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Material	Connector Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Fastening Type	Shrouding	Contact Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Rows	Insulation Color	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Post

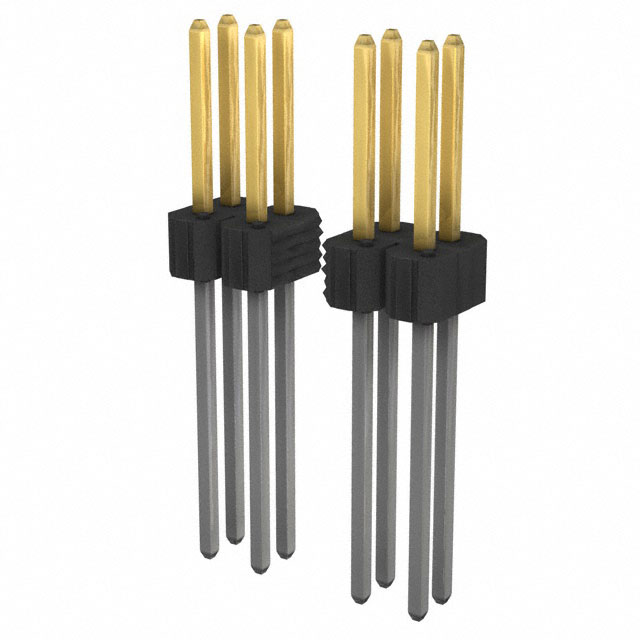

Amphenol ICC (FCI) 68693-156HLF	UL94 V-0	Square	0.938 in	23.83 mm	0.318 "	8.08 mm	13.21 mm	0.52 "	Phosphor Bronze	Header	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	All	Push-Pull	Unshrouded	Male Pin	Solder	-65 ░C	130 °C	Gold or Gold GXT™	2	Black	0.1 in	2.54 mm	56

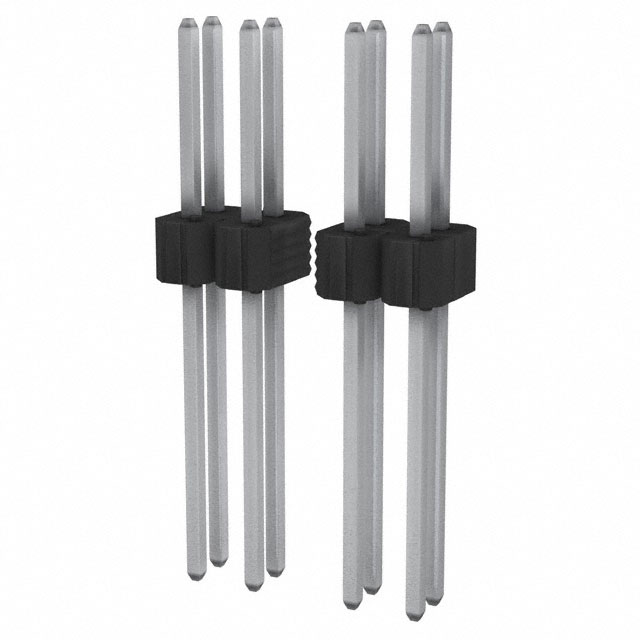

Amphenol ICC (FCI) 68693-472HLF	UL94 V-0	Square	0.938 in	23.83 mm	0.318 "	8.08 mm	13.21 mm	0.52 "	Phosphor Bronze	Header	Through Hole	100 çin	2.54 çm	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	All	Push-Pull	Unshrouded	Male Pin	Solder	-65 ░C	130 °C		2	Black	0.1 in	2.54 mm	72	Tin
Amphenol ICC (FCI) 68693-122HLF	UL94 V-0	Square	0.938 in	23.83 mm	0.318 "	8.08 mm	13.21 mm	0.52 "	Phosphor Bronze	Header	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	All	Push-Pull	Unshrouded	Male Pin	Solder	-65 ░C	130 °C	Gold or Gold GXT™	2	Black	0.1 in	2.54 mm	22 positions
Amphenol ICC (FCI) 68693-120	UL94 V-0	Square	0.938 in	23.83 mm	0.318 "	8.08 mm	13.21 mm	0.52 "	Phosphor Bronze	Header	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	All	Push-Pull	Unshrouded	Male Pin	Solder	-65 ░C	130 °C	Gold or Gold GXT™	2	Black	0.1 in	2.54 mm	20
Amphenol ICC (FCI) 68693-140HLF	UL94 V-0	Square	0.938 in	23.83 mm	0.318 "	8.08 mm	13.21 mm	0.52 "	Phosphor Bronze	Header	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	All	Push-Pull	Unshrouded	Male Pin	Solder	-65 ░C	130 °C	Gold or Gold GXT™	2	Black	0.1 in	2.54 mm	40
Amphenol ICC (FCI) 68693-466HLF	UL94 V-0	Square	0.938 in	23.83 mm	0.318 "	8.08 mm	13.21 mm	0.52 "	Phosphor Bronze	Header	Through Hole	100 çin	2.54 çm	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	All	Push-Pull	Unshrouded	Male Pin	Solder	-65 ░C	130 °C		2	Black	0.1 in	2.54 mm	66	Tin
Amphenol ICC (FCI) 68693-456HLF	UL94 V-0	Square	0.938 in	23.83 mm	0.318 "	8.08 mm	13.21 mm	0.52 "	Phosphor Bronze	Header	Through Hole	100 çin	2.54 çm	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	All	Push-Pull	Unshrouded	Male Pin	Solder	-65 ░C	130 °C		2	Black	0.1 in	2.54 mm	56	Tin
Amphenol ICC (FCI) 68693-448HLF	UL94 V-0	Square	0.938 in	23.83 mm	0.318 "	8.08 mm	13.21 mm	0.52 "	Phosphor Bronze	Header	Through Hole	100 çin	2.54 çm	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	All	Push-Pull	Unshrouded	Male Pin	Solder	-65 ░C	130 °C		2	Black	0.1 in	2.54 mm	48	Tin
Amphenol ICC (FCI) 68693-458HLF	UL94 V-0	Square	0.938 in	23.83 mm	0.318 "	8.08 mm	13.21 mm	0.52 "	Phosphor Bronze	Header	Through Hole	100 çin	2.54 çm	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	All	Push-Pull	Unshrouded	Male Pin	Solder	-65 ░C	130 °C		2	Black	0.1 in	2.54 mm	58	Tin

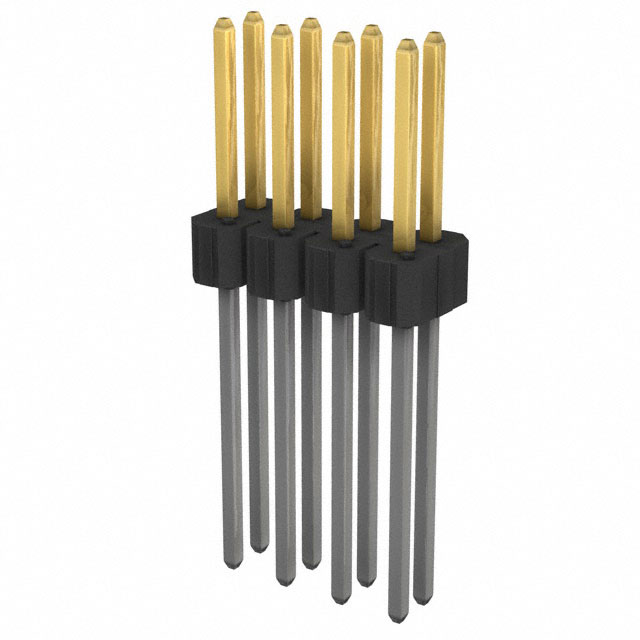

Amphenol ICC (FCI) 68693-108HLF	UL94 V-0	Square	0.938 in	23.83 mm	0.318 "	8.08 mm	13.21 mm	0.52 "	Phosphor Bronze	Header	Through Hole	30 Áin	0.76 Ám	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	All	Push-Pull	Unshrouded	Male Pin	Solder	-65 ░C	130 °C	Gold or Gold GXT™	2	Black	0.1 in	2.54 mm	8
