VHE100W Series

Manufacturer: CUI Inc.

Catalog

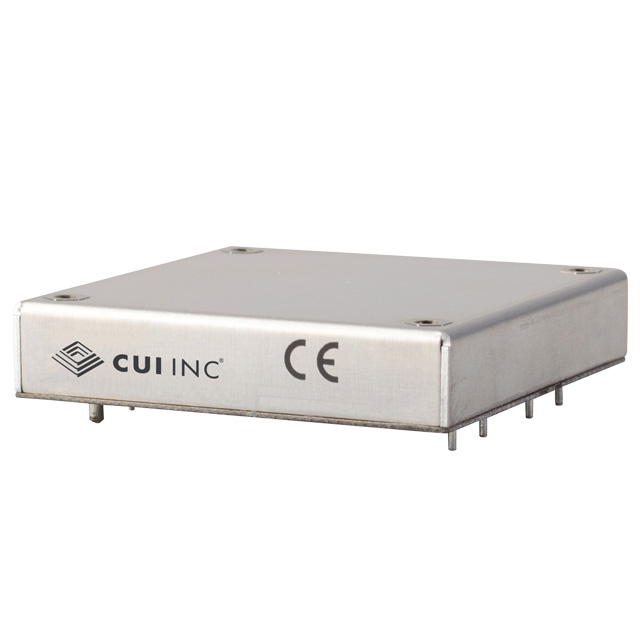

MODULE DC-DC 48VIN 1-OUT 12V 8.4A 100W 9-PIN HALF-BRICK

Part	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Features	Voltage - Output 1	Efficiency	Control Features	Type	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Approval Agency	Applications	Power (Watts)	Package / Case
CUI Inc. VHE100W-Q48-S12	18 V	-40 C	105 ░C	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	12 V	93 %	Active High Enable	Isolated Module	1	75 V	8.4 A	Through Hole	EN	ITE (Commercial)	100 W	9-DIP Module
CUI Inc. VHE100W-Q48-S48	18 V	-40 C	105 ░C	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	48 V	90.5 %	Active High Enable	Isolated Module	1	75 V	2.1 A	Through Hole	EN	ITE (Commercial)	100 W	9-DIP Module
CUI Inc. VHE100W-Q48-S15	18 V	-40 C	105 ░C	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	15 V	92.5 %	Active High Enable	Isolated Module	1	75 V	6.7 A	Through Hole	EN	ITE (Commercial)	100 W	9-DIP Module
CUI Inc. VHE100W-Q24-S48	9 V	-40 C	105 ░C	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	48 V	88.5 %	Active High Enable	Isolated Module	1	36 V	2.1 A	Through Hole	EN	ITE (Commercial)	100 W	9-DIP Module
CUI Inc. VHE100W-Q24-S5	9 V	-40 C	105 ░C	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	5 V		Active High Enable	Isolated Module	1	36 V	20 A	Through Hole	EN	ITE (Commercial)	100 W	9-DIP Module
CUI Inc. VHE100W-Q48-S24	18 V	-40 C	105 ░C	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	24 V	91 %	Active High Enable	Isolated Module	1	75 V	4.2 A	Through Hole	EN	ITE (Commercial)	100 W	9-DIP Module
CUI Inc. VHE100W-Q48-S3R3	18 V	-40 C	105 ░C	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	3.3 V	88 %	Active High Enable	Isolated Module	1	75 V	25 A	Through Hole	EN	ITE (Commercial)	100 W	9-DIP Module
CUI Inc. VHE100W-Q48-S5	18 V	-40 C	105 ░C	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	5 V	92 %	Active High Enable	Isolated Module	1	75 V	20 A	Through Hole	EN	ITE (Commercial)	100 W	9-DIP Module
CUI Inc. VHE100W-Q24-S12	9 V	-40 C	105 ░C	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	12 V	90.5 %	Active High Enable	Isolated Module	1	36 V	8.4 A	Through Hole	EN	ITE (Commercial)	100 W	9-DIP Module
CUI Inc. VHE100W-Q24-S15	9 V	-40 C	105 ░C	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	1.5 kV	OCP OTP OVP Remote On/Off SCP UVLO	15 V	90.5 %	Active High Enable	Isolated Module	1	36 V	6.7 A	Through Hole	EN	ITE (Commercial)	100 W	9-DIP Module
