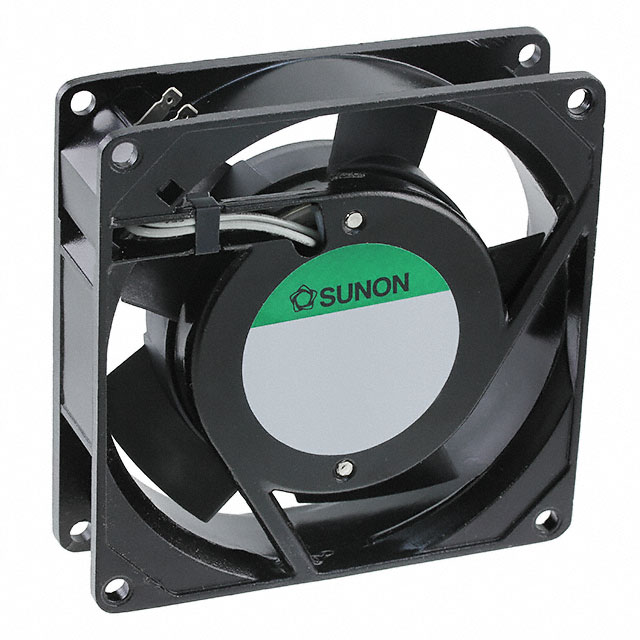

SF11592A Series
Manufacturer: Sunon Fans
Beta
⌘K
FAN AXIAL 92X25MM 115VAC
| Part | Material - Blade | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Weight | Weight | Width [y] | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | Power (Watts) | Air Flow | Air Flow | Bearing Type | Termination | Fan Type | Static Pressure | Static Pressure | Voltage - Rated | Lifetime @ Temp. | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | Polybutylene Terephthalate (PBT) | Aluminum | 125 VAC | 85 VAC | 110 mA | 2750 RPM | 70 °C | -10 °C | 39 dB(A) | 0.617 lb | 280 g | 25.5 mm | CE cUR TUV UL | 91.5 mm | 91.5 mm | Square | 12 W | 1.01 m³/min | 36 CFM | Sleeve | 2 | Tubeaxial | 44.8 Pa | 0.18 in H2O | 115 VAC | ||
 Sunon Fans | Aluminum | 60 mA | 2100 RPM | 33 dB(A) | 0.617 lb | 280 g | 25.5 mm | CE cUR TUV UL | 91.5 mm | 91.5 mm | Square | 6 W | 0.784 m³/min | 28 CFM | Ball | Tubeaxial | 27.4 Pa | 0.11 in H2O | 115 VAC | 40 °C 42000 Hrs | 2 Wire Leads |
