317-084 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 84POS 0.156

Part	Material - Insulation	Pitch	Pitch	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Color	Number of Positions [custom]	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Gender	Mounting Type	Contact Type	Termination	Number of Positions/Bay/Row	Contact Material	Card Type	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 317-084-540-807	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Dual	-65 ░C	125 °C	M3 Threaded Insert Top Mount Opening	Green	84	2	0.25 Ám	10 Áin	Gold	Female	Through Hole	Cantilever	Wire Wrap	42	Copper Alloy	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 317-084-540-803	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Dual	-65 ░C	125 °C	Floating Bobbin Flush Mount	Green	84	2	0.25 Ám	10 Áin	Gold	Female	Through Hole	Cantilever	Wire Wrap	42	Copper Alloy	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.116 "	2.95 mm
EDAC Inc. 317-084-542-801	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Dual	-65 ░C	125 °C		Green	84	2	0.25 Ám	10 Áin	Gold	Female	Through Hole	Cantilever	Wire Wrap	42	Copper Alloy	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 317-084-540-801	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Dual	-65 ░C	125 °C		Green	84	2	0.25 Ám	10 Áin	Gold	Female	Through Hole	Cantilever	Wire Wrap	42	Copper Alloy	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm

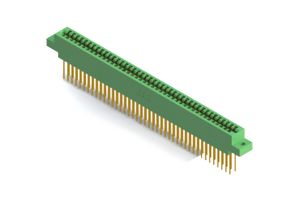

EDAC Inc. 317-084-540-804	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Dual	-65 ░C	125 °C		Green	84	2	0.25 Ám	10 Áin	Gold	Female	Through Hole	Cantilever	Wire Wrap	42	Copper Alloy	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	3.96 mm

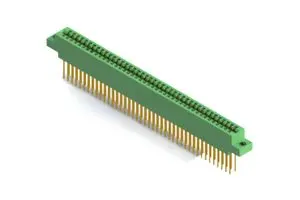

EDAC Inc. 317-084-542-878	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Dual	-65 ░C	125 °C	4-40 Threaded Insert Top Mount Opening	Green	84	2	0.25 Ám	10 Áin	Gold	Female	Through Hole	Cantilever	Wire Wrap	42	Copper Alloy	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm			Card Guides

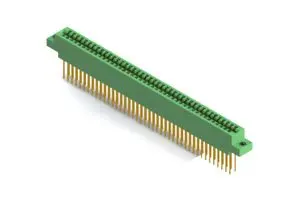

EDAC Inc. 317-084-540-878	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Dual	-65 ░C	125 °C	4-40 Threaded Insert Top Mount Opening	Green	84	2	0.25 Ám	10 Áin	Gold	Female	Through Hole	Cantilever	Wire Wrap	42	Copper Alloy	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm			Card Guides
EDAC Inc. 317-084-540-802	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Dual	-65 ░C	125 °C		Green	84	2	0.25 Ám	10 Áin	Gold	Female	Through Hole	Cantilever	Wire Wrap	42	Copper Alloy	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 317-084-542-804	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Dual	-65 ░C	125 °C		Green	84	2	0.25 Ám	10 Áin	Gold	Female	Through Hole	Cantilever	Wire Wrap	42	Copper Alloy	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	3.96 mm
EDAC Inc. 317-084-542-803	Diallyl Phthalate (DAP)	3.96 mm	0.156 in	Dual	-65 ░C	125 °C	Floating Bobbin Flush Mount	Green	84	2	0.25 Ám	10 Áin	Gold	Female	Through Hole	Cantilever	Wire Wrap	42	Copper Alloy	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.116 "	2.95 mm
