UF175 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

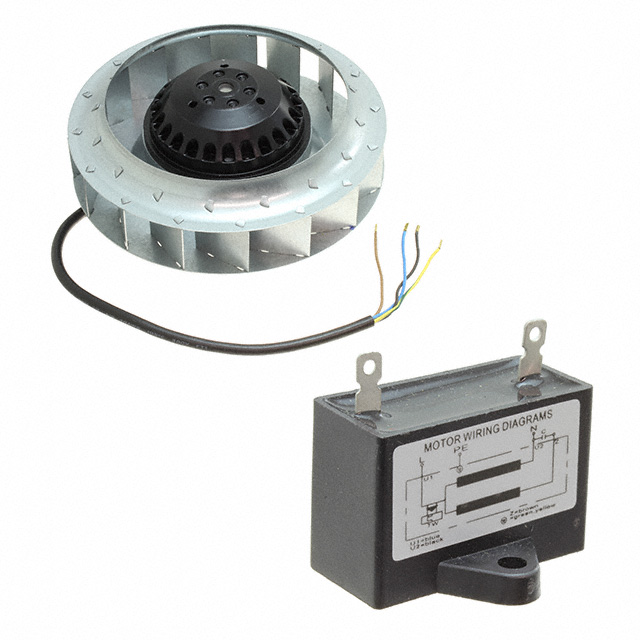

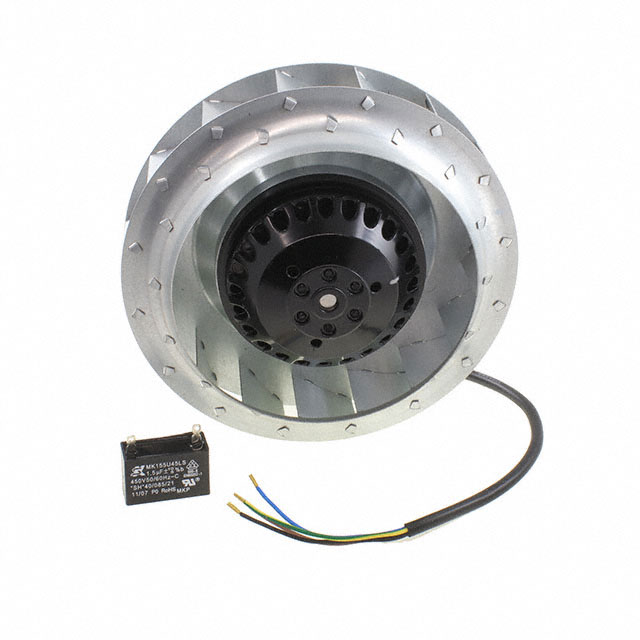

FAN IMP MTRZD 175X55MM BALL WIRE
| Part | Material - Frame | Material - Blade | Current Rating (Amps) | Features | Noise | Static Pressure | Static Pressure | Air Flow | Air Flow | Weight [custom] | Weight [custom] | Width | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Bearing Type | Approval Agency | Power (Watts) | RPM | Voltage - Rated | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Aluminum | Steel | 0.55 A | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 70 dB(A) | 1.3 in H2O | 323.6 Pa | 265 CFM | 7.42 m³/min | 1.3 kg | 2.8 lbs | 55 mm | Motorized Impellers | -40 C | 70 °C | 70 °C | -40 °C | 4 Wire Leads | Ball | CE cUL TUV UL | 66 W | 2900 RPM | 115 VAC | Round | 175 mm |
 Mechatronics Fan Group | Aluminum | Steel | 0.28 A | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 70 dB(A) | 1.3 in H2O | 323.6 Pa | 230 CFM | 6.44 m³/min | 1.3 kg | 2.8 lbs | 55 mm | Motorized Impellers | -40 C | 70 °C | 70 °C | -40 °C | 4 Wire Leads | Ball | CE cUL TUV UL | 66 W | 2900 RPM | 230 VAC | Round | 175 mm |
