MDRR-DT Series
Manufacturer: LITTELFUSE
Beta
⌘K

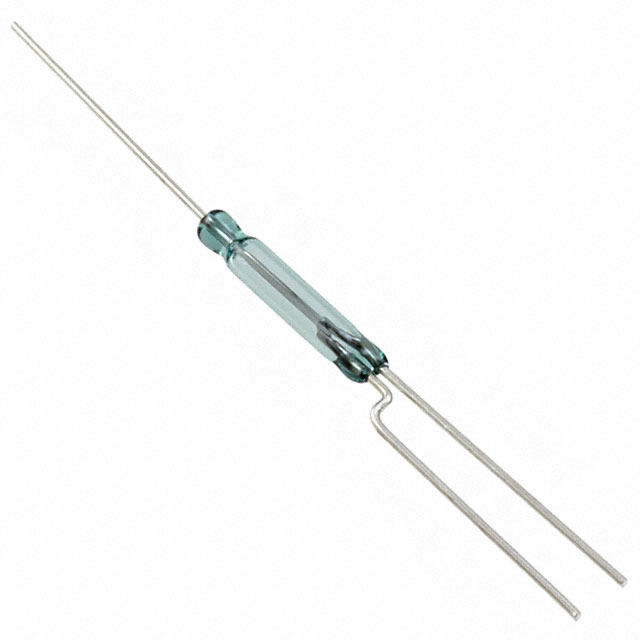

MAGNETIC / REED SWITCHES MDRR-DT-10-15-F
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Switching DC | Current - Carry | Circuit | Release Time | Mounting Type | Operate Range [Max] | Operate Range [Min] | Capacitance | Voltage - Switching AC | Power - Rated | Type | Current - Switching | Termination Style | Operate Time | Length - Overall [x] | Length - Overall [x] | Size - Body [x] | Size - Body [diameter] | Size - Body [x] | Size - Body [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 125 °C | -40 C | 175 V | 1.5 A | SPDT | 1 ms | Through Hole | 15 | 10 | 1 pF | 120 V | 5 W | Glass Body Reed | 180 mA 250 mA | Axial | 700 µs | 51.66 mm | 2.034 " | 14.73 mm | 0.1 " | 0.58 " | 2.54 mm |
