1375796 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

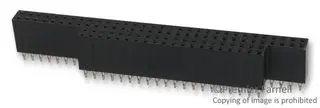

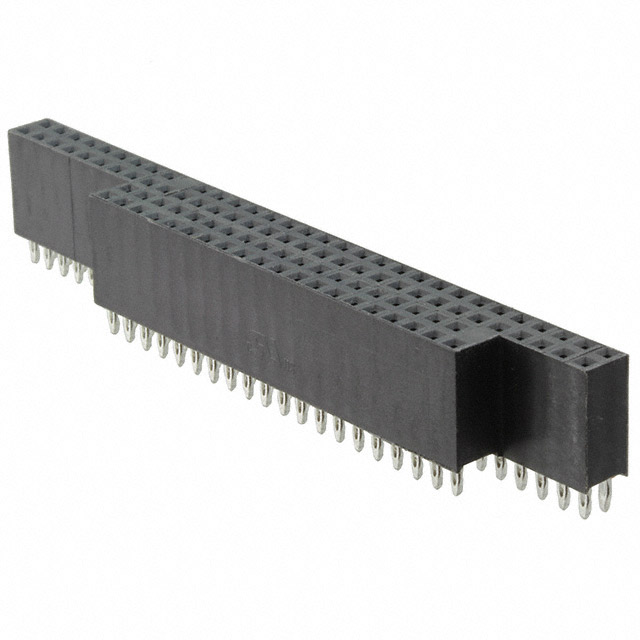

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 4 ROWS, 104 CONTACTS, THROUGH HOLE MOUNT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Color | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Pitch | Pitch | Connector Type | Mounting Type | Number of Positions | Contact Finish | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | UL94 V-0 | Black | Press-Fit | 0.38 µm | 15 µin | All | 0.1 " | 2.54 mm | Non-Stackthrough Unkeyed (PC/104) | Through Hole | 104 | Gold | PC/104 |
