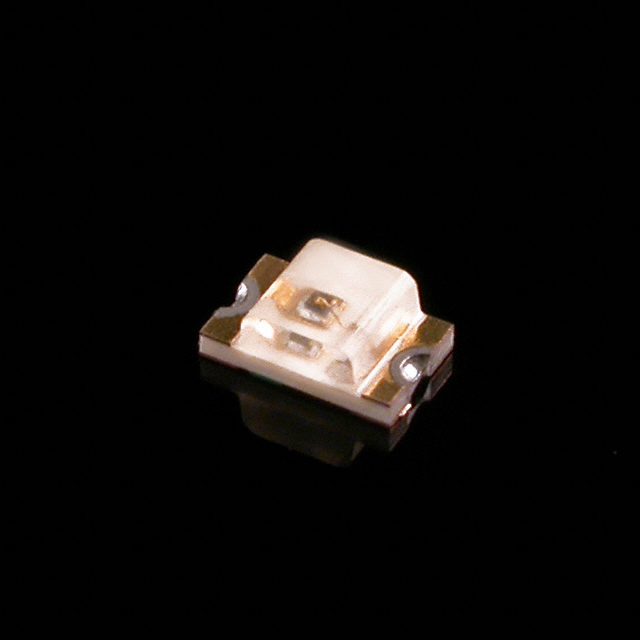

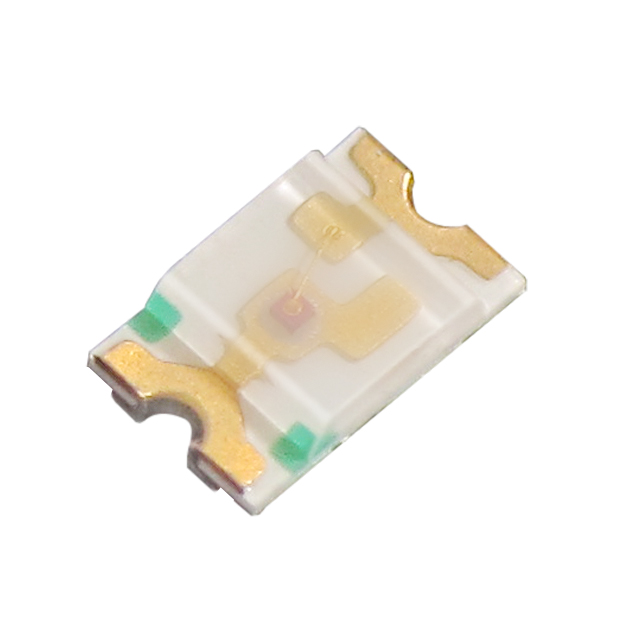

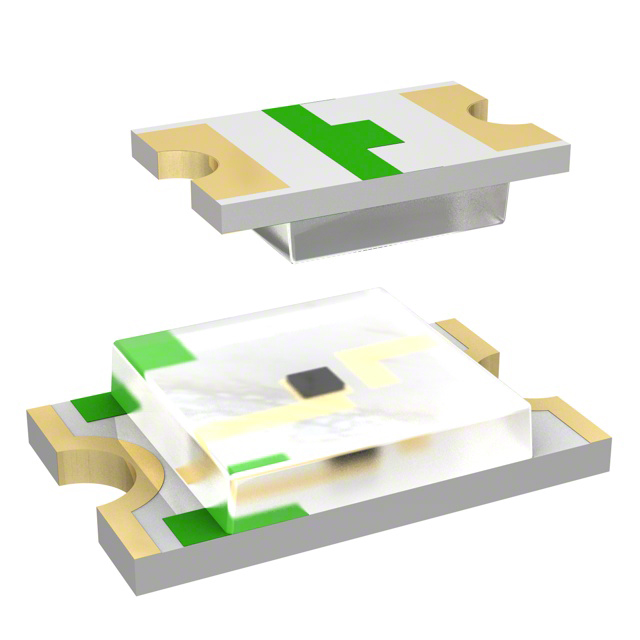

APHCM2012 Series

Catalog

LED GREEN CLEAR CHIP SMD

Part	Lens Style	Lens Size [y]	Lens Size [x]	Color	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Millicandela Rating	Supplier Device Package	Configuration	Wavelength - Dominant	Height (Max) [z]	Viewing Angle	Lens Color	Package / Case	Voltage - Forward (Vf) (Typ)	Lens Transparency	Current - Test	Wavelength - Peak	Height (Max) [z]
Kingbright APHCM2012CGCK-F01	Rectangle with Flat Top	1.25 mm	1.3 mm	Green	2 mm	1.25 mm	Surface Mount	50 mcd	Chip LED	Standard	570 nm	0.4 mm	110 °	Colorless	0805	2.1 V	Clear	20 mA
Kingbright APHCM2012PBC/A-F01	Rectangle with Flat Top	1.25 mm	1.3 mm	Blue	2 mm	1.25 mm	Surface Mount	60 mcd	Chip LED	Standard	470 nm	0.4 mm	110 °	Colorless	0805	3.2 V	Clear	20 mA	468 nm
Kingbright APHCM2012SURCK-F01	Rectangle with Flat Top	1.25 mm	1.3 mm	Red	2 mm	1.25 mm	Surface Mount	80 mcd	Chip LED	Standard	630 nm	0.4 mm	110 °	Colorless	0805	1.95 V	Clear	20 mA	645 nm
Kingbright APHCM2012ZGC/G-F01	Rectangle with Flat Top	1.2 mm	1.25 mm	Green	2 mm	1.25 mm	Surface Mount	700 mcd	2-SMD	Independent	525 nm		110 °	Colorless	0805	3.2 V	Clear	20 mA	520 nm	0.5 mm
Kingbright APHCM2012ZGC-F01	Rectangle with Flat Top	1.25 mm	1.3 mm	Green	2 mm	1.25 mm	Surface Mount	400 mcd	Chip LED	Standard	525 nm	0.4 mm	110 °	Colorless	0805	3.3 V	Clear	20 mA	515 nm
Kingbright APHCM2012SECK-F01	Rectangle with Flat Top	1.25 mm	1.3 mm		2 mm	1.25 mm	Surface Mount	180 mcd	Chip LED	Standard	601 nm	0.4 mm	110 °	Colorless	0805	2.1 V	Clear	20 mA	610 nm
Kingbright APHCM2012QBC/D-F01	Rectangle with Flat Top	1.25 mm	1.3 mm	Blue	2 mm	1.25 mm	Surface Mount	100 mcd	Chip LED	Standard	465 nm	0.4 mm	110 °	Colorless	0805	3.3 V	Clear	20 mA	460 nm

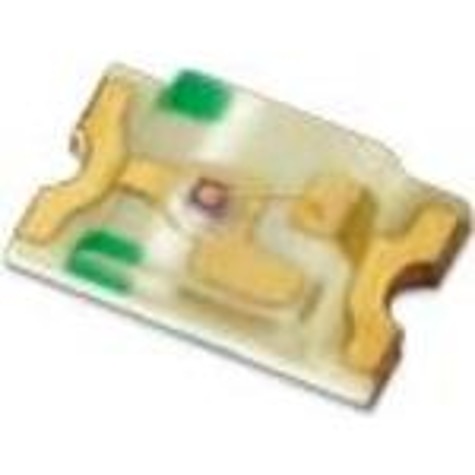

Kingbright APHCM2012SYCK-F01	Rectangle with Flat Top	1.25 mm	1.3 mm	Yellow	2 mm	1.25 mm	Surface Mount	150 mcd	Chip LED	Standard	590 nm	0.4 mm	110 °	Colorless	0805	2 V	Clear	20 mA	590 nm
Kingbright APHCM2012VBC/D	Rectangle with Flat Top	1.2 mm	1.25 mm	Blue	2 mm	1.25 mm	Surface Mount	180 mcd	2-SMD	Independent	470 nm		140 °	Colorless	0805	3.3 V	Clear	20 mA	465 nm	0.5 mm
Kingbright APHCM2012ZGCK-F01	Rectangle with Flat Top	1.2 mm	1.25 mm	Green	2 mm	1.25 mm	Surface Mount	350 mcd	2-SMD	Independent	525 nm		110 °	Colorless	0805	3.3 V	Clear	20 mA	515 nm	0.5 mm
