SDF-R37 Series
Manufacturer: NorComp Inc.
Beta
⌘K

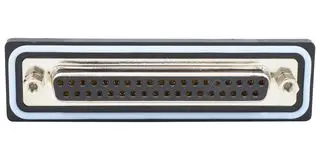

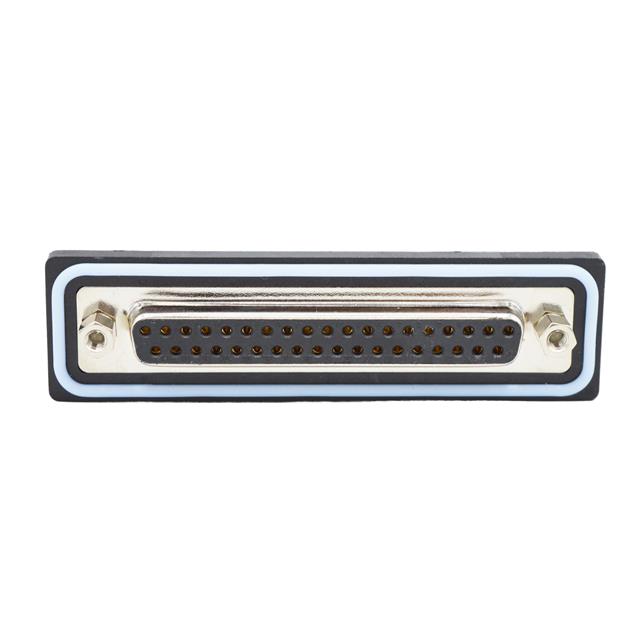

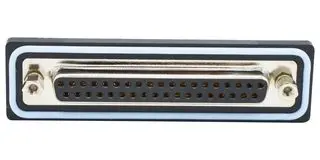

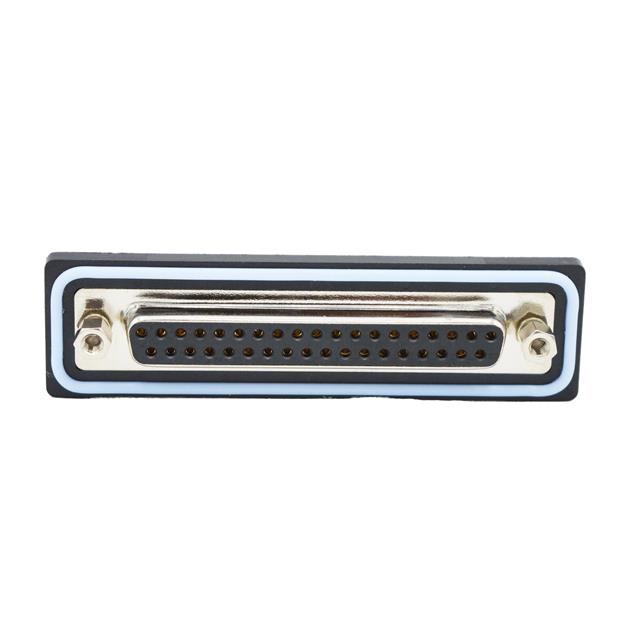

CONN D-SUB RCPT 37POS R/A SLDR
| Part | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Color | Number of Rows [custom] | Material Flammability Rating | Contact Type | Connector Type | Number of Positions | Ingress Protection | Shell Size, Connector Layout | Shell Size, Connector Layout | Mounting Type | Shell Material, Finish | Termination | Contact Finish Thickness | Connector Style | Flange Feature | Current Rating (Amps) | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 2 | UL94 V-0 | Signal | Receptacle Female Sockets | 37 | IP67 - Dust Tight Waterproof | 4 | DC C | Panel Mount Right Angle Through Hole | Nickel Plated Steel | Solder | Flash | D-Sub | 4-40 Mating Side Female Screwlock | 5 A | Gold | |||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 2 | UL94 V-0 | Signal | Plug Male Pins | 37 | IP67 - Dust Tight Waterproof | 4 | DC C | Panel Mount Right Angle Through Hole | Nickel Plated Steel | Solder | D-Sub | 4-40 Mating Side Female Screwlock | 5 A | Gold | 30 Áin | 0.76 Ám | Board Lock Grounding Indents Mounting Brackets | |
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 2 | UL94 V-0 | Signal | Receptacle Female Sockets | 37 | IP67 - Dust Tight Waterproof | 4 | DC C | Panel Mount Right Angle Through Hole | Nickel Plated Steel | Solder | D-Sub | 4-40 Mating Side Female Screwlock | 5 A | Gold | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 2 | UL94 V-0 | Signal | Receptacle Female Sockets | 37 | IP67 - Dust Tight Waterproof | 4 | DC C | Panel Mount Right Angle Through Hole | Nickel Plated Steel | Solder | D-Sub | 4-40 Mating Side Female Screwlock | 5 A | Gold | 30 Áin | 0.76 Ám | Board Lock Mounting Brackets | |
NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 2 | UL94 V-0 | Signal | Receptacle Female Sockets | 37 | IP67 - Dust Tight Waterproof | 4 | DC C | Panel Mount Right Angle Through Hole | Nickel Plated Steel | Solder | Flash | D-Sub | 4-40 Mating Side Female Screwlock | 5 A | Gold | Board Lock Mounting Brackets | ||
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 2 | UL94 V-0 | Signal | Plug Male Pins | 37 | IP67 - Dust Tight Waterproof | 4 | DC C | Panel Mount Right Angle Through Hole | Nickel Plated Steel | Solder | D-Sub | 4-40 Mating Side Female Screwlock | 5 A | Gold | 30 Áin | 0.76 Ám | Grounding Indents | |
 NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 2 | UL94 V-0 | Signal | Plug Male Pins | 37 | IP67 - Dust Tight Waterproof | 4 | DC C | Panel Mount Right Angle Through Hole | Nickel Plated Steel | Solder | Flash | D-Sub | 4-40 Mating Side Female Screwlock | 5 A | Gold | Grounding Indents | ||
NorComp Inc. | Brass | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) | Black | 2 | UL94 V-0 | Signal | Plug Male Pins | 37 | IP67 - Dust Tight Waterproof | 4 | DC C | Panel Mount Right Angle Through Hole | Nickel Plated Steel | Solder | Flash | D-Sub | 4-40 Mating Side Female Screwlock | 5 A | Gold | Board Lock Grounding Indents Mounting Brackets |
