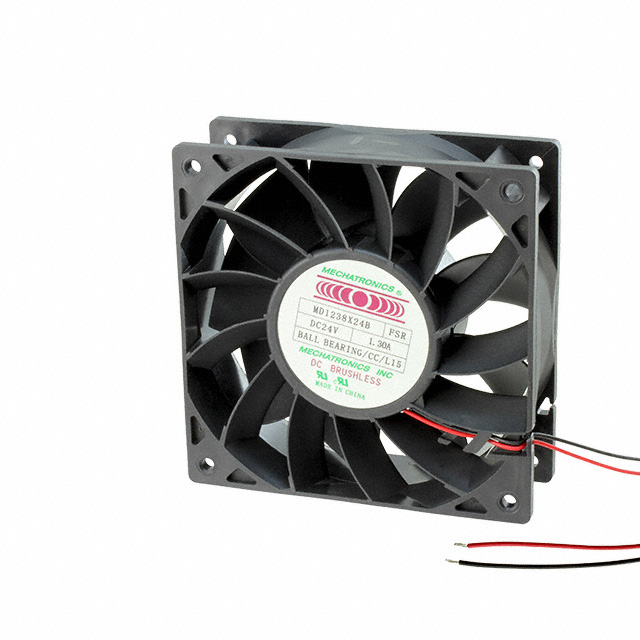

MD1238 Series

Catalog

FAN AXIAL 120X38MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Air Flow	Air Flow	RPM	Approval Agency	Static Pressure	Static Pressure	Bearing Type	Fan Type	Noise	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Weight [custom]	Weight [custom]	Voltage - Rated	Termination	Features
Mechatronics Fan Group MD1238X24B-FSR-CC-L5	1.3 A	Polybutylene Terephthalate (PBT)	5.74 m³/min	205 CFM	4500 RPM	cUL UL	234.9 Pa	0.943 in H2O	Ball	Tubeaxial	62 dB(A)	38 mm	120 mm	120 mm	410.95 g	0.906 lb	24 VDC	2 Wire Leads	Conformal Coating Thermal Overload Protector (TOP)

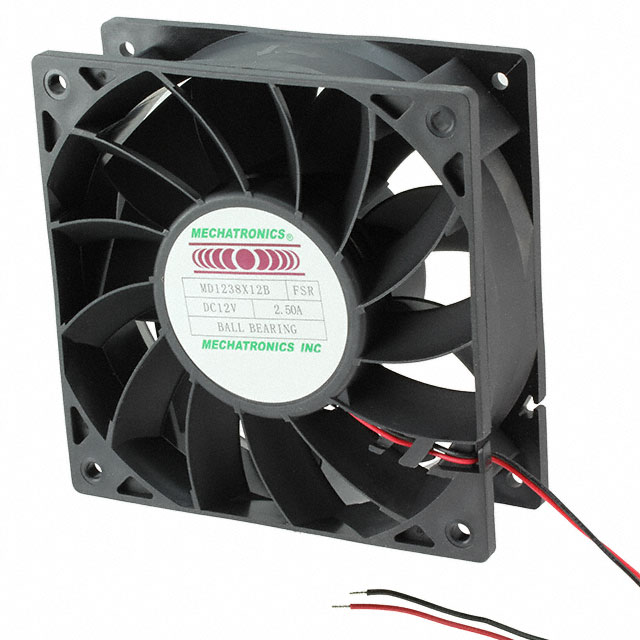

Mechatronics Fan Group MD1238X12B-FSR	2.5 A	Polybutylene Terephthalate (PBT)	5.74 m³/min	205 CFM	4500 RPM	cUL UL	234.9 Pa	0.943 in H2O	Ball	Tubeaxial	62 dB(A)	38 mm	120 mm	120 mm	410.95 g	0.906 lb	12 VDC	2 Wire Leads	Thermal Overload Protector (TOP)

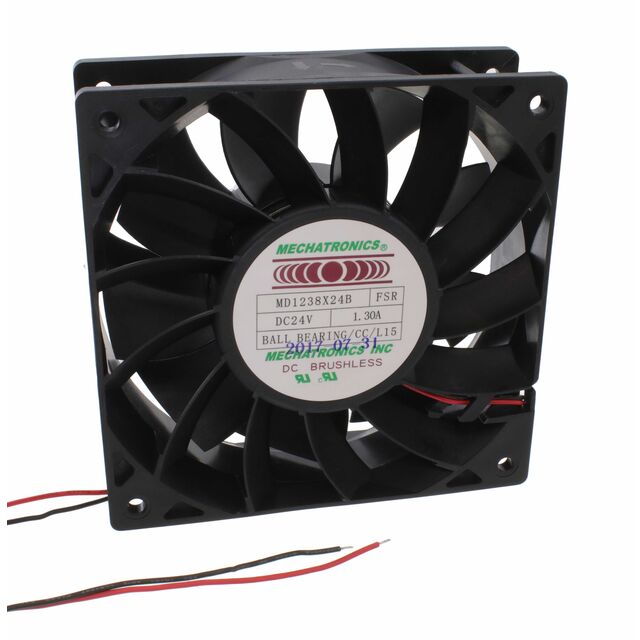

Mechatronics Fan Group MD1238X24B-FSR-CC-L15	1.3 A	Polybutylene Terephthalate (PBT)	5.74 m³/min	205 CFM	4500 RPM	cUL UL	234.9 Pa	0.943 in H2O	Ball	Tubeaxial	62 dB(A)	38 mm	120 mm	120 mm	410.95 g	0.906 lb	24 VDC	2 Wire Leads	Conformal Coating Thermal Overload Protector (TOP)

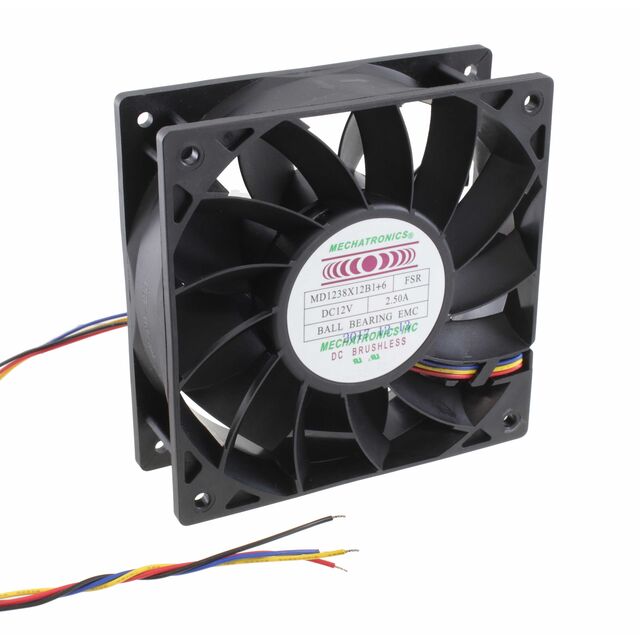

Mechatronics Fan Group MD1238X12B1+6-FSR-EMC-L25	2.5 A	Polybutylene Terephthalate (PBT)	5.74 m³/min	205 CFM	4500 RPM	cUL UL	234.9 Pa	0.943 in H2O	Ball	Tubeaxial	62 dB(A)	38 mm	120 mm	120 mm	410.95 g	0.906 lb	12 VDC	4 Wire Leads	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)

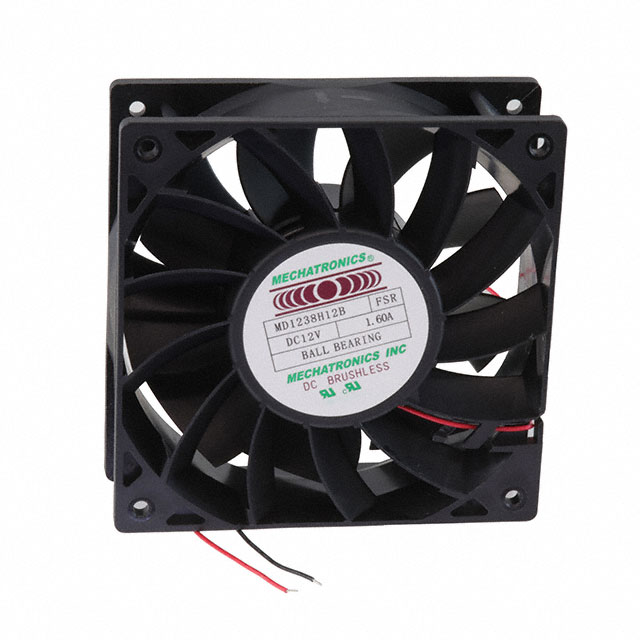

Mechatronics Fan Group MD1238H12B-FSR-26AWG	1.6 A	Polybutylene Terephthalate (PBT)	4.87 m³/min	174 CFM	3800 RPM	cUL UL	166.9 Pa	0.67 in H2O	Ball	Tubeaxial	57.8 dB(A)	38 mm	120 mm	120 mm	410.95 g	0.906 lb	12 VDC	2 Wire Leads	Thermal Overload Protector (TOP)
Mechatronics Fan Group MD1238X24B-FSR	1.3 A	Polybutylene Terephthalate (PBT)	5.74 m³/min	205 CFM	4500 RPM	cUL UL	234.9 Pa	0.943 in H2O	Ball	Tubeaxial	62 dB(A)	38 mm	120 mm	120 mm	410.95 g	0.906 lb	24 VDC	2 Wire Leads	Thermal Overload Protector (TOP)
Mechatronics Fan Group MD1238X24B-FS	1.3 A	Polybutylene Terephthalate (PBT)	5.74 m³/min	205 CFM	4500 RPM	cUL UL	234.9 Pa	0.943 in H2O	Ball	Tubeaxial	62 dB(A)	38 mm	120 mm	120 mm	410.95 g	0.906 lb	24 VDC	2 Wire Leads	Thermal Overload Protector (TOP)
Mechatronics Fan Group MD1238E12B-FSR		Polybutylene Terephthalate (PBT)	5.38 m³/min	192 CFM	4200 RPM	cUL UL	204.3 Pa	0.82 in H2O	Ball	Tubeaxial	59 dB(A)	38 mm	120 mm	120 mm	410.95 g	0.906 lb	12 VDC	2 Wire Leads	Thermal Overload Protector (TOP)
