TST36 Series

Catalog

CONN HEADER VERT 36POS 5.08MM

Part	Applications	Pitch - Mating	Pitch - Mating	Features	Fastening Type	Number of Positions Loaded	Voltage Rating	Contact Shape	Mounting Type	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Insulation Color	Termination	Shrouding	Insulation Material	Insulation Height	Insulation Height	Connector Type	Contact Type	Contact Length - Post	Contact Length - Post	For Use With/Related Products	Accessory Type	Note	Contact Termination	Pitch	Pitch	Row Spacing	Row Spacing	Color	Contact Finish Thickness - Mating	Contact Finish - Mating

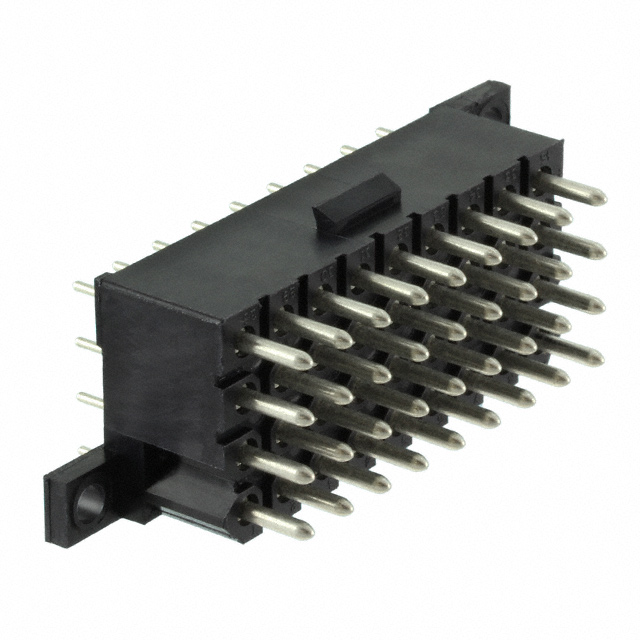

ITT Cannon, LLC TST36RB01T	Automotive Industrial	0.2 "	5.08 mm	Mounting Flange	Latch Holder	All	250 V	Circular	Through Hole	UL94 V-0	5.08 mm	0.2 in	Board to Cable/Wire	-40 C	105 ░C	13 A	36	Black	Solder	Unshrouded	Nylon Polyamide (PA)	13.5 mm	0.531 in	Receptacle	Male Pin	5.7 mm	0.224 in
ITT Cannon, LLC TST36RB05T	Automotive Industrial	0.2 "	5.08 mm	Mounting Flange	Latch Holder	All	250 V	Circular	Through Hole	UL94 V-0	5.08 mm	0.2 in	Board to Cable/Wire	-40 C	105 ░C	13 A	36	Black	Solder	Unshrouded	Nylon Polyamide (PA)	13.5 mm	0.531 in	Receptacle	Male Pin	5.7 mm	0.224 in

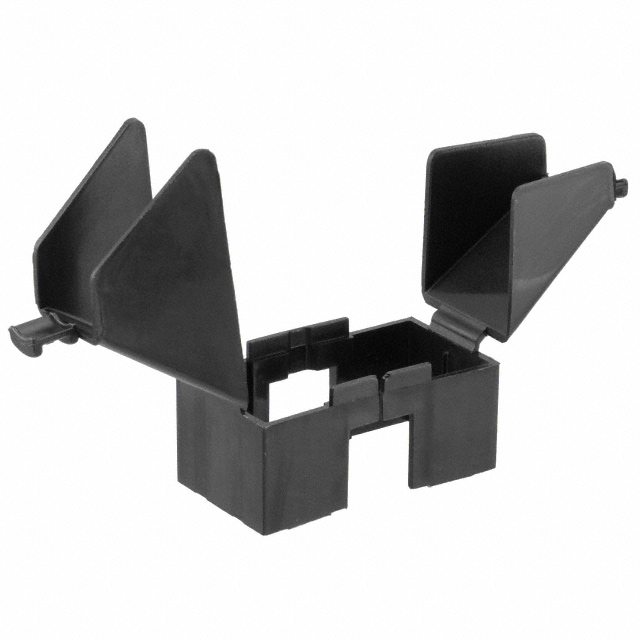

ITT Cannon, LLC TST36AH00																	36											Trident Rectangular Plugs	Hood and Strain Relief
ITT Cannon, LLC TST36RB06T	Automotive General Purpose	0.2 "	5.08 mm	Mounting Flange	Latch Holder	All		Circular	Through Hole	UL94 V-0	5.08 mm	0.2 in	Board to Board Cable	-40 C	105 ░C		36	Black	Solder		Nylon Polyamide (PA)	13.5 mm	0.531 in	Receptacle	Female Socket	5.7 mm	0.224 in

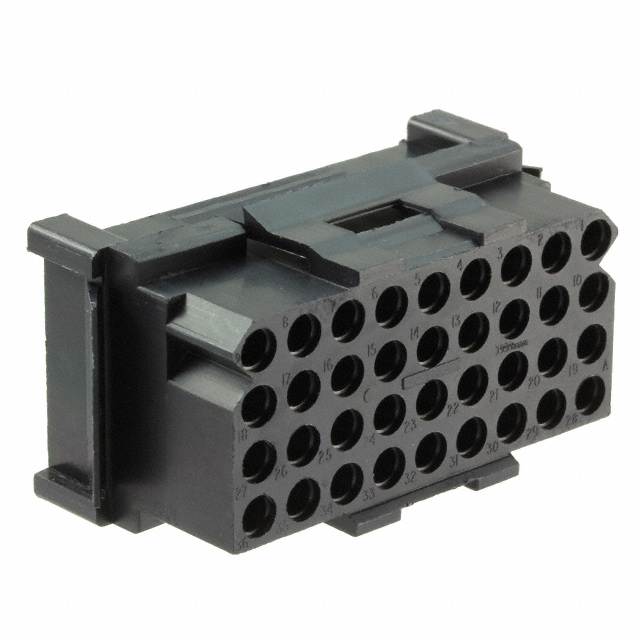

ITT Cannon, LLC TST36RA00					Latch Holder				Panel Mount Snap-In					-55 C	105 ░C		36				Nylon Polyamide (PA)			Receptacle	Male or Female					Contacts Not Included	Crimp Solder	5.08 mm	0.2 in	5.08 mm	0.2 in	Black
ITT Cannon, LLC TST36RB02Z	Automotive General Purpose	0.2 "	5.08 mm	Mounting Flange	Latch Holder	All		Circular	Through Hole	UL94 V-0	5.08 mm	0.2 in	Board to Board Cable	-40 C	105 ░C		36	Black	Solder		Nylon Polyamide (PA)	13.5 mm	0.531 in	Receptacle	Female Socket	5.7 mm	0.224 in										Flash	Gold
ITT Cannon, LLC TST36RB06Y	Automotive General Purpose	0.2 "	5.08 mm	Mounting Flange	Latch Holder	All		Circular	Through Hole	UL94 V-0	5.08 mm	0.2 in	Board to Board Cable	-40 C	105 ░C		36	Black	Solder		Nylon Polyamide (PA)	13.5 mm	0.531 in	Receptacle	Female Socket	5.7 mm	0.224 in											Gold

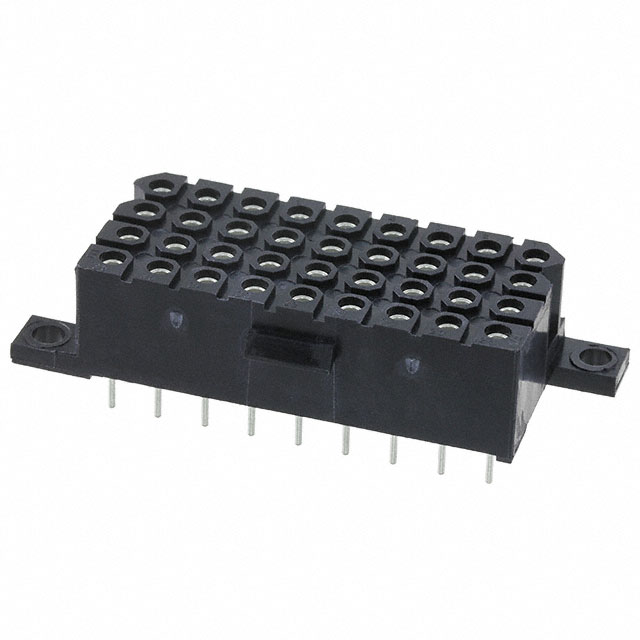

ITT Cannon, LLC TST36RB02T	Automotive General Purpose	0.2 "	5.08 mm	Mounting Flange	Latch Holder	All		Circular	Through Hole	UL94 V-0	5.08 mm	0.2 in	Board to Board Cable	-40 C	105 ░C		36	Black	Solder		Nylon Polyamide (PA)	13.5 mm	0.531 in	Receptacle	Female Socket	5.7 mm	0.224 in

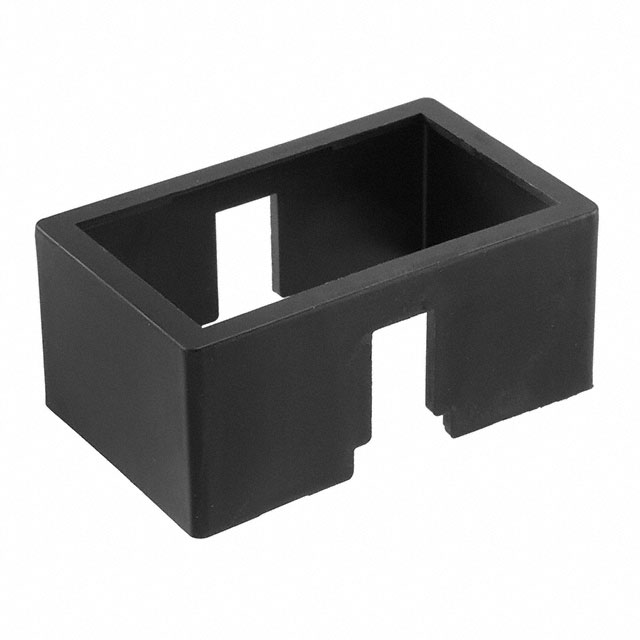

ITT Cannon, LLC TST36AS00																	36											Trident Rectangular Receptacles	Shroud
